Earth Fault Loop Impedance Explained: Zs, Ze & Testing
Every circuit breaker and RCD in your property relies on one principle to do its job: when a fault occurs, enough current must flow to trip the protective device quickly. That's where earth fault loop impedance explained in practical terms becomes genuinely useful, because if the impedance is too high, protective devices may not disconnect fast enough, leaving people exposed to electric shock.
Whether you're a landlord preparing for an EICR, a facilities manager responsible for commercial premises, or a homeowner trying to make sense of a test certificate, understanding Zs and Ze values gives you real insight into your installation's safety. At Electrical Testing London, our engineers measure and assess these values on every inspection we carry out across London and the South East, it's one of the most critical checks in any electrical report.
This article breaks down what earth fault loop impedance actually is, why Zs and Ze matter, how testing is carried out, and what the results mean for your property's compliance and safety.
Why earth fault loop impedance matters for safety
When a live conductor touches something it shouldn't, whether that's a metal casing, a damaged cable, or a wet surface, a fault current begins to flow back to the source through the earth path. The speed at which your protective device responds to that fault determines whether the installation is safe or dangerous. Earth fault loop impedance is the total resistance that fault current must overcome on its round trip from the source, through the fault, and back again. A lower impedance value means more current flows, which forces the protective device to trip within the required time limit.
How protective devices depend on fault current
Circuit breakers and fuses are designed to operate within specific disconnection times defined by BS 7671, the UK wiring regulations. For a final circuit in a standard TN system, that disconnection time is typically 0.4 seconds. To achieve that, the fault current must reach a high enough level to trigger the protective device within that window. If the earth fault loop impedance is too high, the fault current stays low, the breaker takes too long to disconnect, and anyone in contact with faulty equipment stays at risk far longer than regulations allow.
A high Zs value does not mean the circuit will never disconnect; it means the circuit may not disconnect quickly enough to prevent a serious injury.
What factors push impedance higher
Several elements combine to determine how much impedance the fault current encounters along its path. The supply network itself contributes resistance before the current even reaches your property. From there, the length and cross-sectional area of the circuit conductors play the biggest role, because longer runs and thinner cables both increase impedance considerably. The condition of connections matters just as much, since corroded terminals or loose joints add resistance that can push a borderline installation over the permitted limit. Age also plays a role, as older wiring systems tend to accumulate small resistance increases across multiple connection points that individually appear minor but together create a real compliance problem. Getting earth fault loop impedance explained properly by a qualified engineer, rather than simply noted on a certificate, gives you genuinely useful information about your installation's actual safety margin rather than a pass or fail alone.
Zs, Ze and the R1 plus R2 relationship
Three measurements combine to give you the total earth fault loop impedance (Zs) for any circuit. Understanding how each one contributes helps you make sense of the figures on your test certificate and identify where a high reading is actually coming from.
What Ze represents
Ze is the external impedance contributed by the supply network up to the origin of your installation, meaning the part of the fault loop that exists before your consumer unit. Your electricity supplier's cables, transformers, and earthing arrangements all feed into this figure. You have no direct control over Ze, though your engineer can measure it at the incoming terminals to establish a baseline for all subsequent calculations.
A Ze value that comes in higher than expected can indicate a supply network issue worth reporting to your network operator.

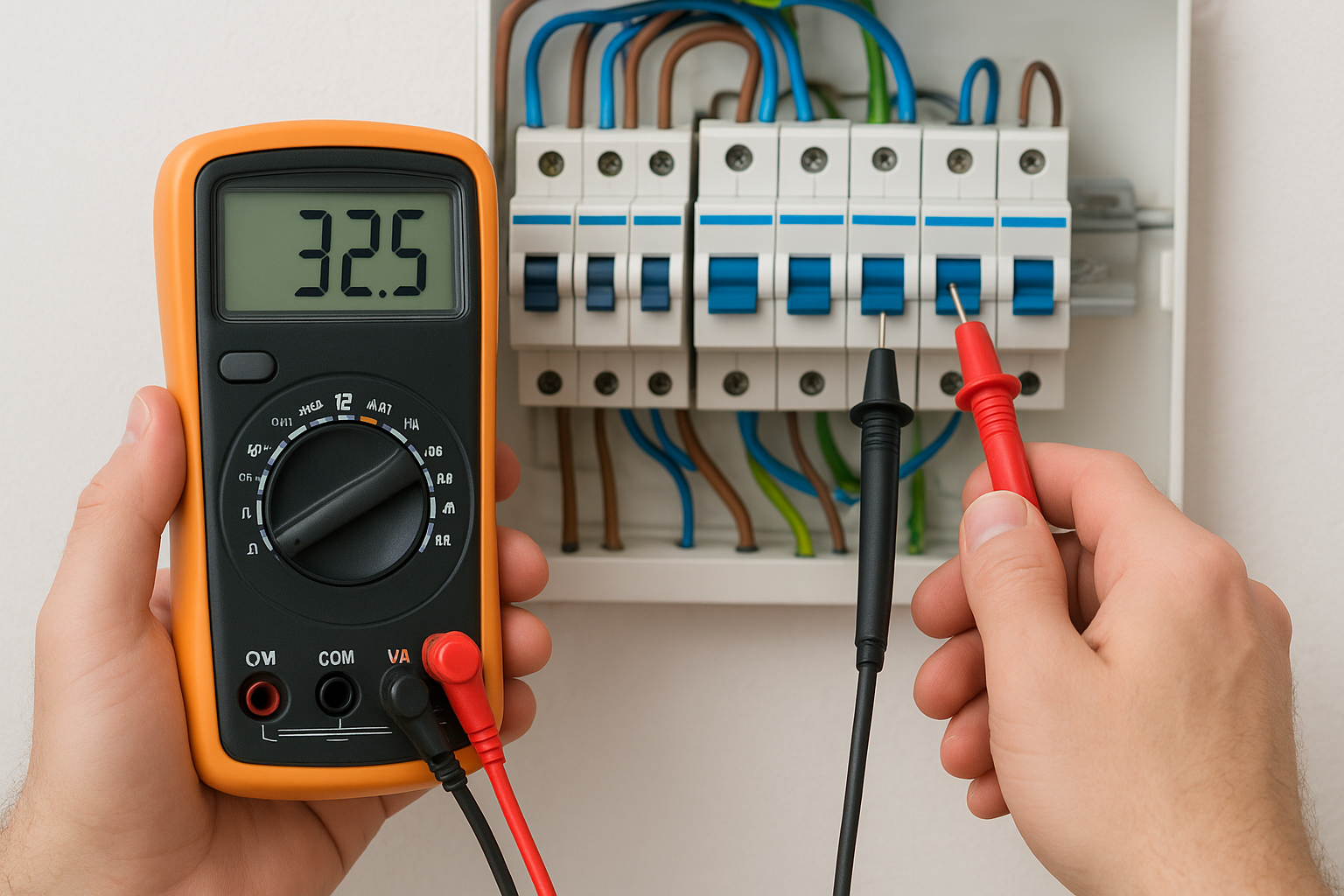

How R1 and R2 complete the picture
R1 represents the resistance of the live (phase) conductor, and R2 represents the resistance of the circuit protective conductor (CPC) for a given circuit run. Adding these two together gives you the resistance contribution from within your installation itself. The relationship that ties everything together is straightforward:

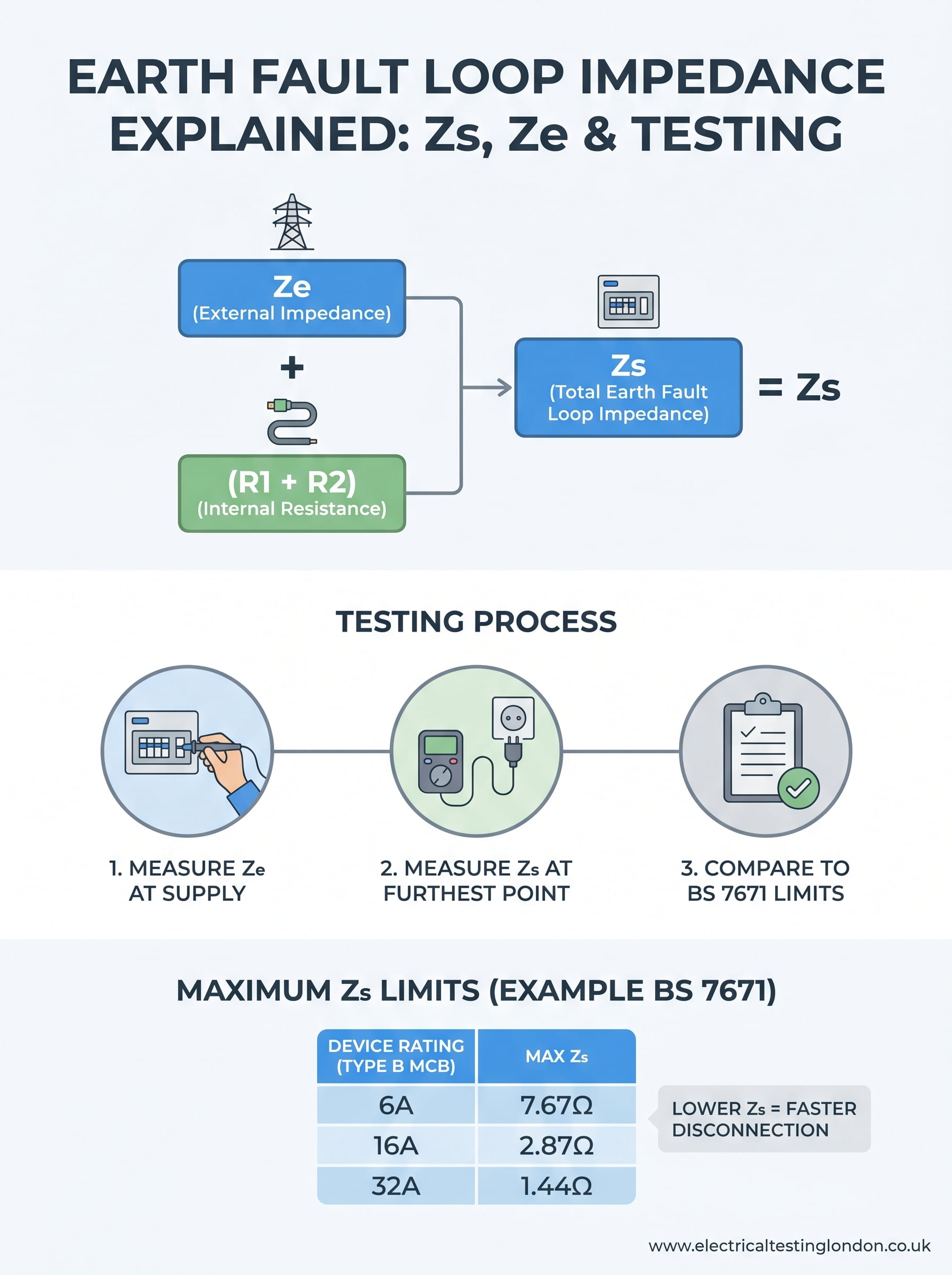

Zs = Ze + (R1 + R2)
Longer cable runs increase both R1 and R2, which directly raises the Zs value for that circuit. Thinner conductor cross-sections produce the same effect. Once your engineer has earth fault loop impedance explained and measured for each circuit, the Zs figures can be checked against the maximum permitted values in BS 7671 to confirm whether your installation meets the required disconnection time thresholds.

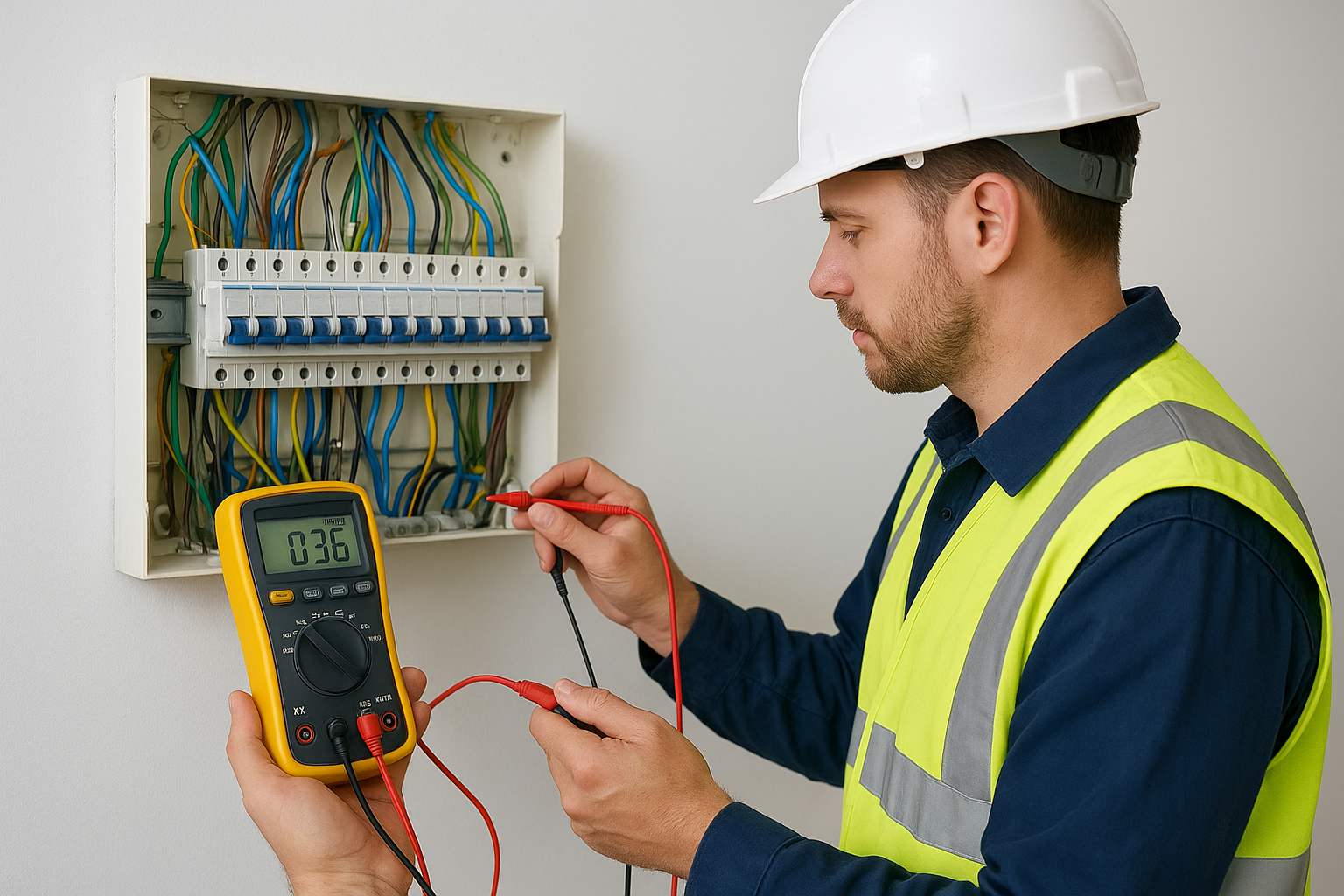

How earth fault loop impedance testing works on site
When an engineer carries out an EICR or a standalone earth fault loop impedance test at your property, the process follows a clear, documented sequence that covers both the external supply contribution and each individual circuit. Testing requires a calibrated loop impedance tester, which injects a small test current through the fault loop path and measures the total impedance in ohms.
Measuring Ze at the incoming supply
The engineer starts at the consumer unit or distribution board, measuring Ze at the incoming supply terminals before any internal wiring factors in. This reading establishes the foundation figure that all subsequent circuit calculations build on. Your supply network's earthing arrangement, whether TN-S, TN-C-S, or TT, determines what Ze range your engineer expects to find at this stage.
A higher-than-expected Ze reading here can flag a supply network issue before any individual circuit testing begins.
Testing individual circuits from the board
With Ze established, the engineer tests each circuit's Zs value by connecting the loop tester at the furthest accessible point on the run, typically the last socket outlet or luminaire. This location produces the highest possible impedance reading for that circuit because it captures the full conductor length, giving the most conservative figure to compare against limits.
Common circuit types tested during this process include:
- Ring final circuits serving socket outlets
- Lighting circuits
- Dedicated circuits for cookers and showers
- Sub-main circuits feeding secondary distribution boards
Recording results from each circuit extremity is what makes earth fault loop impedance explained through a thorough inspection considerably more valuable than a document that simply states pass or fail.
How to interpret results and maximum Zs limits
Once your engineer hands you a completed test schedule, you'll see a Zs value recorded for every circuit alongside a maximum permitted figure. The comparison between these two numbers tells you directly whether the circuit meets the disconnection time requirements set out in BS 7671. A measured Zs below the maximum limit means the fault current will reach the threshold needed to trip the protective device within the allowed time. A reading that exceeds the limit means the circuit fails, regardless of how small the excess is.
Maximum Zs values from BS 7671
BS 7671 publishes maximum Zs values for each protective device type and rating, and these figures vary depending on whether you have a Type B, Type C, or Type D circuit breaker, or a fuse to a specific standard. The table below shows common maximum Zs limits for Type B MCBs on a 230V TN system, which cover the majority of domestic and light commercial circuits:
| Protective device rating | Maximum Zs (Type B MCB) |
|---|---|
| 6A | 7.67Ω |
| 16A | 2.87Ω |
| 32A | 1.44Ω |
| 40A | 1.15Ω |
Your engineer should always compare measured values against the figures in the edition of BS 7671 current at the time of testing.
Understanding the safety margin
With earth fault loop impedance explained through actual site measurements, the gap between your measured Zs and the maximum permitted value represents your installation's safety margin. A result sitting close to the limit leaves very little tolerance for future degradation, such as corrosion at terminals or deterioration in cable condition, while a reading comfortably below it gives the installation room to age without immediately falling out of compliance.
What to do when Zs is too high
A failed Zs reading is not a reason to panic, but it does require a prompt, structured response before the installation can be certified as compliant. The specific remedial action depends entirely on where the excess impedance originates, which is why having earth fault loop impedance explained and traced to its source during the inspection matters so much. Your engineer's test schedule should point you toward the most likely cause before any remedial work begins.
Reduce conductor resistance on long runs
When an excessive Zs reading is caused by a long circuit run, the most effective fix is to increase the cross-sectional area of the circuit conductors. Upsizing cable reduces both R1 and R2, which directly lowers the Zs figure. In some cases, splitting a long ring circuit or adding a dedicated sub-circuit from a closer distribution point achieves the same result with less disruption to the existing installation.
Upsizing cable without rechecking the protective device rating can introduce a new compliance problem, so always confirm the overcurrent protection suits the new conductor size.
Inspect and repair connections
Loose terminals and corroded connection points are a common cause of borderline or failing Zs readings, particularly in older installations. Tightening connections, replacing degraded terminations, and cleaning oxidised earth conductors can bring a reading back within limits without any cable replacement at all. Your engineer should retest every affected circuit after remedial work to confirm the measured Zs now sits comfortably below the maximum permitted value for that protective device.
Next steps for safer electrics
With earth fault loop impedance explained from definition through to remedial action, you now have the context to read a test certificate critically rather than simply file it away. A Zs reading that sits close to its maximum permitted value is worth treating as a priority, not something to revisit at the next scheduled inspection. Understanding where your installation's safety margins actually sit puts you in a much stronger position when discussing findings with your engineer or deciding where to direct maintenance spending.
Whether your property needs a full EICR, targeted remedial work to bring failing circuits back into compliance, or straightforward reassurance that your existing installation is sound, acting on that information promptly is what makes electrical testing genuinely worthwhile. Qualified engineers with at least 10 years of experience cover London and the South East, so you can book confidently knowing the work meets current regulations. Get a quote for your electrical inspection and take the next step toward a compliant, safe installation.
