Earthing And Bonding Explained: UK Rules, Safety & Testing

Share on Facebook Share on Twitter Share on LinkedIn

section 1

Every year, faulty electrical installations cause fires, injuries, and deaths in UK properties, and in many cases, the root cause traces back to inadequate earthing or missing bonding connections. If you've searched for earthing and bonding explained, you're asking the right question. These two protective measures form the foundation of electrical safety in any home or commercial building, yet they're widely misunderstood, even by people responsible for maintaining properties.

Earthing provides a safe path for fault current to flow into the ground, while bonding connects exposed metalwork so that dangerous voltage differences can't build up between surfaces you might touch. Together, they're your first line of defence against electric shock. UK wiring regulations (BS 7671) set strict requirements for both, and non-compliance puts lives at risk and can invalidate insurance.

At Electrical Testing London, our engineers inspect earthing and bonding arrangements daily as part of Electrical Installation Condition Reports (EICRs) across London and the South East. This article draws on that hands-on experience to break down how earthing and bonding work, where they differ, what the regulations actually require, and how testing confirms your installation is safe. Whether you're a landlord, homeowner, or business owner, you'll finish with a solid understanding of what protects you, and what to do if it doesn't.

Earthing vs bonding and the key definitions

People use "earthing" and "bonding" interchangeably, but they describe two distinct protective mechanisms that work in different ways and serve different purposes. Getting earthing and bonding explained properly starts with understanding that both protect you from electric shock, but they do so by dealing with different fault scenarios. Earthing deals with faults that send current into metalwork, while bonding controls voltage differences between metal surfaces you might touch simultaneously.

What earthing means and how it works

Earthing connects the metalwork of your electrical installation, such as the outer casing of your consumer unit, the metal bodies of fixed appliances, and exposed conductive parts of wiring accessories, back to the general mass of the earth. The earth itself acts as a massive conductor at effectively zero potential, so when a fault forces current into metalwork, that current flows along the earth conductor and back to the supply neutral at the transformer.

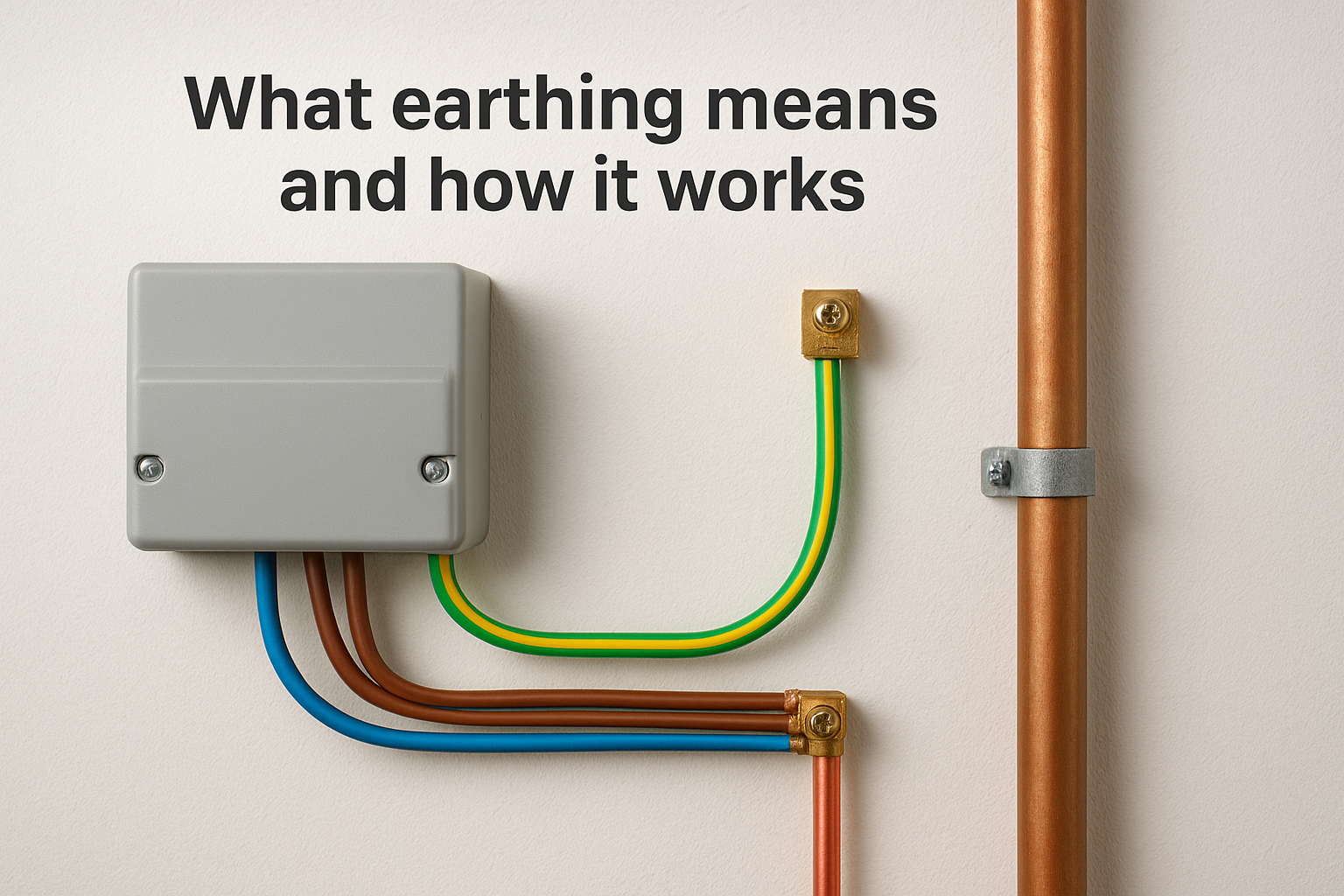

What earthing means and how it works

The point where the earth connection leaves your property is called the earthing terminal, which connects via the main earthing conductor to either the supply network or an electrode buried in the ground, depending on your system type. When this path is complete and has low resistance, a fault draws enough current to trip your circuit breaker or blow your fuse in milliseconds. Without a solid earth path, the fault current has nowhere safe to go, and the metalwork you touch becomes live.

A reliable earth path is what allows your protective devices, circuit breakers, and fuses to do their job when a fault occurs.

What bonding means and how it works

Bonding connects different metal services and structures inside and around your property to each other so they sit at the same electrical potential. The key concept here is potential: bonding does not necessarily send fault current to earth the way earthing does. Instead, it prevents a voltage difference from appearing between two surfaces that a person might touch at the same time.

Consider a scenario where a fault develops in a heating boiler and raises the temperature of the pipework to a higher voltage than the metal bath taps nearby. If those two surfaces are not bonded together, touching both at once completes a circuit through your body. Bonding removes that risk by connecting gas and water pipework, structural steelwork, and other extraneous conductive parts to each other and to the earthing system, keeping everything at the same potential.

Your installation contains two types of bonding. Main protective bonding links incoming metal services, such as gas and water pipes, to the earthing terminal near the consumer unit. Supplementary bonding deals with specific high-risk locations, most commonly bathrooms, where simultaneous contact with different metal surfaces poses a particular danger.

Key terms at a glance

Understanding a handful of terms makes the rest of this guide much easier to follow. The table below sets out the most important definitions:

Term Plain-language meaning
Earth conductor The green-and-yellow cable connecting metalwork to earth
Earthing terminal The main connection point where all earth cables meet in your installation
Extraneous conductive part Metal that is not part of the electrical system but can carry voltage, such as pipework
Exposed conductive part Metal that is part of the electrical system, such as an appliance casing
Main bonding conductor The cable connecting incoming services to the earthing terminal
Equipotential zone An area where all metalwork is held at the same potential through bonding

These definitions underpin the full earthing and bonding explained picture, and you will see them appear throughout this article and in any EICR report your electrician produces after an inspection.

Why earthing and bonding prevent shocks and fires

The physics of electric shock is straightforward: current flows through your body when you become part of a circuit between two points at different voltages. Getting earthing and bonding explained in terms of what actually happens during a fault makes it much clearer why both measures matter and why one without the other leaves real gaps in your protection.

How fault current creates a shock risk

When the insulation around a live conductor breaks down, current can reach the metal casing of an appliance or fitting. Without an earth path, that casing sits at a dangerous voltage. The moment you touch it while also contacting anything at earth potential, such as the floor or a nearby pipe, your body becomes the lowest-resistance route back to the source. Current passes through you, and depending on the magnitude and duration of exposure, the consequences range from a painful jolt to cardiac arrest.

A solid earthing path solves this by giving fault current a far easier route than through your body. That path carries enough current to trip the protective device within milliseconds, cutting off the supply before the fault causes serious harm. The lower the resistance of the earth conductor, the faster and more reliably your circuit breaker or fuse responds.

A high-resistance or broken earth path is one of the most dangerous hidden faults an EICR inspection looks for, precisely because it leaves protective devices unable to operate quickly enough.

How bonding stops shock between surfaces you touch simultaneously

Earthing alone cannot protect you in every situation. If two separate metal services, say a gas pipe and a water pipe entering your property, sit at slightly different electrical potentials, touching both at once creates a shock risk even if neither is "live" in the conventional sense. Bonding removes this by connecting those surfaces together and forcing them to share the same electrical potential. No potential difference means no current through your body.

Bathrooms carry the highest risk because wet skin dramatically reduces your body's resistance, and you are likely gripping or leaning against multiple metal surfaces at the same time. Supplementary bonding in these rooms connects the bath, exposed pipework, and accessible metal fittings into a single unified zone where no dangerous voltage difference can develop between surfaces you touch.

Why missing connections lead to fires

Fault current that cannot reach earth does not simply disappear. It finds alternative paths through materials not designed to carry it, including structural timbers, plaster, or water inside pipework. These paths generate heat through resistance. Sustained arcing or resistive heating in concealed voids can smoulder for hours before igniting surrounding materials, which is why an incomplete earth path is both a shock hazard and a fire risk at the same time.

A well-maintained earthing and bonding system removes these alternative paths by giving fault current one controlled, low-resistance route that trips your protective devices instantly, before heat can build up anywhere it should not be.

UK rules that govern earthing and bonding

The UK has a comprehensive regulatory framework that sets out exactly how earthing and bonding must be designed, installed, and maintained. These rules are not optional guidelines. They carry legal weight, and ignoring them exposes you to enforcement action, invalid insurance, and serious liability if someone is injured in your property.

BS 7671: the wiring regulations that set the standard

BS 7671, published by the British Standards Institution and technically titled "Requirements for Electrical Installations," is the core document governing every aspect of electrical installation in the UK. It draws on IEC 60364, the international standard on which most European wiring regulations are based, but includes specific UK requirements and is maintained by the Institution of Engineering and Technology (IET). When electricians refer to "the wiring regs," BS 7671 is what they mean.

Part 4 of BS 7671 covers protection against electric shock and sets the requirements for earthing arrangements and bonding conductors. It defines minimum conductor sizes, maximum impedance values for earth fault loops, and the specific rules for main protective bonding and supplementary bonding in special locations such as bathrooms. Every compliant installation in the UK, whether in a domestic property or a commercial building, must meet these requirements.

BS 7671 is updated periodically, and your installation must comply with the version that was current at the time it was built or last significantly altered, though upgrades may be required if a serious deficiency is found.

The 18th Edition and Amendment 2

The current version of BS 7671 is the 18th Edition, first published in 2018. Amendment 2, which came into force in March 2022, introduced updated requirements around surge protection, arc fault detection, and labelling, but the fundamental earthing and bonding requirements remain consistent with earlier editions. If your property was inspected before 2022 and was awarded a satisfactory EICR, your earthing and bonding arrangements were assessed against those rules at the time of inspection.

Building Regulations and landlord legal duties

Part P of the Building Regulations requires that electrical work in dwellings is designed and installed safely, which means compliance with BS 7671 in practice. For landlords in England, the Electrical Safety Standards in the Private Rented Sector (England) Regulations 2020 impose a legal duty to have the electrical installation inspected and tested at least every five years by a qualified electrician. Scotland, Wales, and Northern Ireland have equivalent legislation. These rules make understanding earthing and bonding explained more than an academic exercise for anyone who owns or manages a rental property.

UK earthing systems in homes and small businesses

Not all UK properties connect to earth in the same way. BS 7671 defines three distinct earthing system types that appear across homes and small businesses, and which one applies to your property shapes the fault loop impedance your installation must achieve, the conductor sizes your electrician specifies, and in some cases the protective devices your circuits require. Knowing your system type is a fundamental part of getting earthing and bonding explained in context, because it determines how your installation connects to the wider supply network.

TN-S: separate neutral and earth conductors

The TN-S system runs completely separate conductors for neutral and protective earth throughout the supply cable from the network to your property. Your earth terminal at the meter position connects to the metallic sheath or armour of the incoming supply cable, which carries the earth return path all the way back to the substation transformer. TN-S systems appear most often in older urban properties served by aged underground cables.

Cable sheath deterioration poses the main ongoing risk in a TN-S installation. If corrosion or physical damage breaks the sheath at any point along the supply cable, the earth path for your entire installation is compromised, often without any visible sign inside the property. Your electrician checks the earth fault loop impedance at the consumer unit to verify the path remains intact during any inspection.

TN-C-S: combined neutral and earth (PME)

TN-C-S, widely known as Protective Multiple Earthing (PME), is the most common earthing system in the UK. The supply network combines neutral and earth into a single Protective Earth Neutral (PEN) conductor up to the service cut-out at your property, where they separate into distinct conductors for use inside your installation. The network operator bonds the PEN conductor to earth at multiple points, keeping fault loop impedance low and earth potential stable.

If your property has a TN-C-S supply, your electrician must follow specific network operator guidance before connecting outbuildings or electric vehicle chargers, because PME arrangements carry particular restrictions at those locations.

TT: independent earth electrode systems

A TT system takes no earth connection from the supply network at all. Instead, a copper earth electrode rod driven into the ground outside your property provides the return path for fault current. Rural properties and those supplied by overhead cables without an earth terminal commonly use TT arrangements.

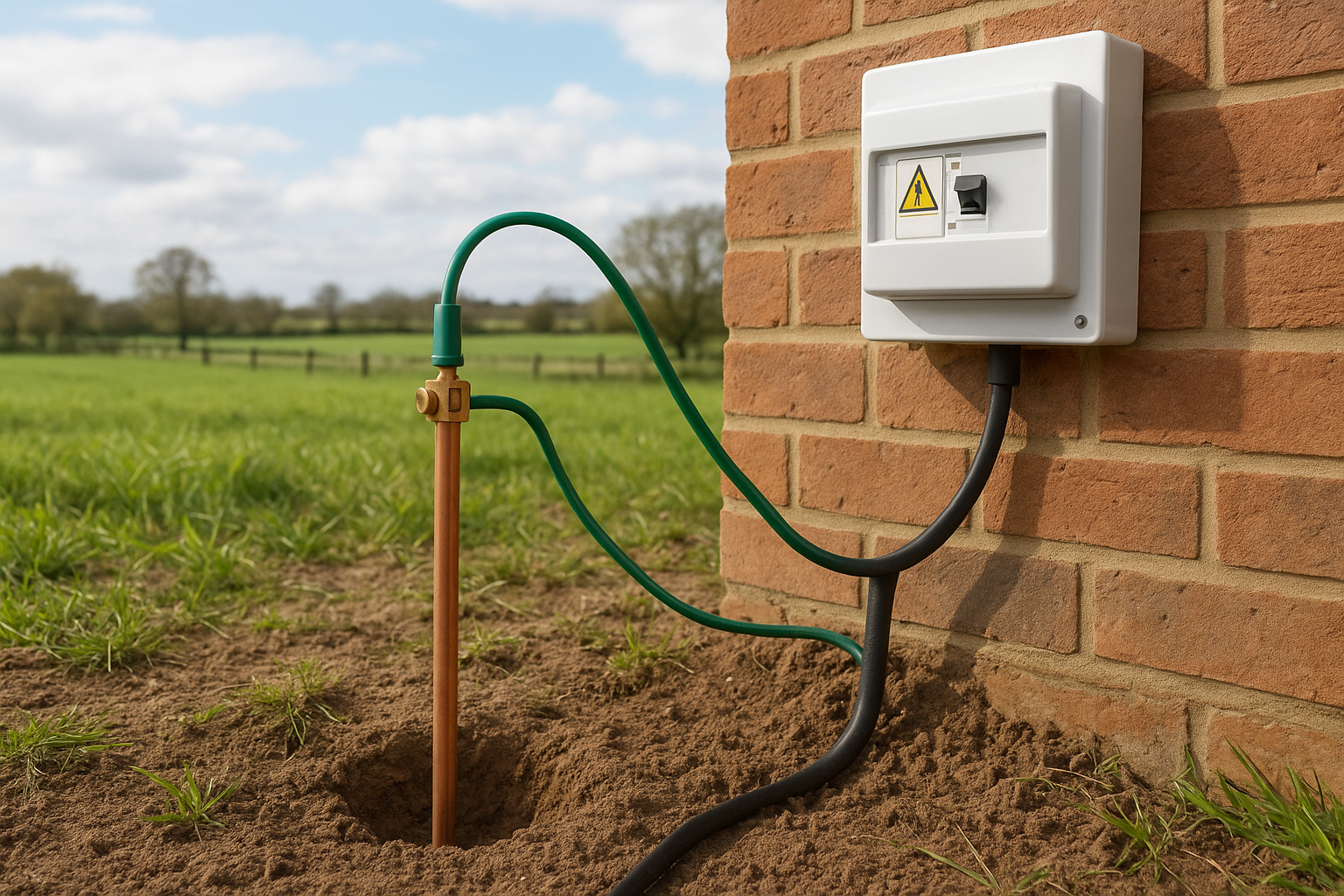

TT: independent earth electrode systems

Because soil resistance is always higher than a metallic conductor, RCDs are not optional in a TT installation. They are a regulatory requirement. The fault loop impedance in a TT system is typically too high for fuses or circuit breakers alone to disconnect quickly enough, so RCDs provide the rapid disconnection that keeps your installation safe.

Main bonding and supplementary bonding in real properties

Getting earthing and bonding explained in abstract terms is useful, but seeing how these connections actually appear in real buildings makes the rules tangible. Both forms of bonding serve the same goal, keeping metal surfaces at the same electrical potential, but they operate in different locations and address different risks. Your installation contains both, and each must meet specific requirements to pass an inspection.

Main protective bonding: where to find it and what it connects

Main protective bonding connects every incoming metal service to your installation's earthing terminal, typically located at or near the consumer unit. In most UK properties, this means a main bonding conductor runs from the gas meter and the water supply pipe to a single earthing terminal, securing all incoming metal services at earth potential before they branch out through the building.

The bonding connection must be made as close as practicable to the point where each service enters the property, ideally before any internal branch connections, to ensure the entire run of pipework inside the building sits within the protected zone.

BS 7671 specifies minimum conductor sizes for main bonding conductors based on your earthing system and the cross-sectional area of your main earthing conductor. In most domestic properties with a standard PME supply, a 10mm² copper conductor satisfies the minimum requirement. Your electrician should label each bonding connection clearly, and you will see those labels recorded on any EICR report produced for the property.

Supplementary bonding: why bathrooms need extra protection

Supplementary bonding applies in specific high-risk locations, with bathrooms being the most common example in domestic properties. The reason bathrooms receive additional attention is straightforward: wet skin significantly reduces your body's resistance, and the layout of a typical bathroom places you within simultaneous reach of multiple metal surfaces including the bath, shower tray, exposed pipework, and heated towel rails.

Supplementary bonding in a bathroom connects all those extraneous conductive parts together so that no voltage difference can develop between them while you are in contact with more than one surface at a time. Where your installation has been wired to more recent versions of BS 7671, RCDs on bathroom circuits can satisfy the protective requirement in place of physical supplementary bonding conductors, provided the earth fault loop impedance values meet the relevant limits. Your electrician will verify which approach applies to your installation and confirm that the protection is complete and compliant during any inspection.

How electricians test earthing and bonding during an EICR

An Electrical Installation Condition Report covers far more than a visual inspection. When your electrician carries out an EICR, they run a structured series of instrument tests that objectively measure whether your earthing and bonding arrangements meet the values required by BS 7671. Getting earthing and bonding explained through test results rather than theory gives you concrete evidence of whether your installation is actually safe, not just whether it looks acceptable.

Earth fault loop impedance testing

Your electrician measures earth fault loop impedance (Ze and Zs) using a loop impedance tester. Ze measures the impedance of the path from the supply to your earthing terminal and back through the network, while Zs measures the total loop impedance including the circuit conductors themselves. Both values must fall within the maximum limits set by BS 7671 for your protective devices to disconnect quickly enough during a fault.

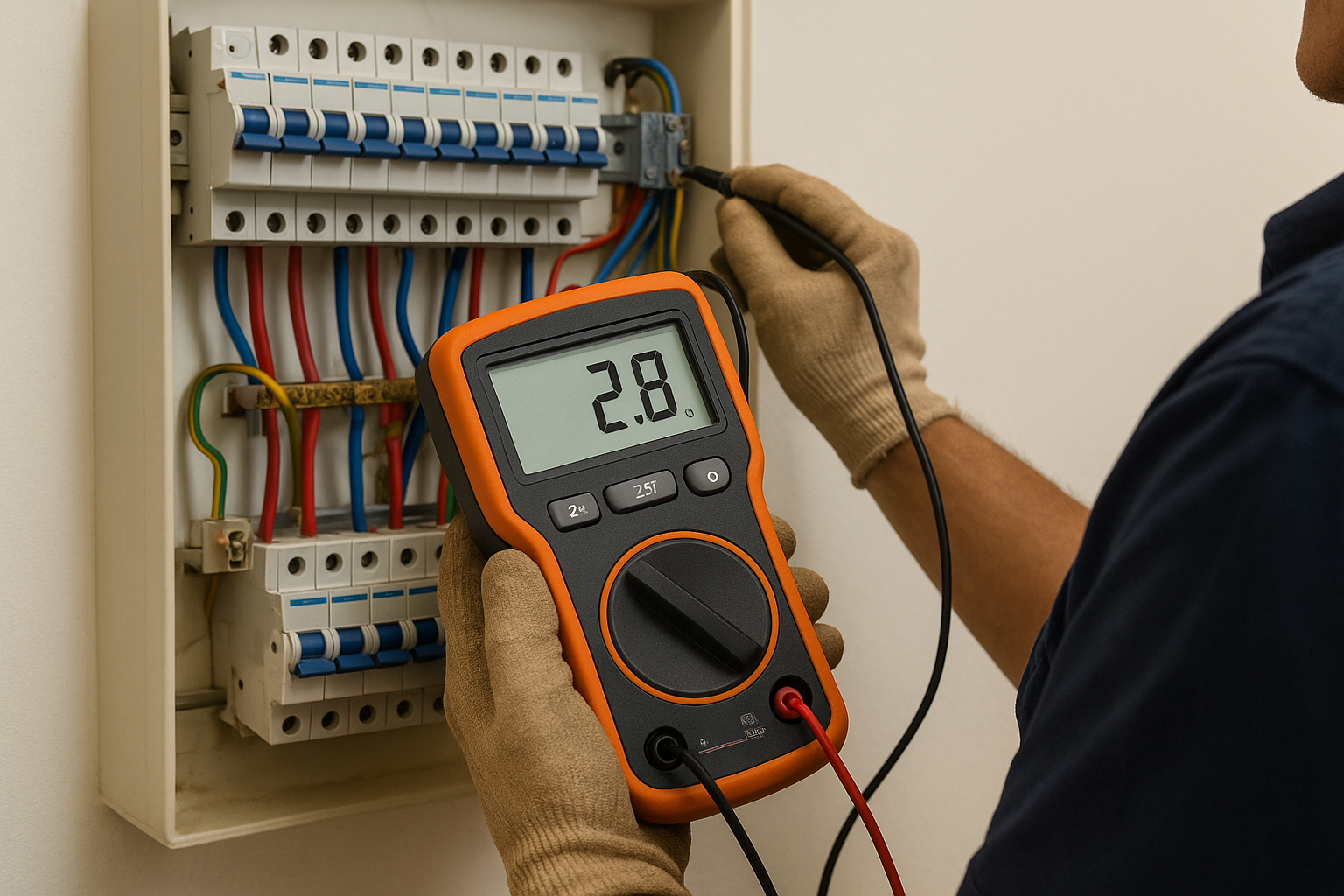

Earth fault loop impedance testing

A Zs value that exceeds the permitted maximum for your circuit breaker means the device will not trip fast enough under fault conditions, leaving exposed metalwork dangerously live for too long.

Your electrician records these measurements at the consumer unit and at individual circuits throughout the property. Any reading that exceeds the permitted maximum triggers an investigation into whether the earth conductor has high resistance, a poor connection, or physical damage somewhere along its route.

Continuity testing for bonding conductors

Continuity testing verifies that every bonding conductor forms a complete, low-resistance connection between the surfaces it links. Your electrician uses a low-resistance ohmmeter to inject a small current between two points and measure the resistance of the path between them. A result close to zero confirms an intact conductor with a solid connection at both ends. A high resistance reading or an open circuit indicates a broken conductor, a corroded clamp, or a missing connection that requires remedial work before the installation can be awarded a satisfactory report.

Your electrician checks main bonding conductors at the earthing terminal and at the connection point on each incoming service. For supplementary bonding in bathrooms or other special locations, they test between each pair of extraneous conductive parts within the zone to confirm no voltage difference can develop between them. All results are recorded on the EICR schedule of test results, giving you a documented baseline that future inspections can compare against to identify any deterioration over time.

What you can check yourself and when to call an electrician

The full earthing and bonding explained picture makes it clear that most of the critical testing requires specialist instruments and training. However, there are a handful of straightforward visual checks you can carry out yourself to spot obvious problems before they escalate, and knowing the difference between what you can assess and what requires a qualified electrician protects you from making a situation worse.

Visual checks any property owner can carry out

Start at your consumer unit. Check that the main earthing terminal has a visible green-and-yellow conductor firmly connected to it, with no visible signs of corrosion or physical damage to the insulation. Then look at the bonding clamps on your gas and water pipes, usually located within a metre of where those pipes enter the building. Each clamp should carry a label reading "Safety Electrical Connection, Do Not Remove," and the conductor attached should appear secure and undamaged.

Walk through your property and look for the following:

  • Missing or loose bonding clamps on visible pipework near the point where services enter the building
  • Green or white corrosion on earth conductor terminations at sockets or fittings
  • Damaged green-and-yellow insulation on any earth conductor you can access without removing covers
  • Heavily corroded metal surfaces where bonding conductors connect, which can raise resistance significantly

These checks give you a useful baseline and can flag visible deterioration between formal inspections, but they do not replace professional testing.

Signs that mean you need a qualified electrician

If your visual check reveals a missing clamp, a corroded terminal, or a damaged earth conductor, stop and book an inspection rather than attempting a repair yourself. An electrician needs to measure continuity and earth fault loop impedance to confirm whether a connection is genuinely safe, and those measurements require calibrated test equipment. Tightening a clamp without testing the conductor behind it tells you nothing about whether the earth path actually functions.

Any installation that has reached or exceeded its recommended inspection interval, typically five years for rental properties and ten years for owner-occupied homes, needs a new EICR regardless of whether visible faults have appeared.

You should also contact a qualified electrician immediately if you feel tingling or a mild shock when touching metal appliances or pipework, if circuit breakers trip repeatedly without an obvious cause, or if you notice a burning smell near the consumer unit. These symptoms can all indicate earthing faults that your protective devices are struggling to clear, and none of them improve without professional intervention.

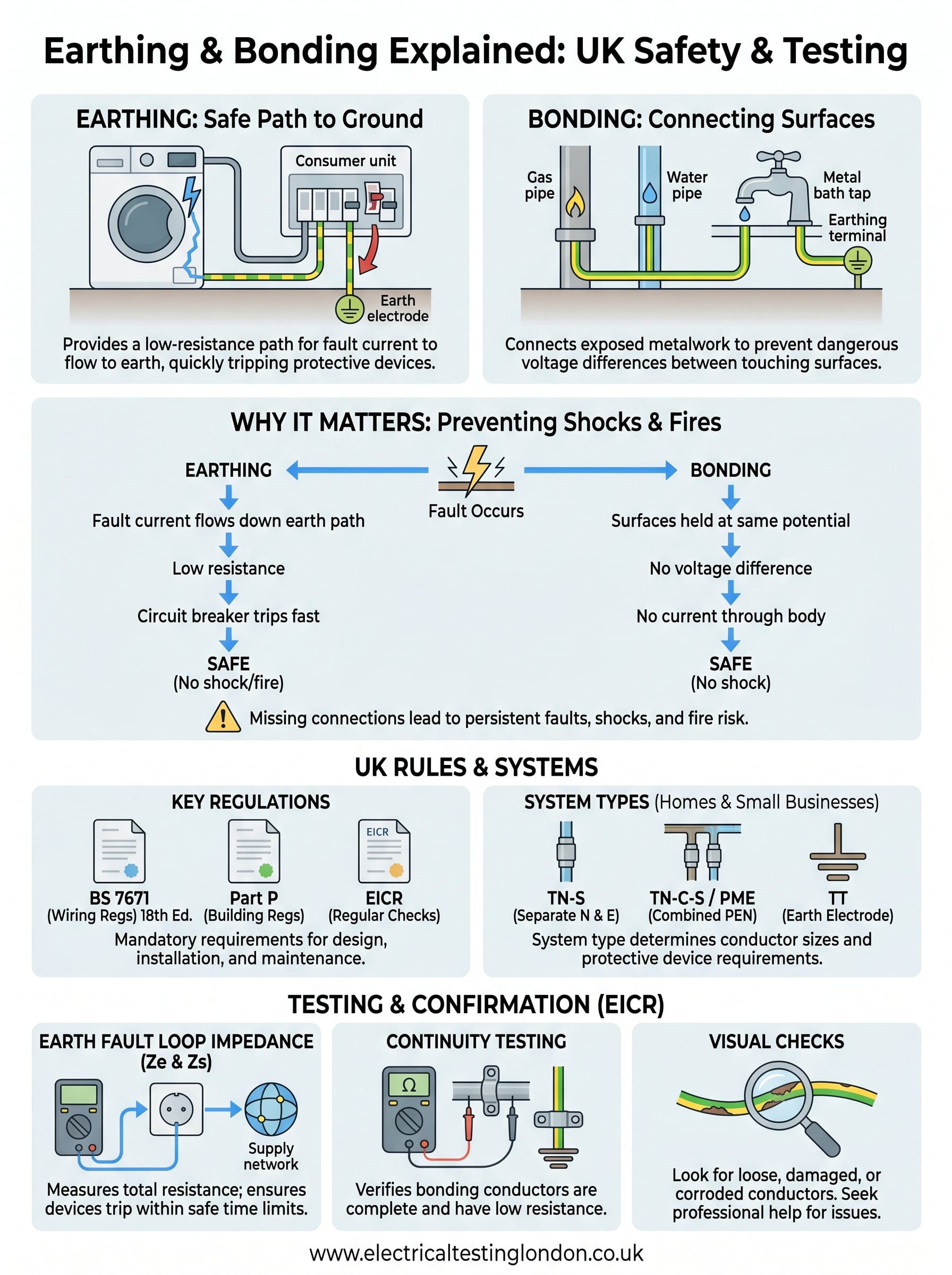

earthing and bonding explained infographic

Next steps to keep your installation safe

With earthing and bonding explained from first principles through to testing, you now have a complete picture of what protects your property and the people inside it. The next practical step is confirming that your installation actually meets those standards rather than assuming it does. Visual checks give you a starting point, but only instrument testing can verify that your earth fault loop impedance values and bonding continuity readings sit within the limits BS 7671 requires.

If your property has not had an EICR within the last five years for a rental or ten years for an owner-occupied home, that inspection is overdue. The same applies if you have carried out any extension work, noticed tripping breakers, or experienced any sensation of shock from appliances or metalwork. Our qualified engineers cover London and the South East and carry out EICRs alongside full remedial works where faults are found. Request a quote for your EICR and get your installation confirmed safe.
