Getting emergency lighting installed is only half the job. If the light output doesn't meet the emergency lighting lux level requirements set out in BS 5266, your system could fail a compliance test, or worse, fail the people relying on it during a real emergency. Lux levels dictate whether occupants can safely navigate escape routes, identify safety equipment, and carry out high-risk tasks when the normal power supply drops out.

BS 5266 is the British Standard that specifies exactly how much light your emergency luminaires need to deliver, where they need to deliver it, and for how long. The numbers vary depending on the space, an open-plan office floor has different requirements to a narrow stairwell or a room housing dangerous machinery. Understanding these thresholds is essential for landlords, facilities managers, and business owners who have a legal duty to maintain safe premises.

At Electrical Testing London, we carry out emergency lighting testing across London and the South East for both commercial and domestic properties. Our engineers see first-hand how often systems fall short of the required lux levels, sometimes because of poor design, sometimes because of neglected maintenance. This guide breaks down the specific lux level requirements under BS 5266, covering escape routes, open areas, staircases, and high-risk task zones, so you know exactly what standard your system needs to meet.

Why emergency lighting lux levels matter

When the mains power fails, your emergency lighting system has one job: give people enough light to get out safely. A luminaire that is technically on but producing insufficient light output is not doing that job. Lux is the unit used to measure illuminance at a surface, so when BS 5266 sets a lux level for an escape route, it is specifying the minimum light that must actually reach the floor or work surface, not just what the fitting claims to produce.

The link between lux levels and occupant safety

Human vision under low light is unreliable. Older occupants, those with visual impairments, and people in a state of panic all need more usable light than you might assume. Research into evacuation behaviour consistently shows that people slow down, make poor decisions, and miss exits or safety signs when illuminance drops below workable levels.

Emergency lighting lux level requirements exist not to satisfy paperwork, but to ensure that a real emergency does not become a fatality because people could not see where to go.

Your emergency lighting system needs to deliver light that reaches the specific horizontal and vertical planes people actually use during an evacuation. This is why BS 5266 specifies minimum values at floor level on escape routes and at a higher reference plane in open areas, rather than simply requiring a luminaire to be present.

What happens when lux levels fall short

If your system produces light but fails to meet the required lux thresholds, you face two distinct problems. The first is a compliance failure. During a formal emergency lighting test, an engineer measures actual illuminance at defined points. If those readings fall below the minimums in BS 5266, your system fails, and you carry legal liability for any harm that results from that deficiency.

Fixtures positioned incorrectly, lamps degraded through age, or luminaires installed without proper photometric calculations can all result in dark patches along an escape route. These gaps are invisible during routine visual checks, which is exactly why periodic lux level measurements using a calibrated lux meter form a required part of proper emergency lighting maintenance. Understanding the emergency lighting lux level requirements set out in BS 5266 is therefore a practical foundation for keeping your building and its occupants safe.

What BS 5266 says about minimum lux levels

BS 5266-1 is the primary British Standard governing emergency lighting in the UK, and it sets specific minimum illuminance values for different types of spaces within a building. The standard does not apply a single lux figure across an entire floor plan. Instead, it categorises areas by the risk level and function they serve, then assigns the appropriate minimum threshold to each zone.

The three core lux thresholds

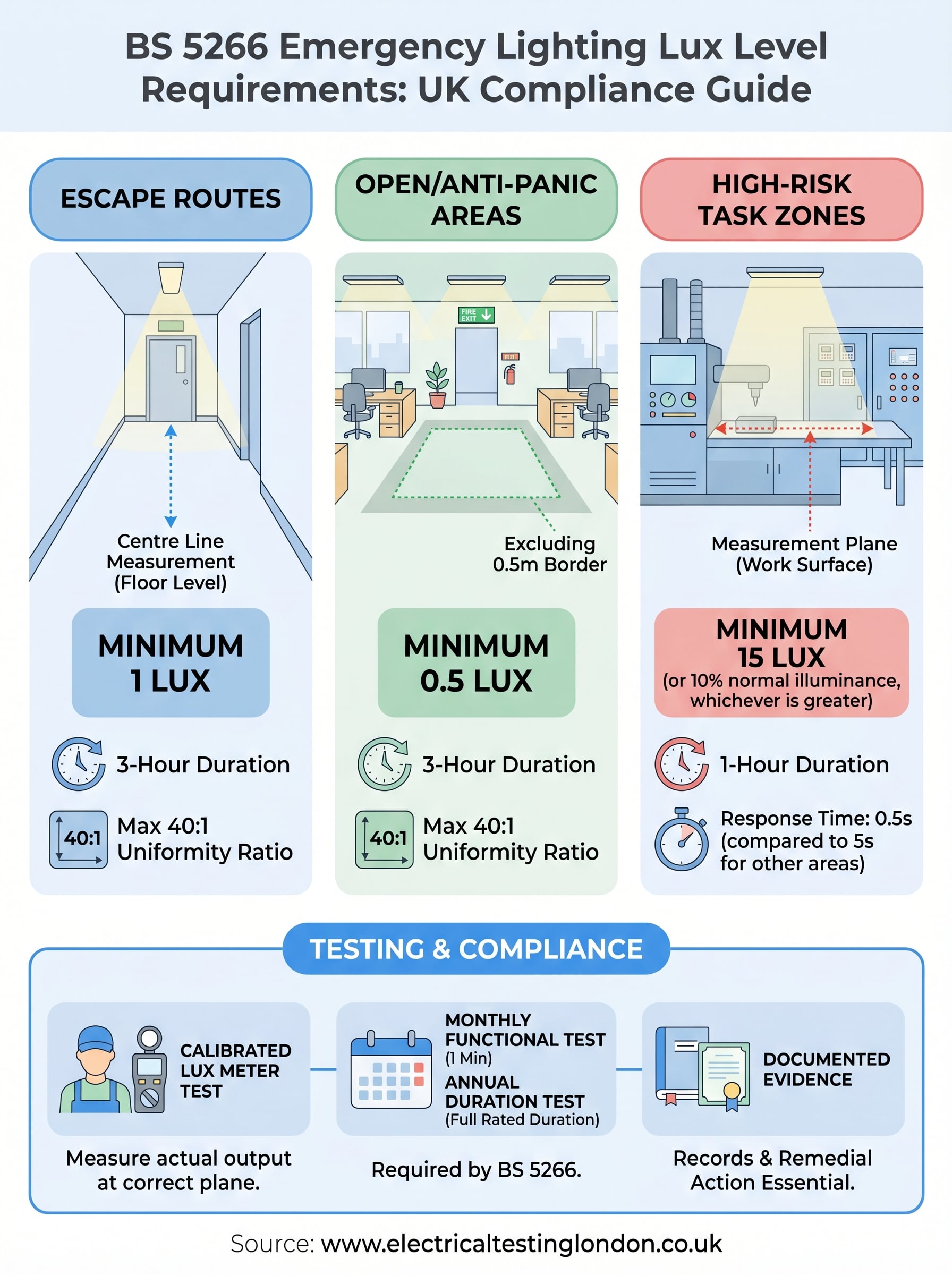

BS 5266 establishes three distinct illuminance categories that your system must meet. Escape routes require a minimum of 1 lux measured at floor level along the centre line of the route, with a maximum-to-minimum uniformity ratio of no worse than 40:1. Open areas designated for anti-panic lighting require a minimum of 0.5 lux across the core area, excluding a 0.5-metre border at the perimeter. High-risk task areas, where operations continue during a power failure, require a minimum of 10% of the normal maintained illuminance or 15 lux, whichever value is the greater.

These thresholds are the minimum acceptable standard under UK law, not a target to aim toward and fall slightly short of.

Your system must achieve these figures at the measurement plane, not at the luminaire housing. Photometric calculations carried out during the design and commissioning stage should account for lamp depreciation over time, surface reflectance values, and fitting positions to ensure that real-world lux readings consistently meet the emergency lighting lux level requirements throughout the luminaire's operational life. A system that just passes on day one can fall below the required threshold years later if maintenance is neglected.

Where to apply each lux level in real buildings

Knowing the numbers is useful, but applying them correctly to your specific building is what produces a compliant system. The type of space and the risk it presents during a power failure determines which lux threshold applies, and getting that categorisation wrong can leave areas dangerously under-lit or result in unnecessary over-specification elsewhere.

Escape routes and stairwells

Your corridors, hallways, and staircases fall into the escape route category and require a minimum of 1 lux measured at floor level along the centre line. Stairwells need particular attention because changes in floor level create a physical hazard that occupants cannot manage safely in low light. Emergency luminaires here need placement that eliminates dark spots at every step, not just at the top and bottom of the run.

Open areas and anti-panic zones

Large open spaces such as open-plan offices, retail floors, and assembly areas fall under the 0.5 lux anti-panic standard, applied across the core area. Occupants in these spaces need enough light to identify exits and move without panic, but the hazard level is generally lower than a narrow corridor or stairwell. You must exclude the 0.5-metre perimeter border from your measurement when verifying compliance.

Misclassifying a stairwell as a general open area, or missing a high-risk zone entirely, will produce a system that fails to meet the actual emergency lighting lux level requirements for that space.

High-risk task areas

Plant rooms, server rooms, and production areas where operations continue during a power failure require 15 lux or 10% of normal maintained illuminance, whichever figure is greater. Your design must account for the specific work surfaces and equipment positions in each of these spaces, not just the general floor level, since that is where the real safety risk sits.

How to measure, test and prove compliance

Measuring your system's output is the only way to confirm that your luminaires are actually delivering the minimum illuminance values required under BS 5266. You cannot rely on visual inspection alone, and you cannot rely on the manufacturer's data sheet figures either, since real-world lux levels depend on fitting position, ceiling height, surface reflectance, and lamp condition at the time of the test.

Using a calibrated lux meter correctly

Your engineer takes readings using a calibrated lux meter at the defined measurement plane for each zone type: floor level for escape routes and open areas, and at the relevant work surface height for high-risk task zones. Readings are recorded at multiple points along the route, not just one central spot, because BS 5266 also requires you to meet the 40:1 uniformity ratio, meaning the brightest point on the route cannot be more than 40 times the dimmest.

A single passing reading at the midpoint tells you nothing about dark spots further along the same corridor.

What your test records need to show

Competent evidence of compliance means a written log of actual lux readings, the positions where measurements were taken, the date of the test, and the name of the engineer who carried it out. This documentation is what you present to an enforcing authority, your insurer, or a prospective tenant if the emergency lighting lux level requirements are ever questioned.

Your test log should also record any luminaires that failed to reach the minimum threshold, the remedial action taken, and a follow-up reading confirming that the corrective work resolved the deficiency. Incomplete records carry the same legal risk as no records at all.

Duration, response times and ongoing maintenance

BS 5266 specifies lux levels and uniformity ratios, but it also sets out requirements for how quickly your system must reach those thresholds and how long it must sustain them. Getting the illuminance output right on day one is not enough if your system drops below the required level after 30 minutes of battery operation.

Response times and duration requirements

Your emergency luminaires must reach full rated output within 5 seconds of the mains supply failing for escape route and anti-panic lighting. High-risk task zone lighting must reach full output in 0.5 seconds, because operations in these areas cannot safely pause while lighting builds up.

Once activated, your system must sustain the required lux levels for a minimum of 1 hour in high-risk task areas and 3 hours on escape routes and anti-panic zones. These duration requirements exist because a real emergency can take time to resolve, and your system must keep working until occupants are safely out.

A system that meets the required lux levels at switch-on but shuts down after 45 minutes has already breached the emergency lighting lux level requirements under BS 5266.

Ongoing testing and maintenance obligations

Annual duration tests are a legal requirement under BS 5266. During this test, your engineer simulates a mains failure and runs the system on battery power for its full rated duration, confirming that lux levels remain adequate throughout. Monthly functional tests are shorter, typically around one minute, and confirm that each luminaire activates correctly.

Battery condition is the most common failure point in emergency lighting systems. Batteries degrade over time, and a unit that passed its last annual test may not sustain three hours of output by the following one. Replacing degraded batteries promptly keeps your system genuinely compliant rather than only compliant on paper.

Plain-English wrap-up and next step

BS 5266 sets clear, non-negotiable thresholds for emergency lighting lux levels: 1 lux on escape routes, 0.5 lux in open areas, and 15 lux or 10% of normal illuminance in high-risk task zones. Your system must reach those levels within the correct response time, sustain them for the required duration, and hold a documented record of every test to prove it. Getting any one of those elements wrong puts you on the wrong side of compliance.
