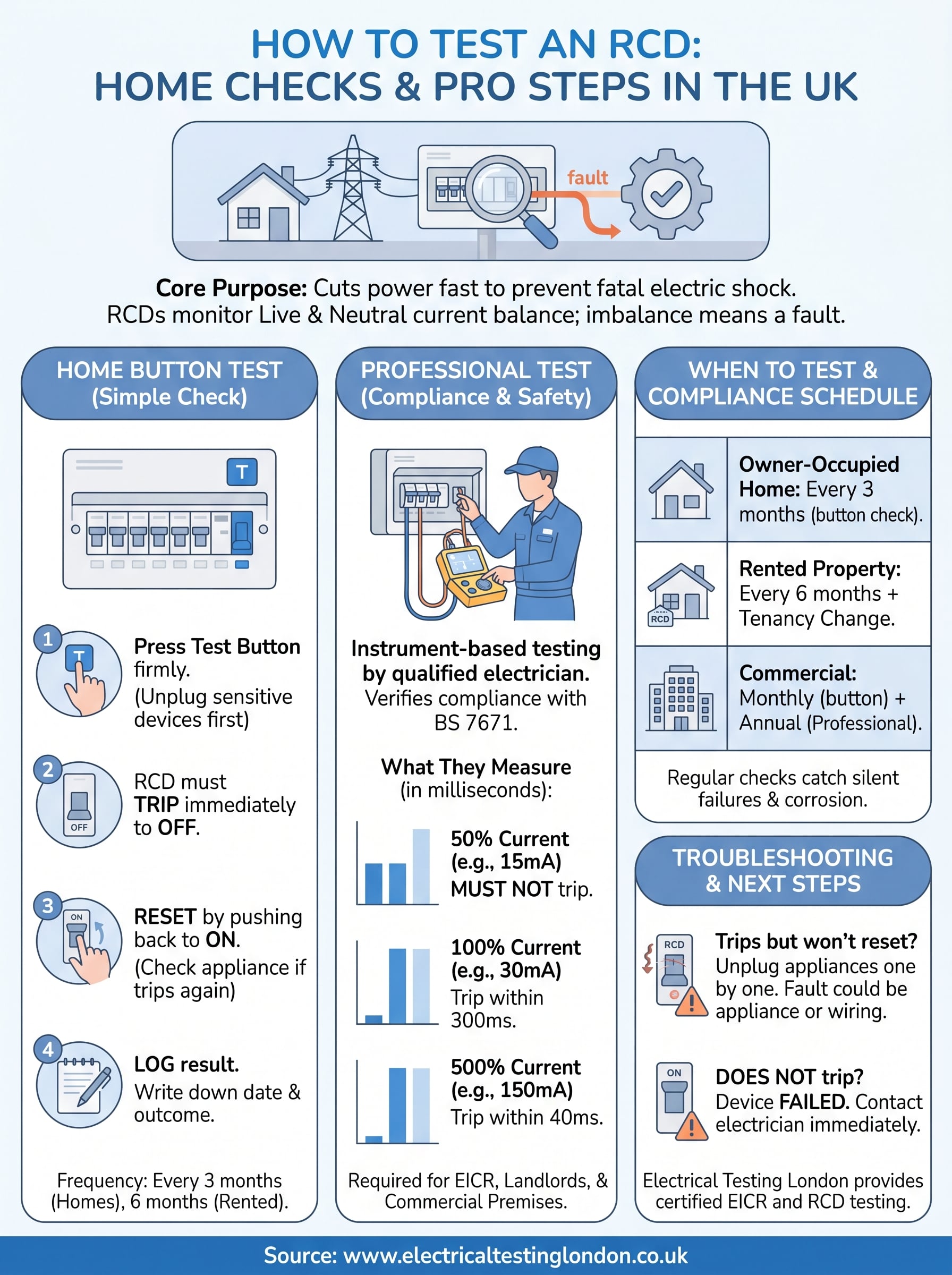

How To Test An RCD: Home Checks & Pro Steps In The UK

Every RCD (residual current device) in your property exists for one reason: to cut the power fast enough to prevent a fatal electric shock. But an RCD can fail silently, sitting in your consumer unit looking perfectly fine while offering zero protection. Knowing how to test an RCD yourself takes less than a minute, and it's something every homeowner, landlord, and business owner in the UK should be doing regularly.

There's a difference, though, between pressing the test button on your RCD at home and the detailed trip-time testing that a qualified electrician carries out with calibrated instruments. Both matter. The quick button test confirms basic function. The professional test confirms your RCD meets the disconnection times required by BS 7671, the standard that governs electrical installations across the UK.

At Electrical Testing London, our engineers test RCDs as part of every Electrical Installation Condition Report (EICR) we carry out across London and the South East. This guide walks you through both sides: the simple checks you can do yourself at home, and the professional testing procedures that ensure full compliance with current regulations.

What an RCD does and when to test it

An RCD monitors the current flowing through the live and neutral wires in a circuit simultaneously. Under normal conditions, those two values are equal. The moment they differ, it means current is leaking somewhere it should not be, usually through a person. A standard RCD trips in 30 milliseconds or less, which is fast enough to prevent a lethal shock before it causes permanent harm.

How an RCD protects you

Your RCD sits in your consumer unit (fuse box) or is built into a socket, and it watches the electrical flow continuously. When a fault current reaches 30 milliamps (mA), the device detects the imbalance and disconnects the circuit immediately. That 30 mA threshold is significant because research shows currents above this level can cause ventricular fibrillation, a potentially fatal disruption to heart rhythm.

The 30 mA trip threshold defined in BS 7671 is not arbitrary. It is the value identified as the maximum that still allows a realistic margin of safety for a person in contact with a live conductor.

RCDs are not the same as circuit breakers or fuses. A fuse or circuit breaker protects against overloads and short circuits, while an RCD protects specifically against earth fault currents. Many UK consumer units now include RCBOs (residual current circuit breakers with overcurrent protection), which combine both functions in one device, but the RCD testing principle remains identical.

When you should test your RCD

Most people only think about how to test an RCD after something goes wrong, which defeats the purpose entirely. The Electricity at Work Regulations 1989 do not prescribe a single fixed domestic testing interval, but recognised industry guidance consistently points to regular checks as the minimum reasonable standard for any property type.

Here is a practical testing schedule based on common UK guidance:

Your RCD can develop mechanical faults or contact corrosion over time without tripping at all. Regular testing catches these failures before they turn dangerous, which is precisely why both the simple button check and the full professional measurement are worth understanding in detail.

Step 1. Do the safe test button check

The built-in test button on every RCD is there for exactly this purpose: letting you confirm the device can still detect a fault and disconnect the circuit. This is the simplest way to learn how to test an RCD without any tools or electrical training. The whole process takes under a minute, but you need to follow the correct order to do it safely and avoid damaging anything connected to your circuits.

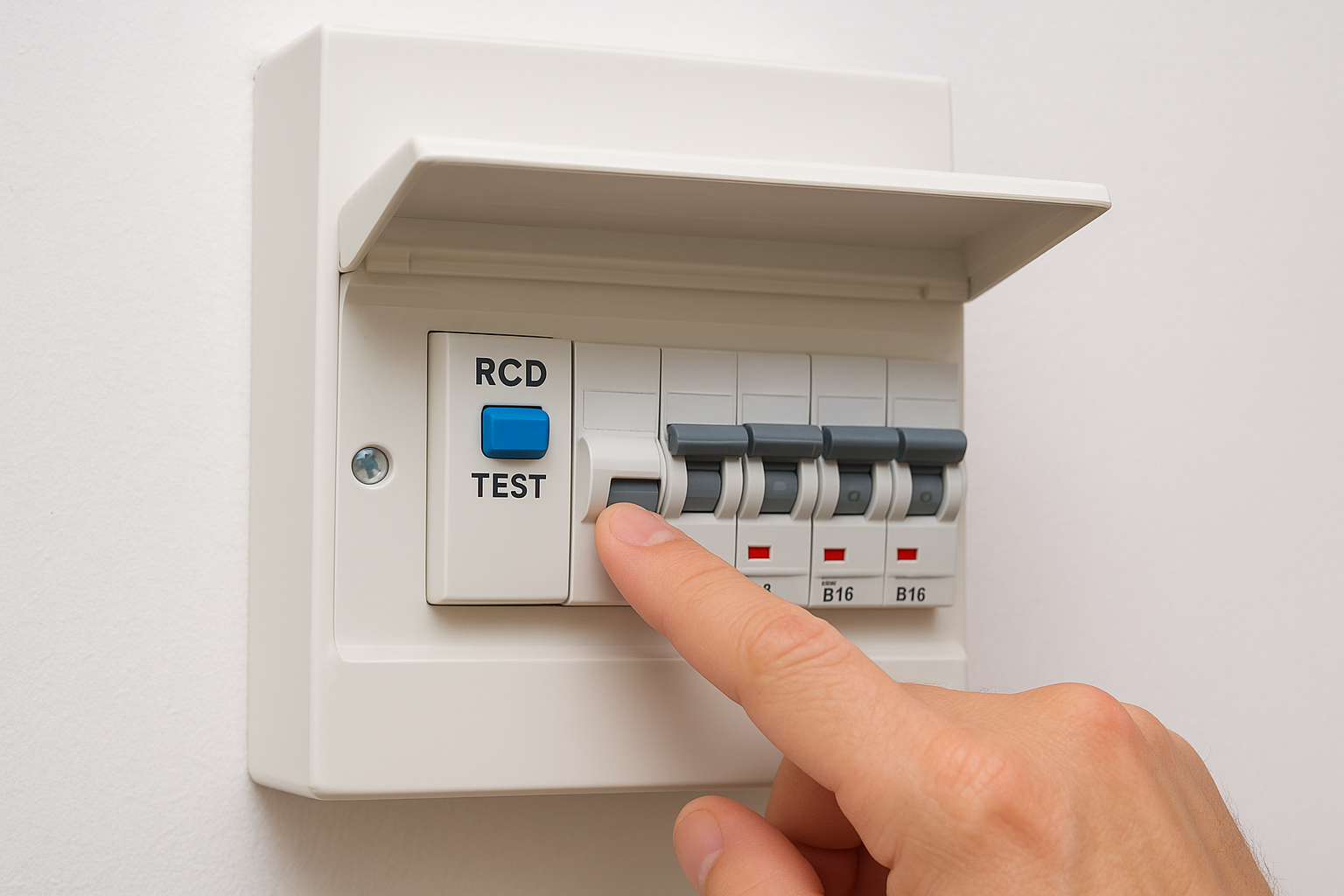

Locate your RCD in the consumer unit

Your consumer unit (fuse box) is usually mounted near your electricity meter, often in a hallway, kitchen, or under the stairs. Open the cover and look for switches labelled "RCD" or carrying a test button, typically marked with a "T" symbol. These are distinct from your standard circuit breakers, which are narrower and have no test button.

Some properties have multiple RCDs covering different circuit groups, such as one for upstairs sockets and another for lighting circuits. Identify each one before you start, so you know exactly which areas of the property will lose power during the test sequence.

If your consumer unit has no visible RCD or test button anywhere on the board, contact a qualified electrician. Your installation may be outdated and could need a full EICR to assess its condition.

Press and release the test button

Before you press anything, switch off or unplug sensitive equipment such as computers, televisions, and anything actively saving data. When the RCD trips, power cuts instantly with no warning.

Follow these steps in order:

1. Press the test button firmly and hold it for one to two seconds. The RCD should trip immediately, switching to the off or tripped position.
2. Confirm the switch has visibly moved. If it stays in the on position, the RCD has failed the test.
3. Do not press the button repeatedly. Proceed to Step 2 to reset and record the result.

The test button works by sending a small artificial fault current through the device's internal circuitry. A functioning RCD responds to this exactly as it would to a real earth fault.

Step 2. Reset safely and record what happened

Once your RCD has tripped during the test, the circuit it covers will be completely dead. This is the expected result, and it confirms the device responded correctly to the artificial fault signal. Before you restore power, switch off or unplug anything connected to that circuit to prevent unexpected restarts and protect sensitive equipment from a sudden return of power.

How to reset the RCD

To reset the device, push the switch firmly back to the on position. On most consumer units, the switch sits in a halfway position after tripping rather than dropping fully to off, so push it all the way down to off first, then push it back up to on. A working RCD resets cleanly and holds its position without resistance or hesitation. If it trips again immediately with nothing connected to the circuit, move on to Step 3 to troubleshoot the fault.

If your RCD refuses to reset or trips again instantly with no load connected, stop using that circuit and call a qualified electrician before continuing.

Log the result straight away

Recording what happens each time is simple but easy to skip, and it carries real weight over time. A written log gives you a clear history of the device's behaviour, which is useful during an EICR inspection and for demonstrating due diligence as a landlord or business owner if a safety question ever arises.

Use this basic template after every test:

Keep this log near your consumer unit or in a dedicated property file. When a professional carries out a full test to confirm how to test an RCD meets compliance requirements, their written report covers that date automatically.

Step 3. Troubleshoot common test failures

A failed test result does not always mean your RCD needs immediate replacement, but it does mean you need to act quickly. There are two distinct failure modes when learning how to test an RCD: the device trips correctly but refuses to reset, and the device does not trip at all when you press the test button. Each points to a different underlying problem.

RCD trips but will not reset

If your RCD trips during the test but will not hold the on position when you push it back up, a fault is almost certainly present on the circuit it protects. The device is doing its job correctly by refusing to restore power to a faulty circuit.

Work through this sequence before calling an electrician:

1. Unplug every appliance connected to the affected circuit.
2. Switch off all lights on that circuit at the wall.
3. Attempt to reset the RCD with nothing connected.
4. If it holds, plug appliances back in one at a time to identify which one causes the trip.
5. If it still will not reset with nothing connected, the fault is in the fixed wiring itself. Stop and call a qualified electrician immediately.

Never force an RCD to stay in the on position or use tape to hold it there. That removes the only protection between you and a live fault.

RCD does not trip when tested

A device that stays on when you press the test button has failed. This is the more serious outcome because it means the RCD cannot protect anyone on that circuit. The mechanical or electronic components inside have degraded to the point where the device no longer responds to a fault signal.

Contact a qualified electrician to inspect and replace the unit before you use that circuit again.

Step 4. Run full RCD tests for UK compliance

The button test you run at home confirms the RCD mechanism works, but it does not tell you how quickly the device trips or whether it meets the disconnection times set out in BS 7671. For rental properties, commercial premises, and any site requiring a formal EICR, a qualified electrician carries out instrument-based testing using a calibrated RCD tester. This is the only way to confirm your installation meets current UK electrical safety standards.

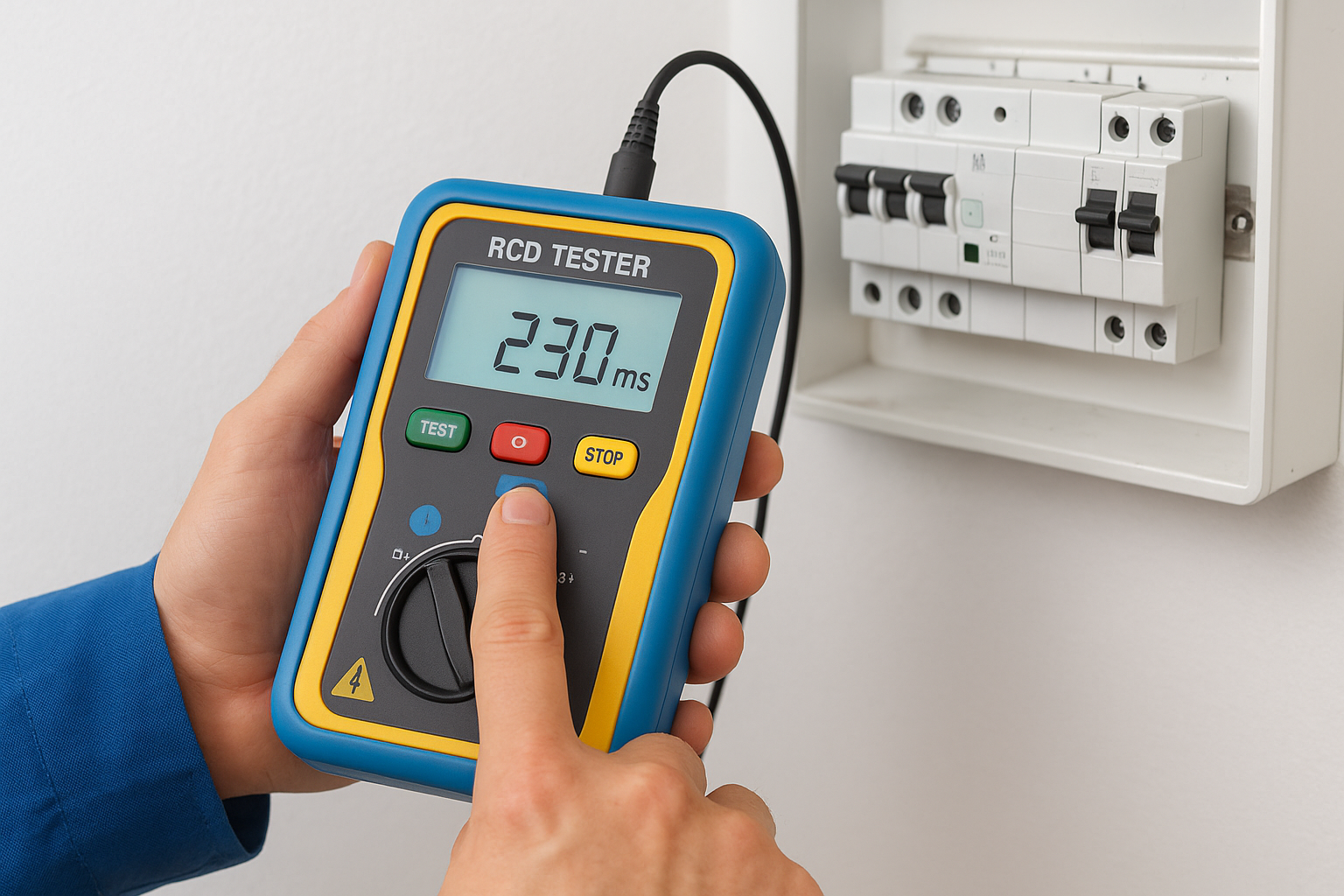

What the electrician measures

A professional uses a dedicated RCD tester to apply precise fault current values through the device and record the exact trip time in milliseconds. The tester runs the measurement at different current levels: typically 50%, 100%, and 500% of the rated tripping current. Running tests at half the rated current checks that the device does not trip unnecessarily under marginal conditions, while the 500% test confirms it disconnects fast enough to prevent injury under a high-fault scenario.

For a standard 30 mA RCD, the 100% test applies 30 mA of fault current, and the device must disconnect in under 300 milliseconds to pass BS 7671 requirements.

What a passing result looks like

Understanding how to test an RCD at the professional level means knowing the exact thresholds your device must meet. The table below shows the pass criteria for a standard 30 mA RCD under BS 7671:

Your electrician records each result in the EICR documentation, giving you a verifiable compliance record that satisfies regulatory requirements for landlords and commercial operators alike.

If you need a compliant test report

Knowing how to test an RCD yourself handles the routine checks, but a formal compliance report requires instrument-based testing carried out by a qualified electrician. If you are a landlord, you need a valid EICR every five years under the Electrical Safety Standards in the Private Rented Sector (England) Regulations 2020. Commercial operators face similar obligations, and an informal button-press record does not satisfy either requirement.

Electrical Testing London carries out full RCD testing and EICR inspections across London and the South East, with engineers holding at least ten years of hands-on experience. Every test we run is documented against BS 7671 and produces a signed, verifiable report you can use to satisfy your legal duties and demonstrate due diligence to tenants, insurers, or local authorities.

If your property is due a formal inspection, request a quote for an EICR in London and we will get back to you promptly.
