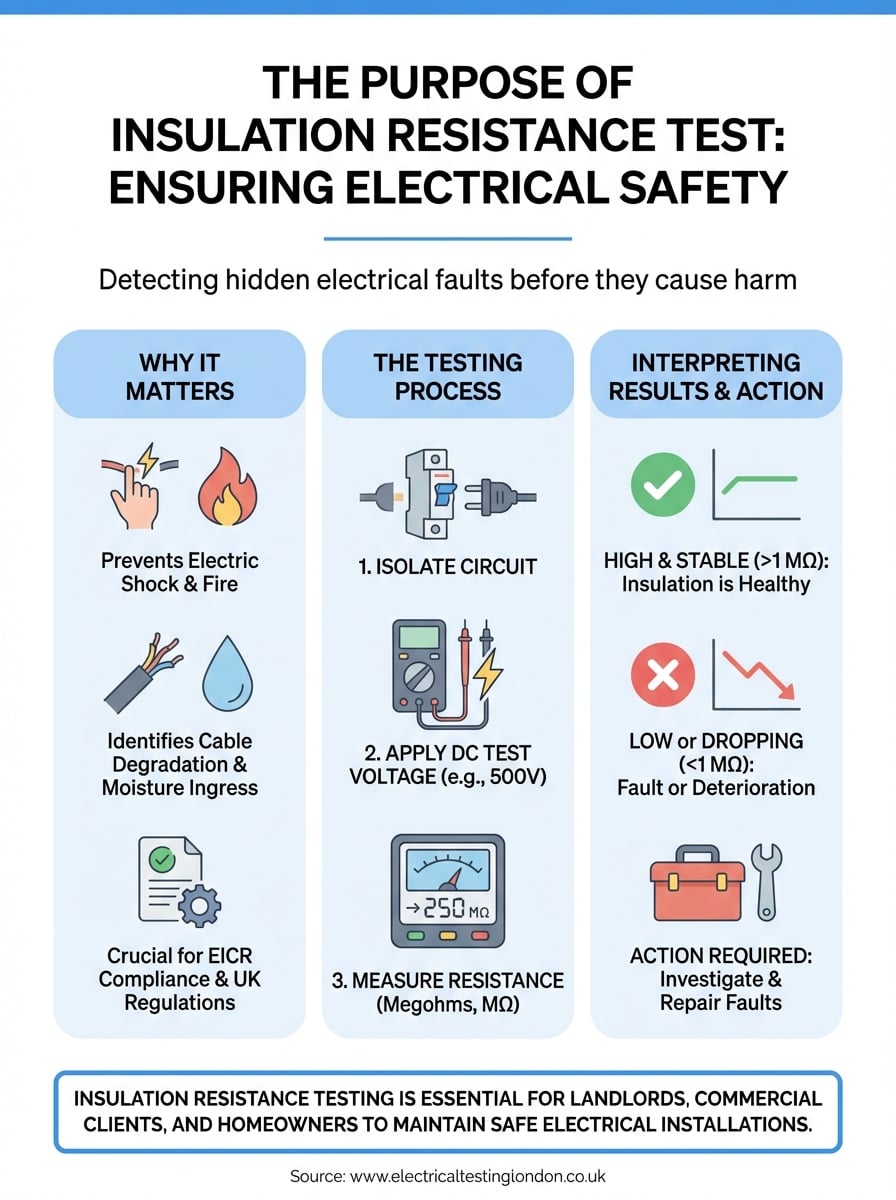

Purpose Of Insulation Resistance Test: Why It Matters

When insulation around conductors weakens, current can leak along paths it was never meant to follow. This leakage current may be tiny at first, but left unchecked, it escalates. An insulation resistance test measures how effectively the insulation contains current flow, giving engineers a clear, quantifiable reading of its condition. If values fall below acceptable thresholds, that's a direct signal something needs attention, whether it's a single cable run in a flat or an entire distribution system in a commercial building.

At Electrical Testing London, our engineers carry out insulation resistance testing as part of broader electrical inspections, including EICRs and remedial works across London and the South East. It's a test we perform daily, and one we consider non-negotiable for electrical safety. This article explains exactly what insulation resistance testing achieves, how it works, why it matters for landlords, homeowners, and commercial clients, and what the results actually tell you about the condition of your installation.

Why insulation resistance testing matters for safety

Electrical safety depends on one fundamental principle: current must flow only where you intend it to flow. When insulation fails, that control breaks down. Degraded or damaged insulation allows current to escape from conductors and travel through unintended paths, including metal enclosures, structural elements, and human bodies. The purpose of insulation resistance test is rooted directly in this principle: it gives engineers a measurable way to confirm that insulation is still doing its job before any harm occurs.

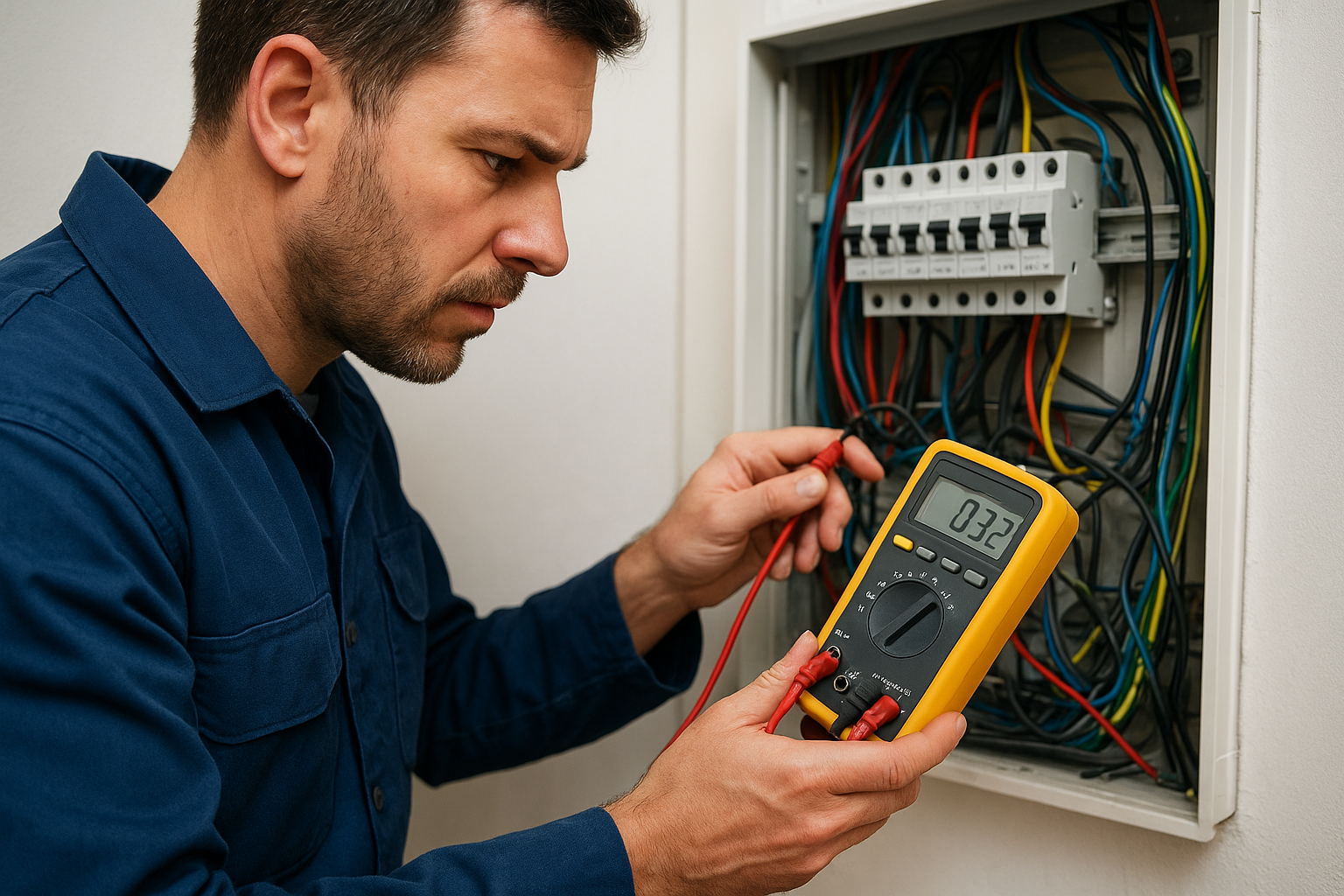

The direct link between insulation failure and serious harm

When insulation breaks down, the consequences can be severe. Electric shock is the most immediate risk. If a person touches a surface that has become live due to leaking current, the result can range from a painful jolt to a fatal injury, depending on the voltage, duration of contact, and the individual's circumstances. Children, elderly people, and anyone in a wet environment face a higher level of risk.

Fire is the other major hazard. Leakage current generates heat, and when that heat builds up in a confined space such as a wall cavity, a cable conduit, or behind a panel, it can ignite surrounding materials. Electrical fires are particularly dangerous because they often start in hidden locations and spread significantly before anyone detects them. According to the UK government's fire statistics, electrical faults remain a leading cause of accidental dwelling fires in England.

A measurable insulation resistance reading gives you objective evidence of a cable or component's condition, which means you are not relying on guesswork or visual inspection alone.

Why insulation faults are so difficult to spot without testing

Insulation does not announce its own failure. Visual inspection alone will not reveal a cable whose insulation has softened due to heat exposure, absorbed moisture due to a minor leak, or cracked due to repeated mechanical stress. The damage happens inside walls, under floors, inside equipment enclosures, and along cable runs that are simply not accessible without dismantling the installation.

Gradual degradation is the most dangerous scenario because it happens slowly. Resistance values drop incrementally over months or years. The installation continues to function normally, appliances work, lights switch on, and nothing appears wrong. But underneath the surface, the margin between safe operation and a fault event keeps shrinking. Regular insulation resistance testing is the only reliable way to track this decline and catch it before it reaches a critical point.

Why landlords and commercial clients face greater exposure

If you are a landlord, the condition of your electrical installation is not just a safety matter. The Electrical Safety Standards in the Private Rented Sector (England) Regulations 2020 require landlords to carry out electrical inspections at least every five years and to take action on any faults identified. Insulation resistance testing forms part of a full EICR, and if faults are found and not remedied, you carry legal liability for any resulting harm to tenants.

Commercial property owners and businesses face similar obligations under health and safety legislation. The Electricity at Work Regulations 1989 require that electrical systems are maintained so that danger is prevented, and insulation resistance testing provides the documentary evidence that you have taken a systematic, professional approach to that obligation. It also protects your equipment, reduces the risk of unplanned downtime, and demonstrates due diligence to insurers or enforcement authorities if a question ever arises about the condition of your installation. For any property type, the cost of regular testing is a small fraction of what you might face after an incident caused by an undetected insulation fault.

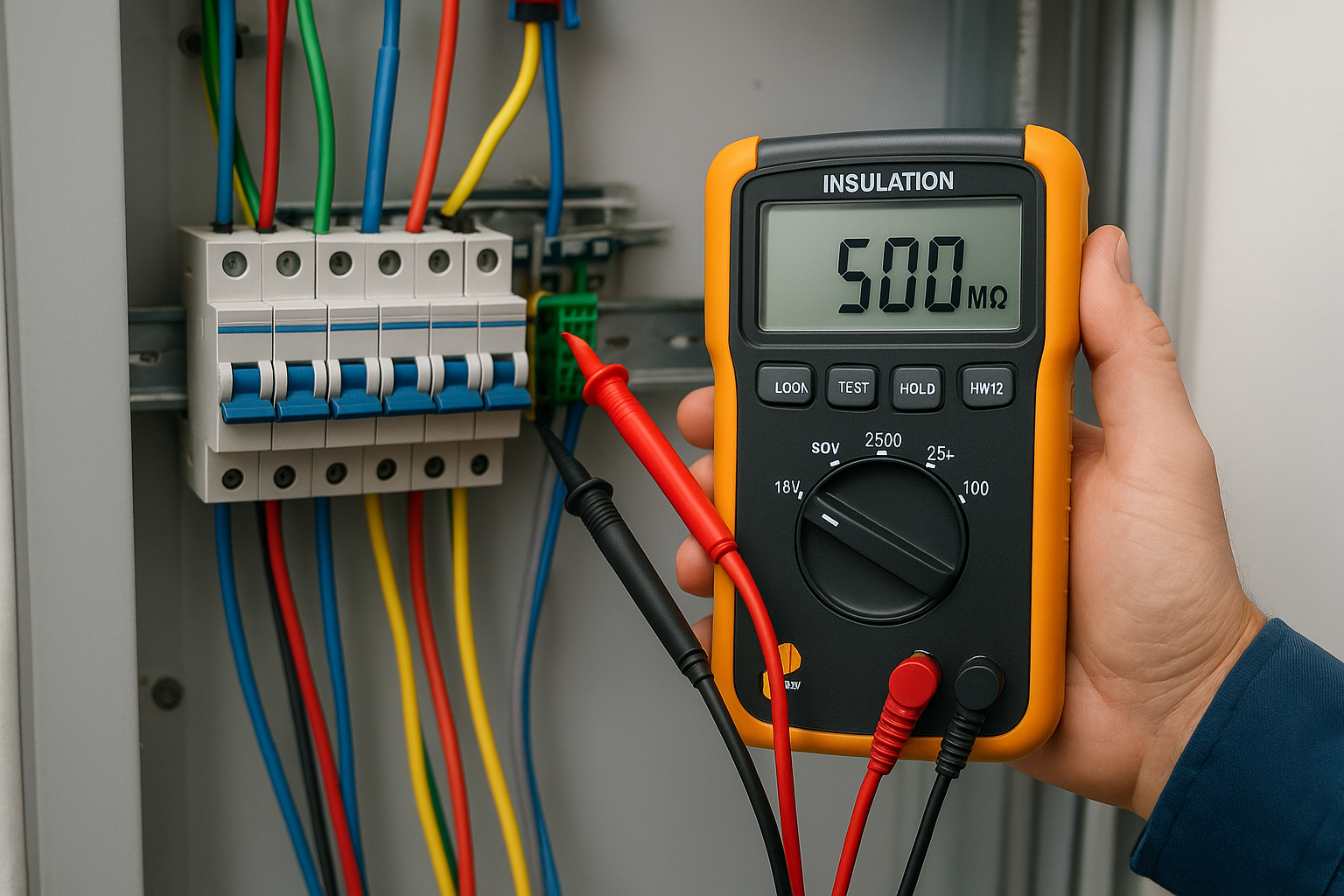

What an insulation resistance test actually checks

The purpose of insulation resistance test is to measure the electrical resistance of insulating materials that surround and separate live conductors. A healthy insulator has extremely high resistance, which keeps current confined to its intended path. When you apply a DC test voltage across the insulation, the meter measures how much current leaks through. That reading, expressed in megohms (MΩ), tells you the condition of the insulating material between conductors and between conductors and earth.

The components under test

An insulation resistance test does not check the entire installation in one go. Engineers test individual circuit cables by isolating them from the supply and disconnecting sensitive equipment that could be damaged by the test voltage. The test is applied between live conductors, and between each live conductor and earth. This systematic approach means you get specific readings for each circuit or section, making it straightforward to identify exactly where a fault exists rather than simply knowing that one does.

The test also covers fixed wiring within walls and floors, distribution board connections, and cable insulation along circuit runs that serve sockets, lighting, and fixed appliances. In commercial environments, this extends to motor windings, switchgear, and busbar systems. The scope depends on the type of inspection being carried out, but the underlying measurement principle is always the same: apply a voltage, measure the current that leaks through the insulation, and calculate the resistance.

What the measurements reveal

A reading that stays high and stable tells you that the insulation between conductors is intact and functioning correctly. A reading that falls below acceptable values, or that drops during a prolonged test, points to a problem. That problem could be moisture absorbed into cable sheathing, physical damage to insulation from heat, mechanical stress, or chemical exposure, or the natural breakdown of older materials that have simply reached the end of their usable life.

A low reading does not always mean an immediate failure, but it does mean the insulation is no longer providing the safety margin it was designed for.

What the test cannot do is tell you the precise location of the fault along a cable run. Once a circuit produces a low insulation resistance reading, further investigation is needed to pinpoint the exact source. That might involve splitting the circuit into sections and retesting, or using additional diagnostic tools. The insulation resistance test identifies the problem; locating it precisely is the next step.

Where insulation resistance testing fits in UK compliance

Insulation resistance testing does not exist in isolation. It sits within a structured framework of UK electrical safety regulations and standards that define when testing must happen, who must carry it out, and what constitutes an acceptable result. Understanding where the purpose of insulation resistance test sits within that framework helps you recognise why the test carries weight beyond simply being good practice.

How it connects to the EICR process

The most direct connection is to the Electrical Installation Condition Report (EICR). Under BS 7671, the IET Wiring Regulations that govern electrical installation work in the UK, an EICR requires a series of inspection and testing activities to assess the overall condition of a fixed electrical installation. Insulation resistance testing is one of the core verification tests within that process, alongside continuity testing, earth fault loop impedance testing, and RCD performance checks.

When an engineer carries out an EICR on your property, the insulation resistance results directly influence the classification codes assigned to any faults found. A reading that falls below the minimum acceptable threshold will typically produce a C2 classification (potentially dangerous) or a C1 classification (danger present) depending on severity, both of which require remedial action before the installation can be considered satisfactory.

The EICR is only as reliable as the tests that feed into it, and insulation resistance testing is one of the most informative of those tests.

The role of the Electricity at Work Regulations 1989

The Electricity at Work Regulations 1989 place a legal duty on employers and self-employed people to maintain electrical systems so that danger is prevented. These regulations apply to all workplaces in the UK and cover fixed wiring, equipment, and accessories. Insulation resistance testing provides documented, quantifiable evidence that your electrical systems have been assessed systematically by a qualified engineer.

For commercial clients, this documentation matters significantly. If the Health and Safety Executive investigates an electrical incident at your premises, or if your insurer queries the maintenance history of your installation, records of insulation resistance test results are concrete proof that you met your duty of care. Testing alone is not sufficient; you need the written evidence alongside it to demonstrate that your compliance obligations were taken seriously and acted upon at regular intervals.

How an insulation resistance test works step by step

The purpose of insulation resistance test is only achieved when the test is carried out correctly and in the right sequence. A qualified engineer follows a structured process to get reliable readings, and every stage matters. Skipping steps or testing without proper preparation produces results you cannot trust, which defeats the point of the exercise entirely.

Isolation and preparation

Before any test voltage is applied, your engineer will isolate the circuit from the supply by switching off the relevant breakers and confirming that no live voltage is present using a voltage indicator. This step protects both the engineer and your equipment. Sensitive devices such as dimmer switches, smart controls, surge protection devices, and certain types of electronic equipment must be disconnected from the circuit before testing begins, because the DC test voltage can damage components that are not designed to handle it. Once the circuit is fully isolated and cleared, the engineer connects the test leads to the conductors under examination.

Applying the test voltage

Your engineer sets the insulation resistance tester to the correct test voltage for the type of circuit being checked. For most domestic and commercial low voltage circuits, this is 500V DC, though some circuits rated at higher voltages require 1000V DC. The tester applies this voltage across the insulation, typically between live and neutral conductors, and between each live conductor and earth. The instrument measures how much current passes through the insulating material and calculates the resistance value in megohms (MΩ). The reading is taken after a stable period, usually around one minute, to allow any capacitive charging effect in longer cable runs to settle out.

Allowing sufficient time for the reading to stabilise is essential, because a premature reading on a long cable run can appear lower than the true value and lead to an incorrect assessment.

Recording and comparing results

Once the test readings are obtained for each circuit, the engineer records them on the inspection schedule. These figures are then compared against the minimum acceptable values set out in BS 7671. Any circuit that returns a result below the required threshold is flagged for further investigation. Your engineer will also note whether readings have changed significantly compared to previous test records, because a declining trend over successive inspection periods can indicate progressive insulation deterioration even if the current value has not yet fallen below the pass threshold. This comparison over time is one of the most useful aspects of keeping thorough testing records for your installation.

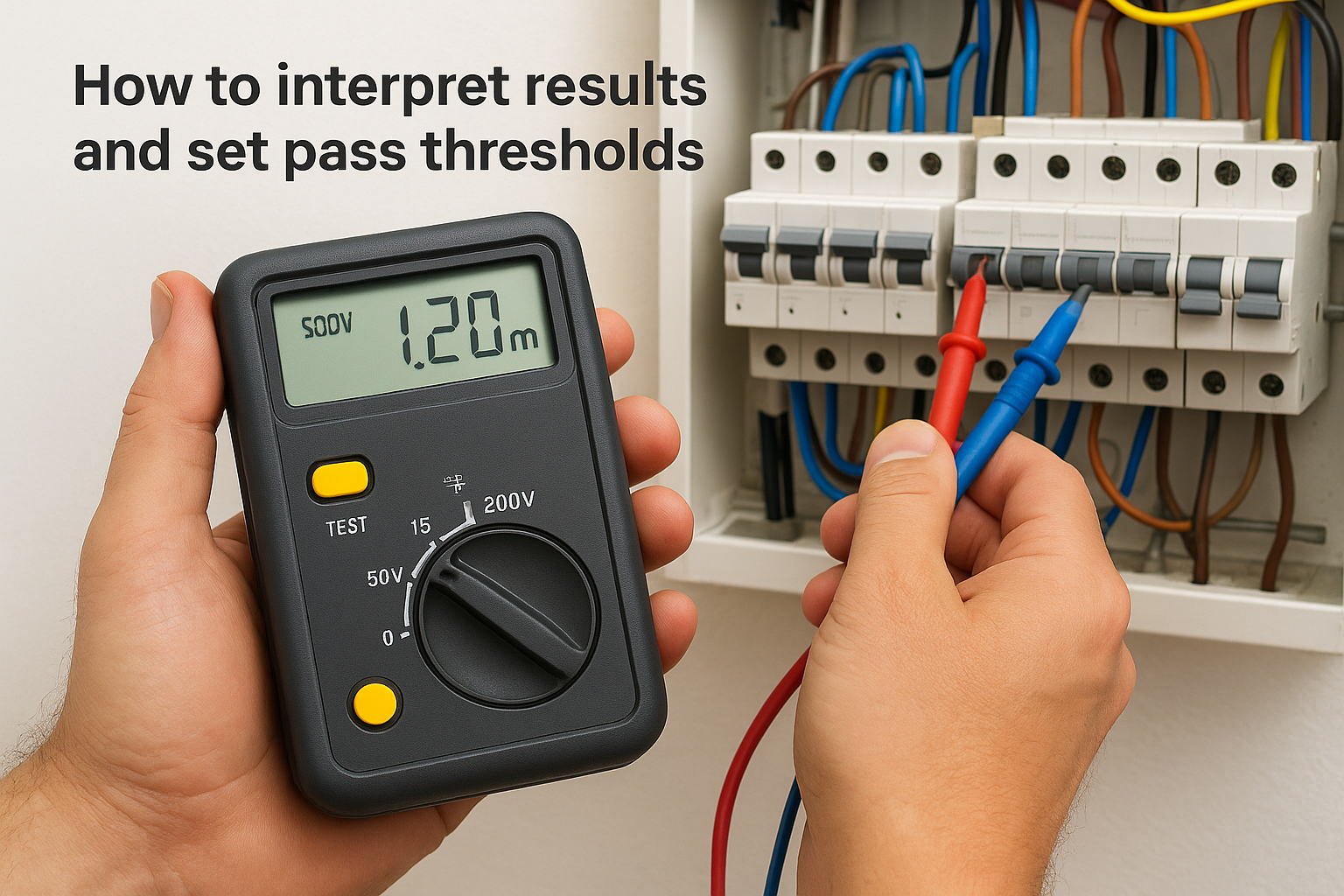

How to interpret results and set pass thresholds

Getting a number from an insulation resistance tester is only half the work. The purpose of insulation resistance test is to give you actionable information, and that requires knowing how to read the result against a defined standard. BS 7671 sets the minimum acceptable insulation resistance values for low voltage installations in the UK, and your engineer uses these figures as the baseline for every circuit assessment.

Minimum acceptable values under BS 7671

For most standard low voltage circuits, BS 7671 sets the minimum acceptable insulation resistance at 1 MΩ. In practice, a healthy installation should return values significantly higher than this. New or recently rewired circuits commonly produce readings in the range of hundreds of megohms or even gigohms, so a result that sits barely above the 1 MΩ threshold, while technically passing, still warrants close attention. The table below outlines the standard test voltages and corresponding minimum values you should expect:

A reading that just clears the minimum threshold is not the same as a healthy reading. It means the installation is currently at the boundary of acceptable performance, not comfortably within it.

Reading the trend, not just the number

A single test result tells you the current condition of the insulation at the time of inspection. However, comparing results across multiple inspection periods reveals something more useful: whether the insulation is deteriorating progressively over time. A circuit that returned 200 MΩ five years ago and now returns 15 MΩ is clearly declining, even though 15 MΩ sits above the 1 MΩ minimum. Without historical records, you lose this perspective entirely.

Your engineer should always note previous readings alongside current ones where records exist, and your inspection documentation should retain this data across successive EICRs. This trend analysis is particularly valuable in older properties, commercial environments with high equipment loads, and anywhere that cables run through areas exposed to temperature variation or moisture. It helps you schedule remedial work before a fault develops rather than after it does, which is always the more cost-effective and safer approach.

Common causes of low readings and what to do next

When an insulation resistance test returns a low value, the result points to something specific happening within your installation. Understanding the common causes helps you respond proportionately rather than assuming the worst or, equally problematic, dismissing a warning sign. The purpose of insulation resistance test is to surface these issues early, so knowing what drives poor readings puts you in a better position to act on them effectively.

Moisture ingress and physical damage

Water and electricity do not mix, and moisture is one of the most frequent causes of low insulation resistance readings. Condensation inside enclosures, water ingress from a roof leak or plumbing fault, and flooded cable runs all reduce insulation resistance significantly. Even a small amount of moisture absorbed into cable sheathing over time can pull readings down well below acceptable thresholds.

Physical damage to cables is another common culprit. This includes cables that have been crushed under flooring, pinched by fixings during building work, or degraded by prolonged exposure to heat from adjacent pipework or equipment. In commercial environments, chemical exposure from cleaning agents or industrial processes can attack insulation materials directly, causing rapid deterioration that shows up clearly in test results.

Moisture-related faults are sometimes seasonal, with readings improving once conditions dry out, but the underlying cause still needs to be addressed and not simply monitored.

Age-related deterioration and overloading

Older installations are particularly vulnerable to declining insulation resistance because the materials used in cables manufactured before current standards simply do not last as long. Rubber-insulated cables found in properties built before the 1960s are a clear example. The insulation becomes brittle, cracks form, and resistance values drop. This is not a fault caused by a single event but a progressive process that accelerates once the material reaches a certain point in its lifespan.

Persistent overloading of circuits also contributes. When cables carry more current than they were rated for over extended periods, the heat generated softens insulation, reduces its integrity, and shortens its effective life. Both scenarios require professional assessment rather than a temporary fix.

What to do when readings fall short

Once your engineer identifies a low insulation resistance reading, the immediate step is to isolate the affected circuit and prevent it from being energised until the fault is investigated further. Your engineer will then use a process of elimination, splitting the circuit into sections and retesting, to narrow down the location of the fault before any remedial work begins. Depending on what is found, the resolution may involve replacing a section of cable, resealing an enclosure against moisture, or rewiring a circuit entirely.

Next steps

The purpose of insulation resistance test is straightforward: it tells you, with a measurable number, whether the insulation in your electrical installation is still protecting people and property as it should. If you have read through this article, you now understand what the test checks, how results are interpreted, what thresholds apply, and what low readings mean for your next course of action. Acting on that knowledge early is always less disruptive and less expensive than responding to a fault after it causes damage or, worse, an injury.

Whether you are a landlord needing a compliant EICR, a commercial client keeping pace with your obligations under the Electricity at Work Regulations, or a homeowner who simply wants clarity on the condition of your wiring, professional testing gives you the answers you need. Our engineers at Electrical Testing London carry out insulation resistance testing across London and the South East. Request a quote today to get the process started.
