When an RCD trips repeatedly without an obvious fault, or when you need to verify that a device will disconnect at the right threshold, a standard pass/fail test doesn't always tell the full story. That's where having the RCD ramp test explained properly matters, it's a diagnostic method that reveals how sensitive an RCD actually is, not just whether it works. For electricians, landlords, and property managers dealing with nuisance tripping or borderline faults, understanding this test can save hours of guesswork.

At Electrical Testing London, our engineers carry out RCD ramp testing as part of Electrical Installation Condition Reports (EICRs) across domestic and commercial properties in London and the South East. It's one of several tests we use daily to assess whether protective devices are functioning within their designed operating parameters, or drifting toward failure.

This article breaks down what a ramp test is, how it differs from standard RCD tests, how the gradually increasing current works in practice, and, critically, how to read the results. Whether you're an electrician brushing up on testing procedures or a landlord trying to understand what your EICR findings actually mean, this guide covers the technical detail you need without unnecessary jargon.

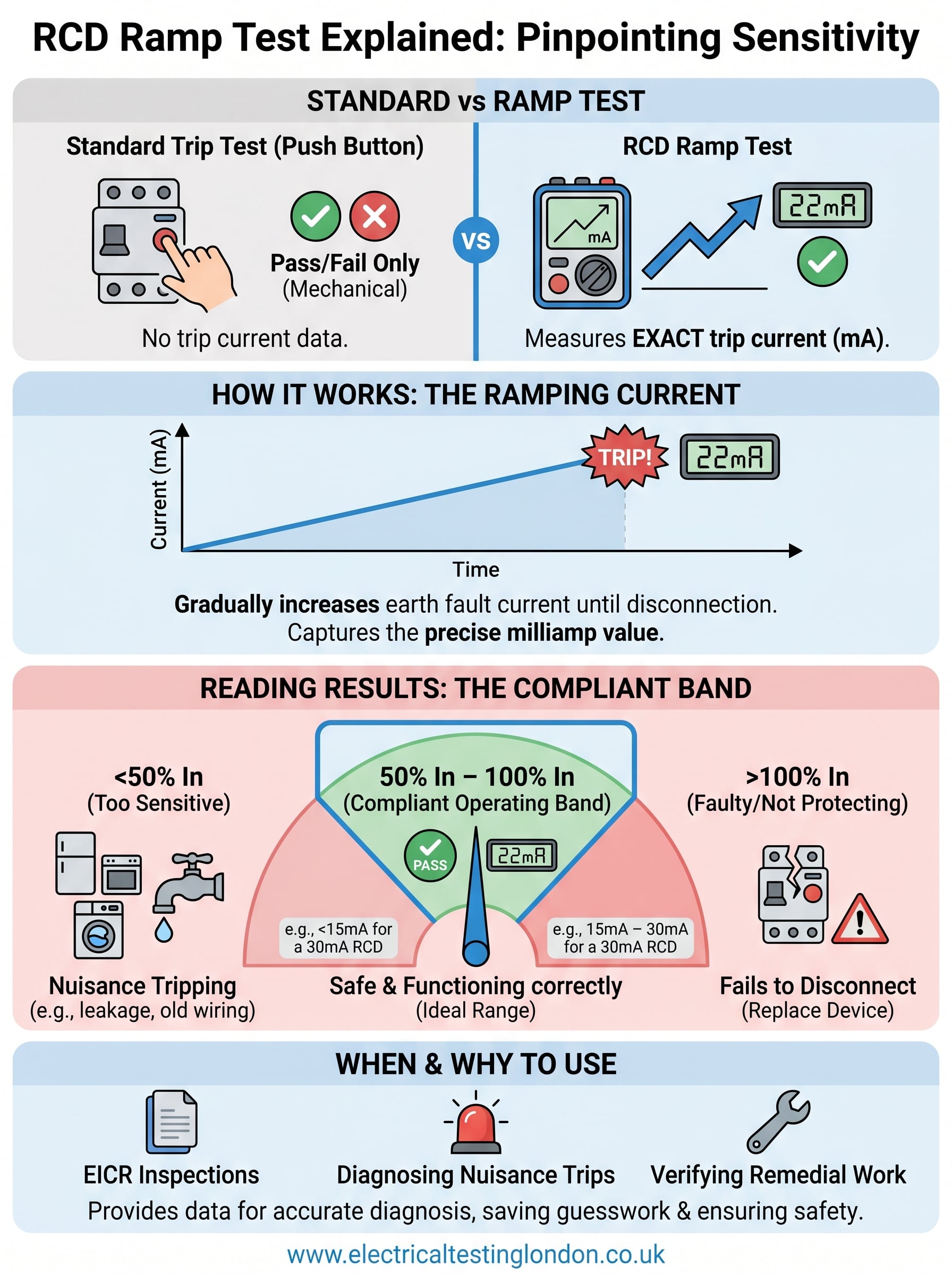

What a ramp test measures

A standard RCD trip test, often called a push-button test, simply confirms that the device trips when you press the button. It tells you the mechanical action works, but it gives you no data on the current threshold at which the RCD actually disconnects. A ramp test goes further. It measures the exact point at which your RCD trips by introducing a gradually increasing earth fault current until the device operates, capturing the precise milliamp (mA) value at the moment of disconnection.

The difference between a trip test and a ramp test

Most electricians carry out a standard pass/fail RCD test using a fixed test current, typically at 100% or 150% of the rated sensitivity (In). That confirms the device trips within the required time, but it doesn't reveal where within the operating band the RCD actually fires. A ramp test replaces that fixed pulse with a slow, rising current, usually starting well below the rated sensitivity and climbing steadily until the device operates.

Your test instrument then records the exact trip current in milliamps, which is the figure you need when diagnosing faults or borderline behaviour. This distinction matters because two RCDs with identical rated sensitivities can behave very differently in practice, and only a ramp test will expose that difference in a measurable, documented way.

The ramp test is particularly useful when a device trips at an unexpectedly low current, which a standard fixed-current test simply cannot detect.

Operating threshold vs rated sensitivity

Every RCD carries a rated residual operating current, marked as In on the device. Regulations require the device to trip at no more than In and no less than half of In. For the most common RCD types, the compliant trip ranges are:

Understanding where within that band your RCD actually trips is central to getting the rcd ramp test explained in a way that's practically useful. A device tripping at 28mA on a 30mA circuit is technically compliant but sitting close to its upper limit, which warrants a note in an EICR inspection report. A device firing at 14mA is also compliant but will likely cause persistent nuisance trips on circuits carrying normal levels of background leakage current, leading to unnecessary callouts and disruption.

How an RCD ramp test works

To get the rcd ramp test explained in practical terms, picture a current that starts at zero and climbs in small, steady increments rather than arriving all at once. Your test instrument applies this rising earth fault current between the live conductor and earth through the circuit under test, measuring continuously until the RCD operates and breaks the circuit. The entire sequence typically takes only a few seconds.

The test equipment and setup

Your engineer connects a dedicated RCD tester to the circuit at a socket outlet or distribution board. Before starting, the instrument needs to know the rated sensitivity of the device being tested, because this sets the starting point and the rate of current increase. Most modern testers handle 30mA, 100mA, and 300mA RCDs, and some cover 10mA types used in specialist circuits. The engineer will also confirm the RCD type, whether it's Type AC, Type A, or Type F, since the waveform applied during testing varies accordingly.

Always confirm the RCD type before running the test, since applying the wrong waveform produces unreliable results and could mask genuine faults.

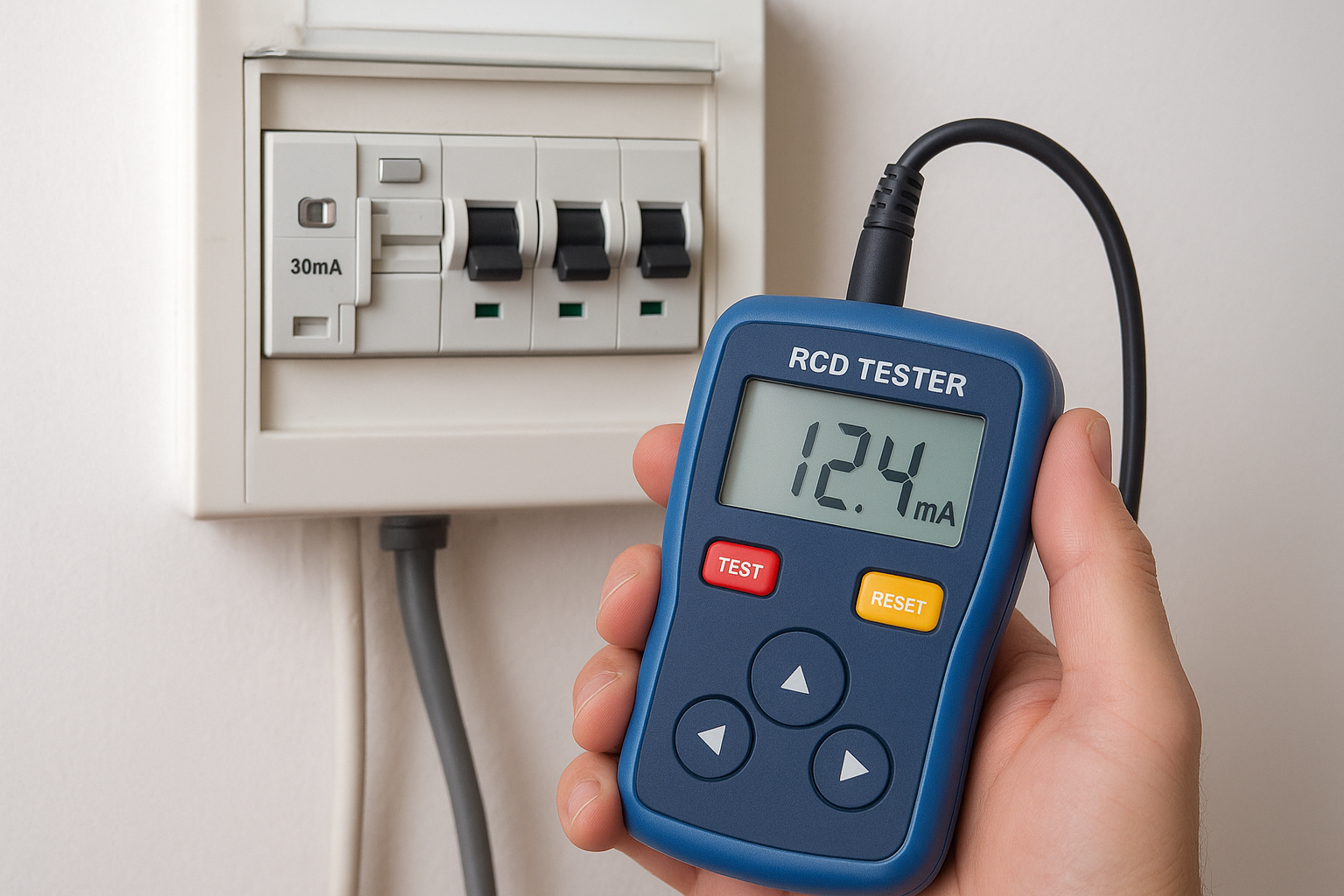

What happens during the test

Once the test starts, the instrument ramps the fault current upward in milliamp steps, typically increasing by 1mA or less at each interval. The moment the RCD trips, the tester stops, records the precise trip current, and displays the result. Your engineer can then compare that figure directly against the compliant operating band for that device. The RCD remains de-energised until manually reset, which also confirms the reset mechanism is functioning correctly.

How to read ramp test results

Once the test completes, your engineer's instrument displays a single milliamp figure, which is the current at which the RCD tripped. Reading that number correctly is the core of getting the rcd ramp test explained in a way that's actually useful on site. The figure on its own means very little without comparing it to the device's rated sensitivity and the compliant operating band defined by BS 7671.

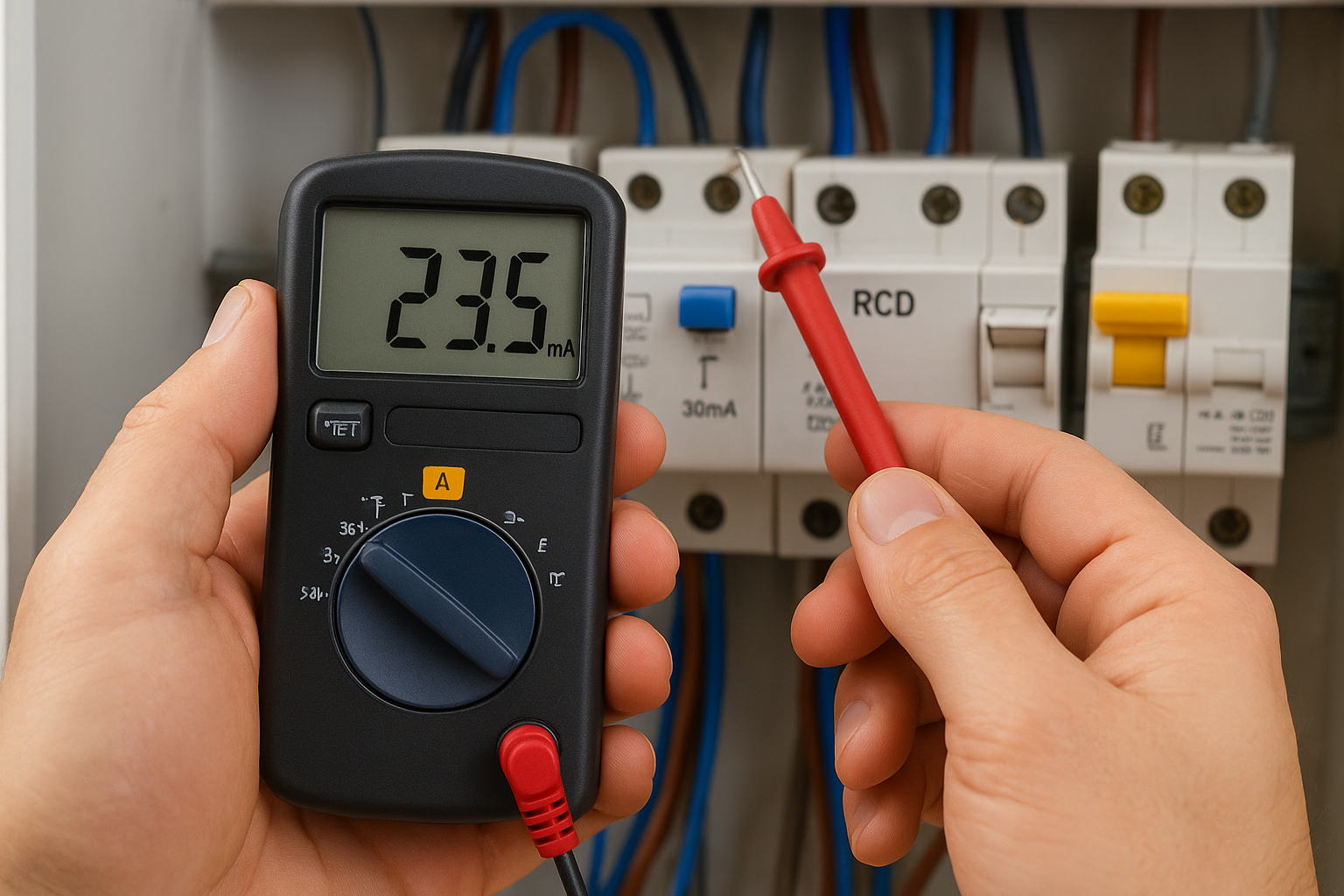

Understanding the displayed figure

Your result sits somewhere between half the rated sensitivity and the full rated value. For a standard 30mA RCD, a compliant result falls between 15mA and 30mA. Anything below 15mA means the device is tripping earlier than regulations allow, which is a strong indicator of excessive background leakage causing nuisance trips. Anything above 30mA means the device is failing to provide adequate protection, which is a clear fault requiring immediate remedial action.

A result sitting very close to either boundary, even if technically compliant, warrants a note in your inspection report because it signals a device drifting toward non-compliance.

What compliant and non-compliant results look like

Compliant results land comfortably within the middle of the operating band, giving you confidence the device will respond correctly under real fault conditions without tripping on normal leakage. Non-compliant results fall outside the band entirely and require you to investigate further: replace the RCD, audit the circuit for excessive connected appliances, or check for insulation degradation pulling background leakage above acceptable levels. Both outcomes give you a clear direction, which is precisely why a ramp test delivers far more actionable data than a standard push-button check alone.

Common faults and nuisance tripping clues

Ramp test results often point directly to a fault pattern before you've even lifted a screwdriver. Once you have the rcd ramp test explained and the trip current recorded, you can cross-reference it against the symptoms reported on site, and the combination of both usually narrows down the cause quickly.

Tripping below the minimum threshold

When your ramp test shows a trip current below 50% of the rated sensitivity, the RCD is operating too sensitively. This is the primary cause of nuisance tripping, where the device disconnects during normal use without a genuine fault present. The most common driver is accumulated leakage current across a circuit with too many connected appliances, each contributing a small but measurable amount of earth leakage. Older or damaged cables with degraded insulation can push background leakage high enough to trigger an over-sensitive RCD repeatedly. In these cases, the fix isn't always the RCD itself; auditing the connected load and checking insulation resistance usually reveals the real source.

If your ramp result sits below the minimum threshold and the circuit carries a large number of appliances, test insulation resistance before replacing the device.

Tripping above the rated sensitivity

A trip current above the device's rated In means the RCD is not providing adequate protection. At this point, the device cannot be considered compliant, and continued use puts people at risk. This result sometimes appears on older or mechanically worn RCDs where the internal sensing coil has deteriorated over time, causing the device to respond sluggishly. Replacement is the only appropriate course of action here; recalibration is not an option for standard consumer RCDs.

When to test and who should do it

Ramp testing isn't something you need to schedule as a standalone visit every few months, but there are specific situations where it's the right tool for the job. Knowing when to commission one, rather than relying on a standard push-button test, helps you get accurate diagnostic data at exactly the point it's most needed rather than working from assumptions.

Situations that call for a ramp test

Several scenarios make a ramp test the appropriate choice over a basic trip test. If tenants or occupants report repeated unexplained tripping on a circuit, a ramp test tells you immediately whether the RCD is firing below its minimum threshold. It's also standard practice during a full EICR inspection, where documenting the precise trip current supports a thorough and defensible condition assessment. After completing remedial electrical work, such as replacing a cable or adding a new circuit, a ramp test confirms the RCD still operates within its compliant operating band before you sign off the installation.

If you're commissioning an EICR on a rental property, confirm with your engineer that ramp testing is included in the scope, not just a push-button check.

Qualifications required

With the rcd ramp test explained in full, it's clear this is not a task for an unqualified person. The test must be carried out by a qualified electrician holding appropriate competence and using calibrated test equipment, with a working knowledge of BS 7671. Your engineer needs to interpret the results correctly, identify whether the trip current represents a genuine fault, and advise on the right remedial course of action based on what the data shows. In rented properties, using a competent engineer also protects you when demonstrating compliance to your local housing authority.

Next steps

With the rcd ramp test explained from threshold principles through to fault diagnosis, you now have a clear picture of what the test measures, how to read the results, and when a recorded trip current points to a genuine problem rather than a borderline device drifting toward non-compliance.

If you manage a rental property, run a business premises, or deal with repeated unexplained tripping on any circuit, a proper ramp test carried out by a qualified engineer gives you the data you need to act with confidence. Combining ramp testing with a full EICR inspection gives you a complete, documented picture of your electrical installation's condition, one that stands up to scrutiny from insurers and local housing authorities.
