Short Circuit Protection Devices: Types And How They Work

Understanding the types of protection available matters more than you might think. Choosing the wrong device, or failing to maintain the right one, can leave an entire property exposed. As part of our Electrical Installation Condition Reports (EICRs) and remedial work across London and the South East, our engineers at Electrical Testing London regularly assess whether the correct protection devices are installed, functional, and compliant with current BS 7671 wiring regulations.

This article breaks down the main types of short circuit protection devices, explains how each one works, and helps you determine which is appropriate for your property. Whether you're a homeowner, landlord, or business operator, you'll come away with a clear understanding of MCBs, fuses, RCDs, and other key components. We'll also cover how to spot signs that your existing protection may need replacing or upgrading.

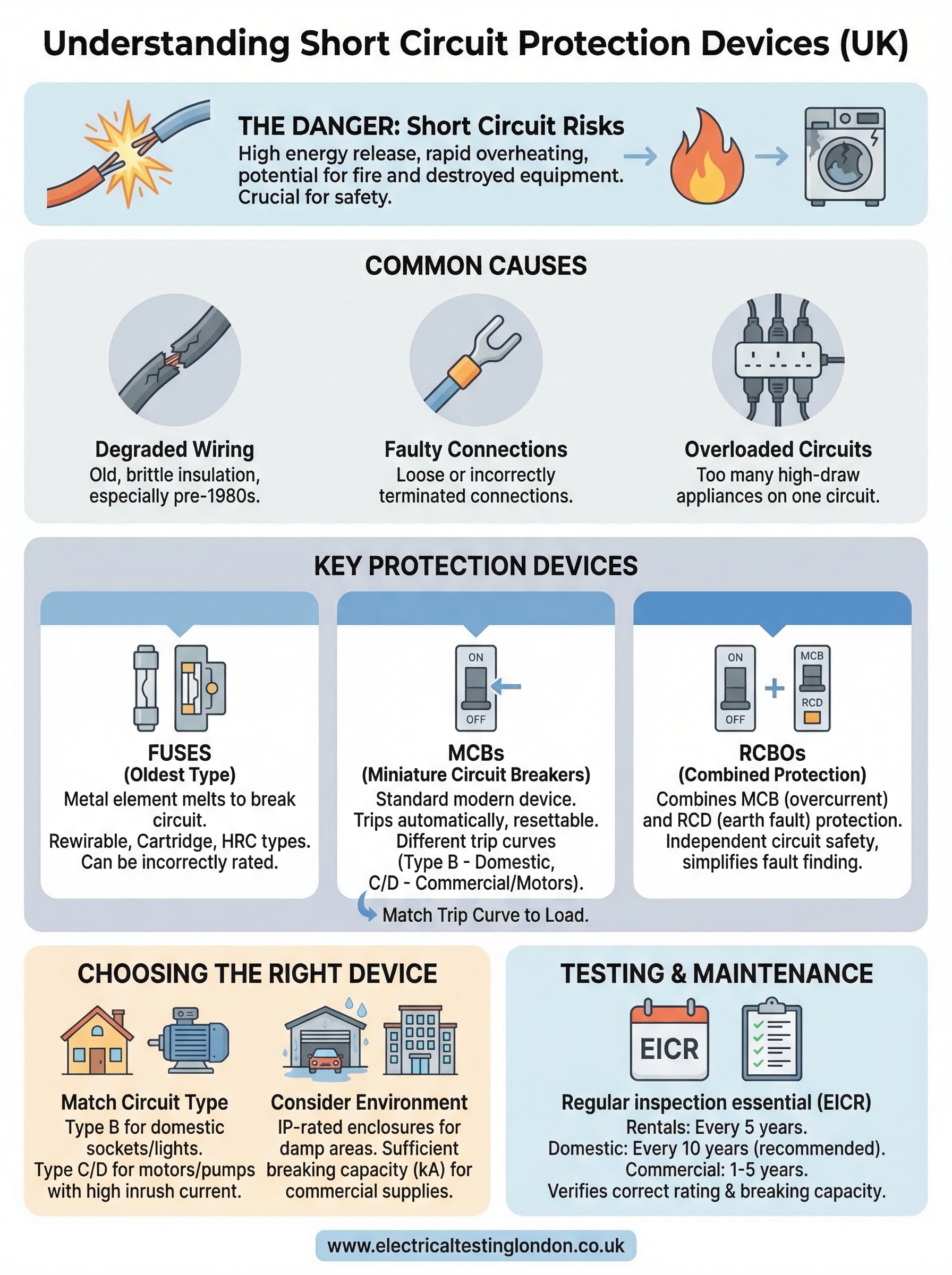

Why short circuit protection matters

A short circuit creates a sudden, uncontrolled surge of current through your electrical system. Without proper protection in place, that surge can reach thousands of amperes within milliseconds, generating intense heat that ignites insulation, melts conductors, and destroys connected equipment. The consequences range from a tripped circuit to a full structural fire, depending entirely on whether the right short circuit protection devices are fitted and working correctly.

The physical consequences of an unprotected fault

When a short circuit occurs, it releases energy far beyond what your wiring is designed to handle. Conductors overheat rapidly, and if the fault persists for even a fraction of a second longer than it should, surrounding materials catch fire. Electrical faults are one of the leading causes of domestic and commercial fires in the UK, according to data published by the Home Office. In older properties particularly, wiring that has degraded over time is far more vulnerable when protection devices are absent or undersized.

Fitting the correct protection device for each circuit is one of the most effective steps you can take to reduce the risk of electrical fire in your property.

Beyond fire, unprotected short circuits can destroy appliances and damage your consumer unit, while also creating voltage fluctuations that affect every connected device on the same installation. The cost of replacing equipment and repairing structural damage typically far exceeds the cost of ensuring correct protection is in place from the start.

Your legal and insurance responsibilities

In the UK, BS 7671 (the IET Wiring Regulations) sets out the requirements for electrical installations, including the correct use of protection devices for each circuit type and load. Landlords in England must comply with the Electrical Safety Standards in the Private Rented Sector Regulations 2020, which require a valid EICR every five years. An EICR will identify whether your overcurrent and short circuit protection is adequate for the current installation.

Your property insurance may also be affected if your electrical installation is found to be non-compliant following a fire or fault. Insurers regularly scrutinise electrical safety records when processing claims related to fire damage. Keeping your protection devices correctly specified and regularly tested is not just a safety measure; it is a documented record that you have fulfilled your duty of care, whether you own a residential property, manage a commercial premises, or let to tenants.

How short circuits happen in buildings

Short circuits don't appear out of nowhere. In most buildings, specific conditions develop over time that eventually allow a fault current to find an unintended path. Understanding the common causes helps you assess your own property's risk and gives you a clearer picture of why correctly specified short circuit protection devices are essential at every stage of an installation.

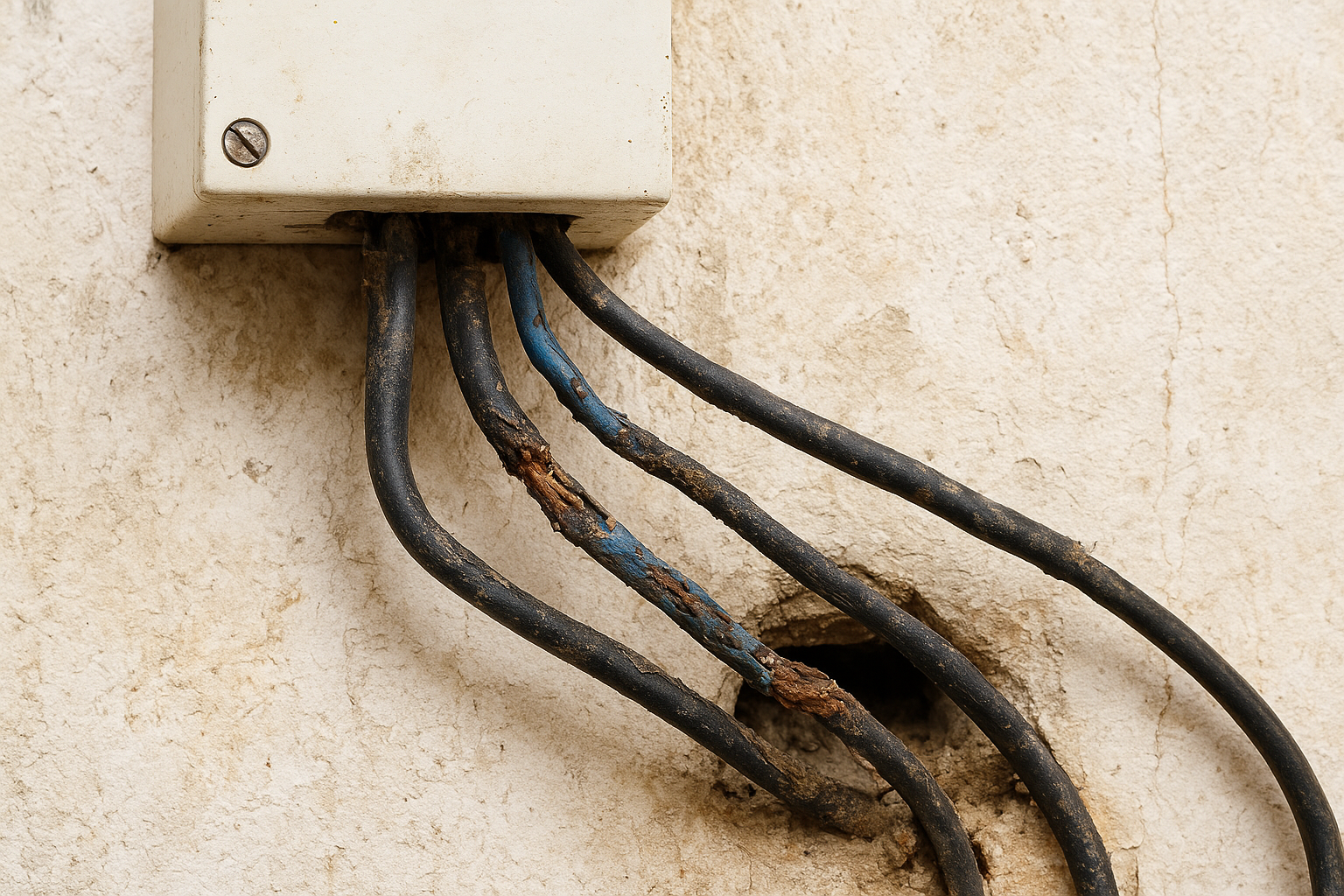

Wiring that has degraded over time

Older properties present the highest risk. Insulation on cables becomes brittle and cracked with age, particularly on wiring installed before the 1980s, and any contact between a live conductor and earth or neutral creates the conditions for a short circuit. Heat, moisture, and rodent damage all accelerate this process, which is why buildings that haven't had an electrical inspection in years are statistically more likely to experience a fault.

If your property has not had an EICR in the last five years, degraded wiring may already be putting your circuits at risk.

In some older systems, rubber-insulated or aluminium wiring is still in use, neither of which meets modern safety standards. These materials deteriorate far faster than modern PVC-insulated copper cable and are a common finding during inspection work.

Faulty connections and poor installation work

Loose or incorrectly terminated connections are a significant cause of short circuits in both residential and commercial buildings. When a wire works loose inside a socket, switch, or junction box, it can contact an adjacent conductor and create a direct fault. Poor workmanship during installation, such as incorrectly stripped cables or over-tightened terminals that damage insulation, creates vulnerabilities that may not show up immediately but can cause faults months or years later.

Overloaded circuits also contribute. Plugging too many high-draw appliances into a single circuit forces conductors to carry more current than they were rated for, heating the wiring and weakening insulation over time.

Types of short circuit protection devices

Several distinct short circuit protection devices are available, each suited to different applications and load types. Understanding what each device does and where it fits in an installation helps you see why your consumer unit is configured the way it is, and whether any component may need upgrading.

Fuses

Fuses are the oldest form of overcurrent protection still found in UK properties. When fault current exceeds the rated value, a metal element inside melts and permanently breaks the circuit. An incorrectly rated fuse inserted by an untrained person can leave a circuit completely unprotected, which is a common risk in older properties with original consumer units. Common types still encountered during inspection work include:

• Rewirable fuses
• Cartridge fuses
• High rupture capacity (HRC) fuses

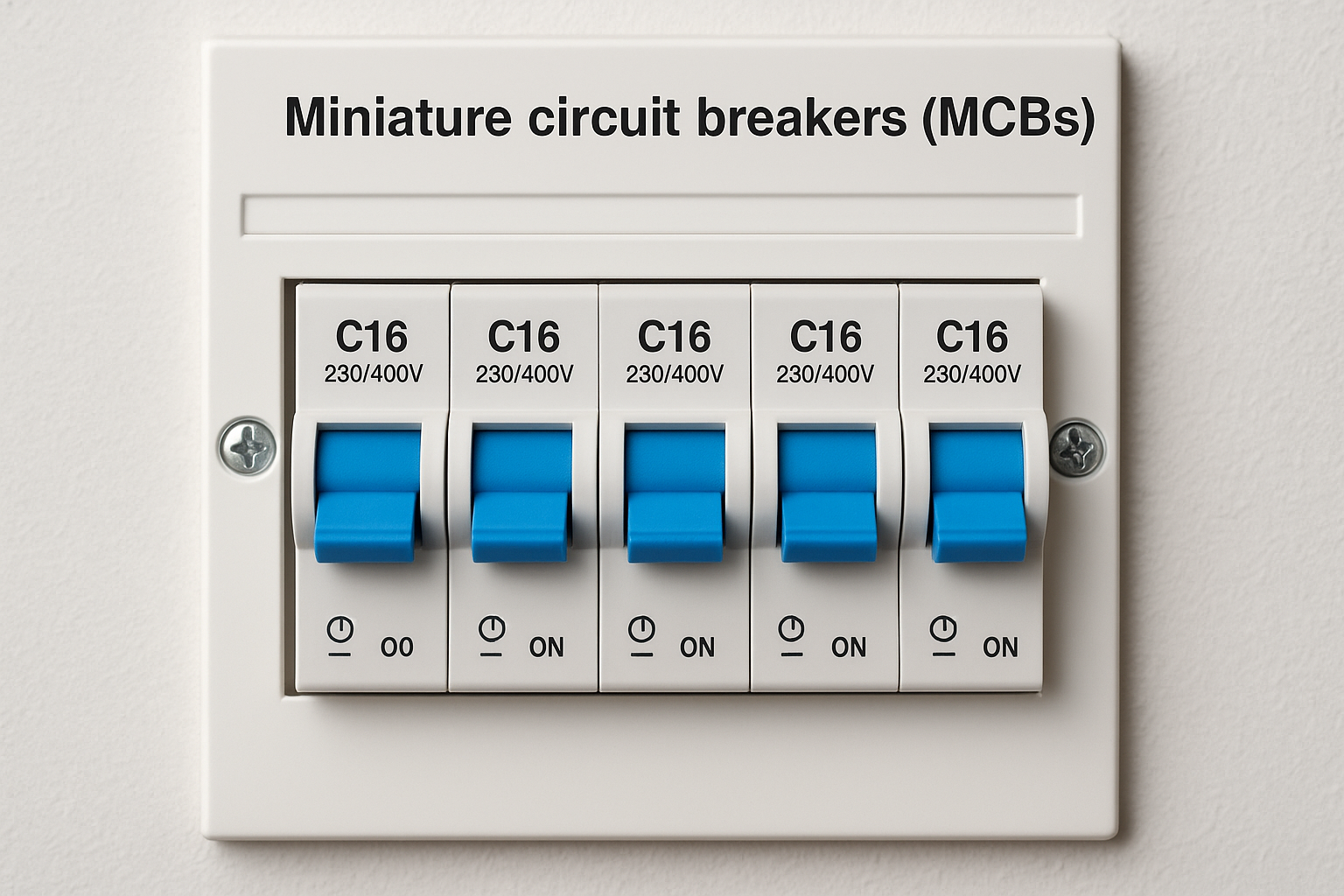

Miniature circuit breakers (MCBs)

MCBs are the standard protection device in modern consumer units across residential and commercial properties in the UK. They trip automatically when they detect an overcurrent or short circuit, and you can reset them by flipping a switch once the fault is cleared. Different trip curve ratings, such as Type B for domestic circuits and Type C or D for commercial and motor loads, allow MCBs to be matched precisely to the characteristics of each circuit.

Fitting an MCB with the wrong trip curve for your circuit type can result in nuisance tripping or, more dangerously, failure to disconnect during a genuine fault.

RCBOs

An RCBO combines the overcurrent and short circuit protection of an MCB with the earth fault protection of an RCD in a single device. Each circuit gets independent protection, which simplifies fault finding and ensures that a trip on one circuit does not affect others in the same installation.

How to choose the right device

Selecting the right protection device comes down to three main factors: the type of circuit, the load it serves, and the installation environment. Getting any of these wrong can result in either nuisance tripping or, far worse, a device that fails to disconnect quickly enough during a genuine fault. Your choice should always be guided by BS 7671 requirements and confirmed by a qualified electrician who can assess the actual fault current levels at each point in your installation.

Match the device to the circuit type

Domestic circuits supplying sockets and lighting typically call for a Type B MCB, which trips at between three and five times its rated current. For circuits running motors, pumps, or other equipment with a high inrush current at start-up, a Type C or Type D MCB is the better choice because it tolerates the initial surge without tripping unnecessarily. If you need both overcurrent protection and residual current protection on a single circuit, an RCBO gives you both functions in one unit without affecting other circuits when it trips, which simplifies fault finding considerably.

Fitting the wrong trip curve on a circuit is one of the most common problems found during EICR inspections, and it can leave wiring or equipment genuinely at risk.

Consider the installation environment

Where short circuit protection devices are installed matters as much as which device you choose. Consumer units in damp locations, such as garages or outbuildings, require appropriate IP-rated enclosures to prevent moisture from degrading the device's performance over time. In commercial premises, you also need to account for higher prospective fault current levels at the incoming supply, which means selecting devices with a sufficient rated breaking capacity, measured in kA, to safely interrupt the maximum possible fault current at that specific point in the installation.

Testing and maintenance in the UK

Even correctly specified short circuit protection devices can fail over time if they are never checked. Mechanical components inside MCBs and RCBOs degrade, contacts corrode, and fuses can be incorrectly replaced without anyone noticing. Regular inspection is the only reliable way to confirm that every protective device in your installation will actually operate when a fault occurs.

How often your devices should be tested

The frequency of inspection depends on the type of property and how it is used. Domestic properties in the private rented sector require an EICR at least every five years under the Electrical Safety Standards in the Private Rented Sector Regulations 2020. Owner-occupied homes have no mandatory interval, but an inspection every ten years is widely recommended. Commercial premises face stricter requirements, with inspection intervals typically ranging from one to five years depending on the nature of the business and the risk level of the environment.

If you have recently purchased a property with no record of a recent inspection, booking an EICR should be your first step before making any assumptions about the condition of your protection devices.

What an inspection involves

During an EICR, a qualified engineer tests each circuit individually and verifies that every protection device is rated correctly for the load it serves. They also check prospective fault current levels at the consumer unit and confirm that devices have a sufficient breaking capacity to safely interrupt the maximum fault current your supply can deliver. Any device found to be undersized, incorrectly rated, or mechanically worn will be recorded as a defect and graded by severity, giving you a clear action plan for any remedial work that follows.

Next steps for safer circuits

Getting your short circuit protection devices right is not a one-time task. Every property changes over time as loads increase, circuits are modified, and components age. If you are unsure whether your current protection is correctly specified, an EICR is the most reliable starting point, giving you a detailed picture of every circuit and every protective device in your installation. From there, any remedial work can be prioritised clearly, with the most serious defects addressed first.

Taking action now costs considerably less than dealing with the consequences of a fault that wasn't caught in time. Whether you manage a rental property, run a commercial premises, or simply want confidence that your home is safe, qualified engineers can inspect, test, and advise on exactly what your installation needs. Request a quote from Electrical Testing London and get a clear assessment of your electrical protection.
