Supplementary Bonding Explained: When It’s Needed At Home

If you've ever had an electrician inspect your bathroom or kitchen, you may have heard the term supplementary bonding explained as something your property either needs or no longer requires. It's one of those electrical safety concepts that causes genuine confusion, partly because the rules around it have changed over the years, and partly because it's often mixed up with main bonding.

Supplementary bonding involves connecting exposed metallic parts (like pipes and radiators) to earth, creating an equalised electrical potential that reduces the risk of electric shock. It's particularly relevant in rooms where water and electricity are close neighbours, bathrooms being the obvious example. Whether your home still needs it depends on the condition of your electrical installation and how your earthing arrangement performs.

At Electrical Testing London, our engineers assess supplementary bonding requirements during every Electrical Installation Condition Report (EICR) we carry out across London and the South East. This article breaks down what supplementary bonding actually does, when it's needed, when it isn't, and what the current regulations say about it.

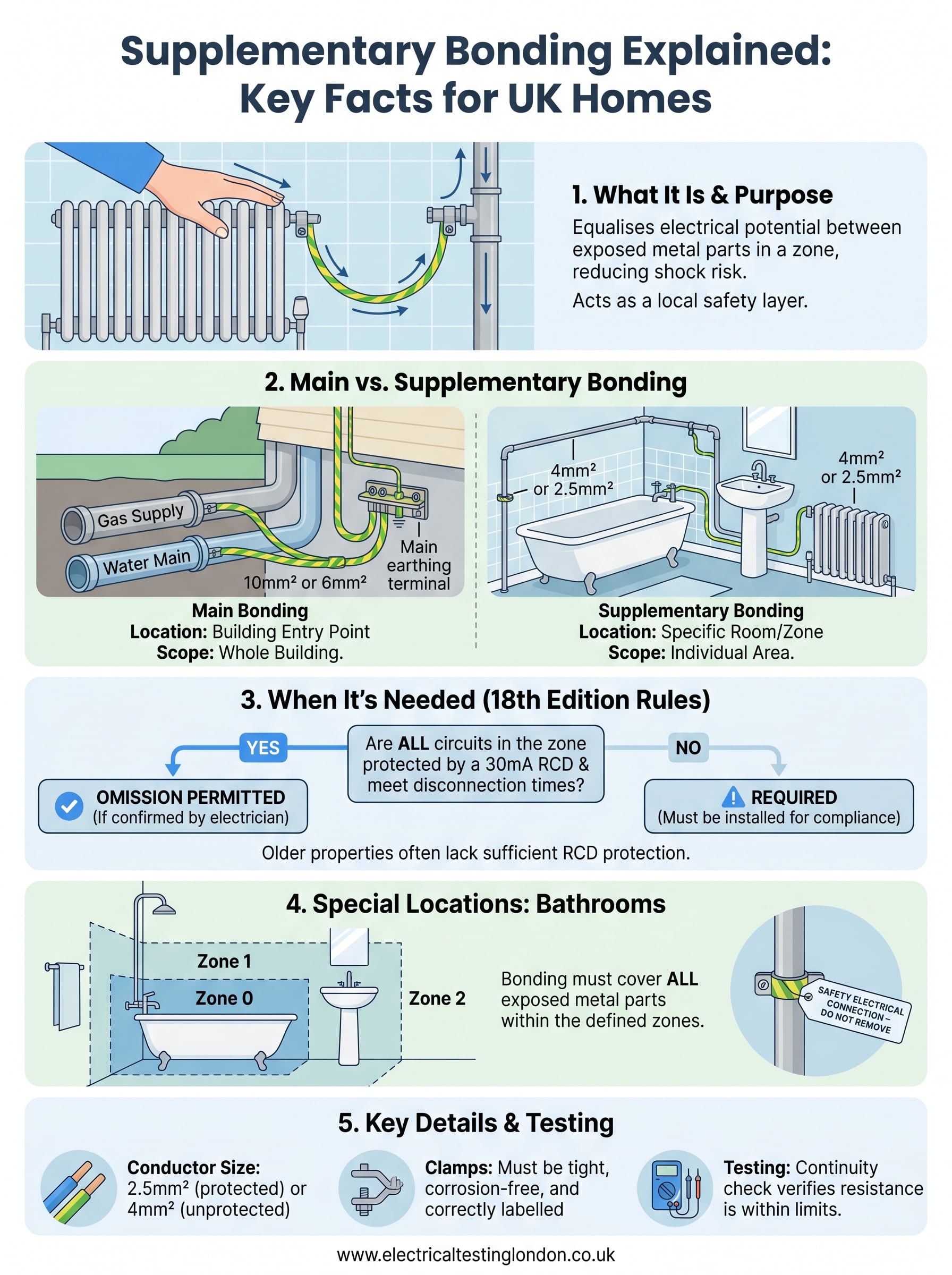

What supplementary bonding is and how it works

Supplementary bonding is a localised electrical safety measure that connects exposed metallic parts within a defined area of your home to each other and to earth. Its purpose is to ensure that if a fault develops, no dangerous voltage difference can build up between metal surfaces you might touch at the same time. Unlike main bonding, which operates at the point where services enter the building, supplementary bonding works within individual rooms or zones, acting as a local safety layer inside your property.

The purpose of equalising electrical potential

To have supplementary bonding explained in full, you need to understand the concept of an equipotential zone. Electricity always follows the path of least resistance. If a live conductor comes into contact with a metal pipe, and you simultaneously grip that pipe and another earthed metal surface, current will pass through your body. Supplementary bonding prevents this by keeping all metallic parts in the zone at the same electrical potential, eliminating the voltage difference that would otherwise drive current through you. In wet areas where skin resistance is reduced, this protection becomes especially important.

The core principle is straightforward: connect everything metal in a zone together, and current has no reason to travel through a person touching two surfaces at once.

How the bonding conductor works in practice

The bonding conductor itself is a green and yellow insulated copper cable that runs between exposed metallic parts, including water supply pipes, waste pipes, radiator pipework, and metal baths or shower trays. Each connection is made using a dedicated bonding clamp that grips the metalwork securely and carries a permanent label warning against removal. The conductor ties these elements together and connects the assembly back to the earth terminal in your consumer unit or local earthing point.

Your electrician will verify that each clamp is tight, corrosion-free, and correctly identified. A loose or corroded connection can undermine the entire bonding arrangement without any visible sign of failure. During an EICR, the engineer inspects these connections visually and tests continuity using an earth loop impedance meter, confirming the system meets the requirements of the current wiring regulations.

Main bonding vs supplementary bonding

Both main bonding and supplementary bonding protect against electric shock, but they work at different points in your installation and carry different responsibilities. Mixing them up leads to incorrect assessments during inspections and, potentially, a failed EICR. Understanding the distinction helps you have a more informed conversation with your electrician and makes sense of any observations raised on a report.

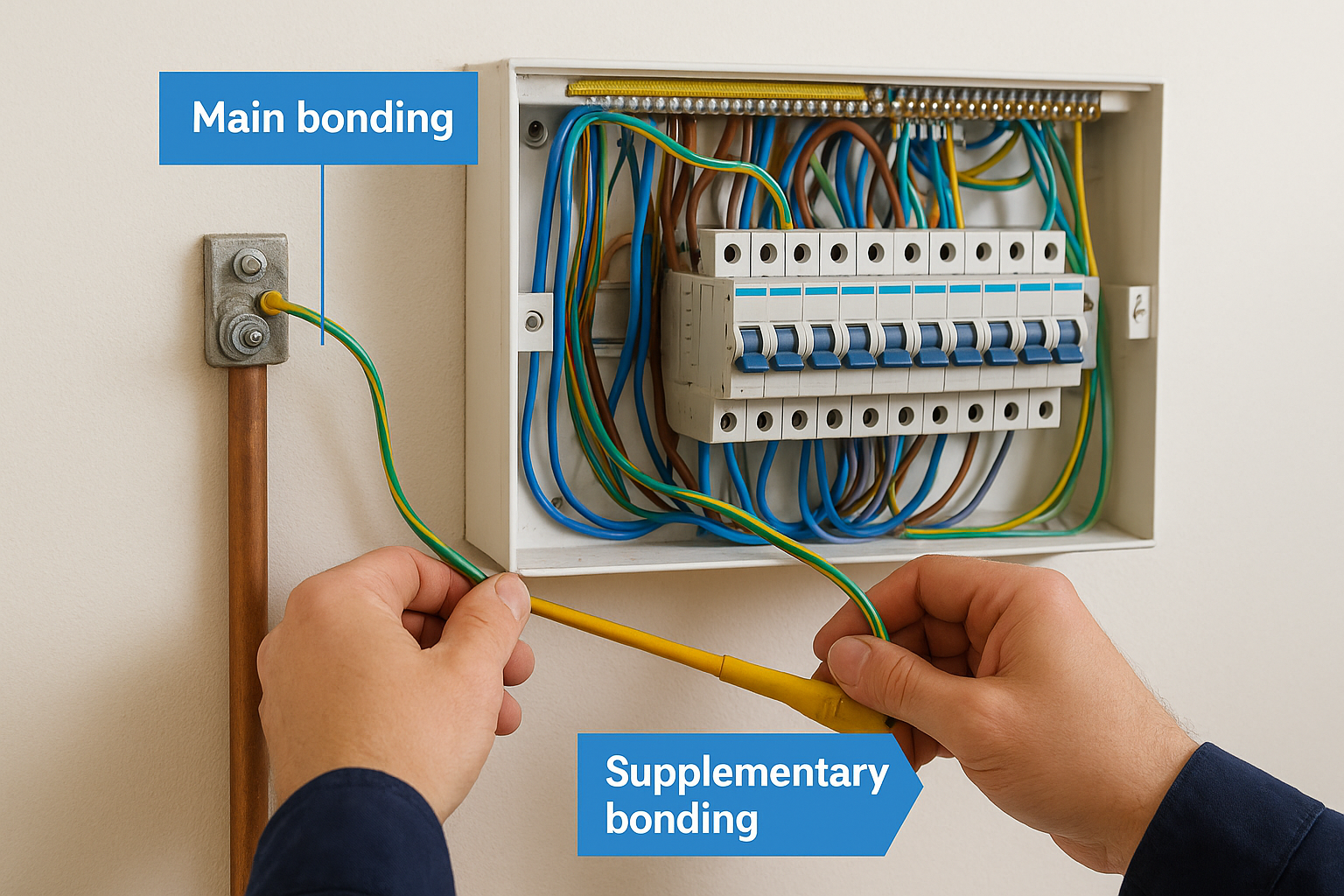

How they differ in scope and location

Main bonding operates at the building entry point, connecting incoming metallic services such as gas pipes and water mains to the main earthing terminal at or near your consumer unit. Supplementary bonding, by contrast, works at room level, linking metallic parts within a defined zone to each other and to earth. Getting supplementary bonding explained alongside main bonding makes it clear why one does not automatically replace the other. Your property needs both to be correctly installed, sized, and tested before it can be considered fully compliant.

Correct main bonding reduces risk at the building level, but it does not automatically remove the need for supplementary bonding in every location.

When supplementary bonding is needed in homes

Whether your home requires supplementary bonding depends primarily on when it was wired and the quality of your current earthing arrangement. The 18th Edition of the IET Wiring Regulations (BS 7671) clarified that supplementary bonding is not always mandatory, but the conditions for omitting it are specific. Your electrician needs to verify these conditions are genuinely met, not simply assume they are.

When the 18th Edition permits omission

The regulations allow supplementary bonding to be omitted in a special location if every circuit serving that area meets the disconnection times required by the standard, and all circuits are protected by an RCD with a residual operating current no greater than 30mA. This applies when the circuits feeding socket outlets, lighting, and fixed equipment in the room all disconnect fast enough under fault conditions to limit shock risk. Where these criteria are confirmed, the RCD provides sufficient protection on its own.

If your consumer unit was upgraded relatively recently and all circuits feeding wet areas are RCD-protected, your installation may legitimately meet these conditions without any supplementary bonding present.

When supplementary bonding remains necessary

Older properties wired before modern RCD protection became standard often lack the circuit protection needed to satisfy the omission criteria. In these cases, supplementary bonding stays a code requirement, not an optional upgrade. During an EICR, your engineer will identify whether the installation meets the omission conditions or whether bonding conductors must be installed to achieve compliance.

Bathrooms and other special locations

Bathrooms hold a specific position in the wiring regulations because water dramatically reduces skin resistance, increasing the danger posed by any electrical fault. The IET Wiring Regulations classify bathrooms as special locations under Section 701, applying stricter rules around equipment placement, circuit protection, and bonding than those applied to the rest of your home.

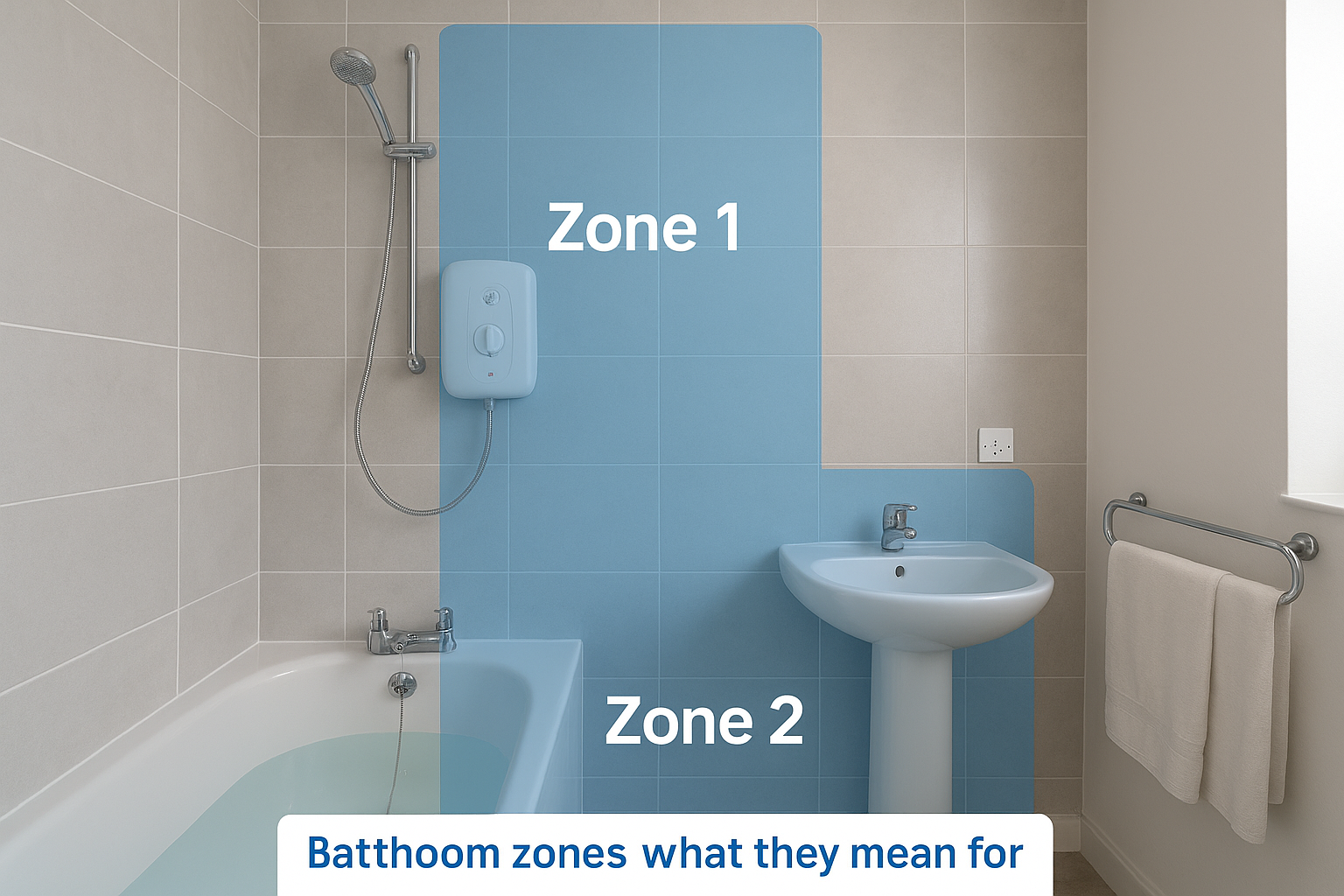

Bathroom zones and what they mean for bonding

BS 7671 divides the bathroom into defined zones based on proximity to the water source. Zone 0 sits inside the bath or shower tray itself, Zone 1 directly above it, and Zone 2 extends outward from there. These zones dictate which equipment is permitted in each area, and any supplementary bonding present must cover all exposed metallic parts within the entire defined space, not just those closest to the water. Your electrician will not bond one pipe and leave adjacent metalwork unconnected, because any gap in the arrangement undermines the equipotential protection the bonding is meant to provide.

Getting supplementary bonding explained in the context of bathroom zones helps you see why a partial installation can be as problematic as no installation at all.

Other locations treated as special

Swimming pools, hot tub enclosures, saunas, and agricultural premises each carry their own dedicated section within BS 7671. Each of these locations applies bonding rules comparable to bathrooms because water, steam, or outdoor exposure creates elevated shock risk. If your property includes any of these spaces, your electrician will assess bonding requirements specific to that location rather than applying the standard domestic rules.

Sizes, connections, and testing basics

Getting supplementary bonding explained is only part of the picture. You also need to understand the practical details of how the conductors are sized, how connections are made, and what an electrician checks when they test the system.

Conductor sizes and connection requirements

The minimum conductor size for supplementary bonding depends on whether both parts are earthed or just one. Where both metallic parts are connected to a protective conductor, a minimum 2.5mm² copper conductor applies if it is mechanically protected, or 4mm² if it runs without mechanical protection. Where only one part is earthed, the conductor must be at least 4mm². Every connection uses a dedicated bonding clamp stamped with the relevant British Standard, and each clamp must carry a permanent safety label warning that it is part of an electrical installation and must not be removed.

A missing label or an unmarked clamp is flagged as a defect on an EICR, even if the conductor itself is correctly sized and fitted.

What testing involves

Your electrician tests supplementary bonding using a continuity test, confirming that the resistance between bonded parts falls within the limits set by BS 7671. They also carry out a visual inspection of every clamp, checking for corrosion, looseness, and correct labelling. Both checks are required to satisfy the inspection and testing requirements of the regulations. If your EICR highlights bonding deficiencies, remedial work should be completed before the installation can be certified as satisfactory.

Key takeaways

With supplementary bonding explained from first principles through to testing, you now have a clear picture of what it does and when your home actually needs it. Supplementary bonding equalises electrical potential between metallic parts in a defined zone, reducing shock risk in wet areas where a fault could otherwise drive current through your body. It operates at room level, which is a fundamentally different function from main bonding at your building's entry point.

Your installation may legitimately omit supplementary bonding if every circuit in the zone carries 30mA RCD protection and meets the disconnection times required by the 18th Edition. Older properties frequently fall short of these conditions, making bonding conductors a code requirement rather than a recommendation. Conductor sizing, clamp labelling, and continuity testing all form part of a compliant installation, and any gaps will appear as defects on your EICR.
