What Does Thermal Imaging Detect? Faults, Heat Loss & More
Thermal imaging cameras detect infrared radiation, the heat energy that every object emits, and convert it into a visible image. So what does thermal imaging detect in practical terms? Everything from overheating electrical connections and hidden moisture ingress to poor insulation and underperforming heating systems. It's a non-invasive way to see problems that are otherwise completely invisible to the naked eye.
At Electrical Testing London, we use thermal imaging inspections as part of our electrical testing and compliance services across London and the South East. Our engineers rely on this technology daily to identify faults in electrical installations, consumer units, and distribution boards before they escalate into costly repairs, or worse, fires. It's one of the most effective diagnostic tools available for residential and commercial properties alike.
This article breaks down exactly what thermal imaging can and can't detect, how the technology works, and where it's most commonly applied. Whether you're a landlord checking a rental property, a business owner maintaining compliance, or a homeowner investigating unexplained energy bills, you'll find a straightforward explanation of what to expect. We'll also cover how thermal imaging fits into broader electrical safety inspections and when it makes sense to book one.

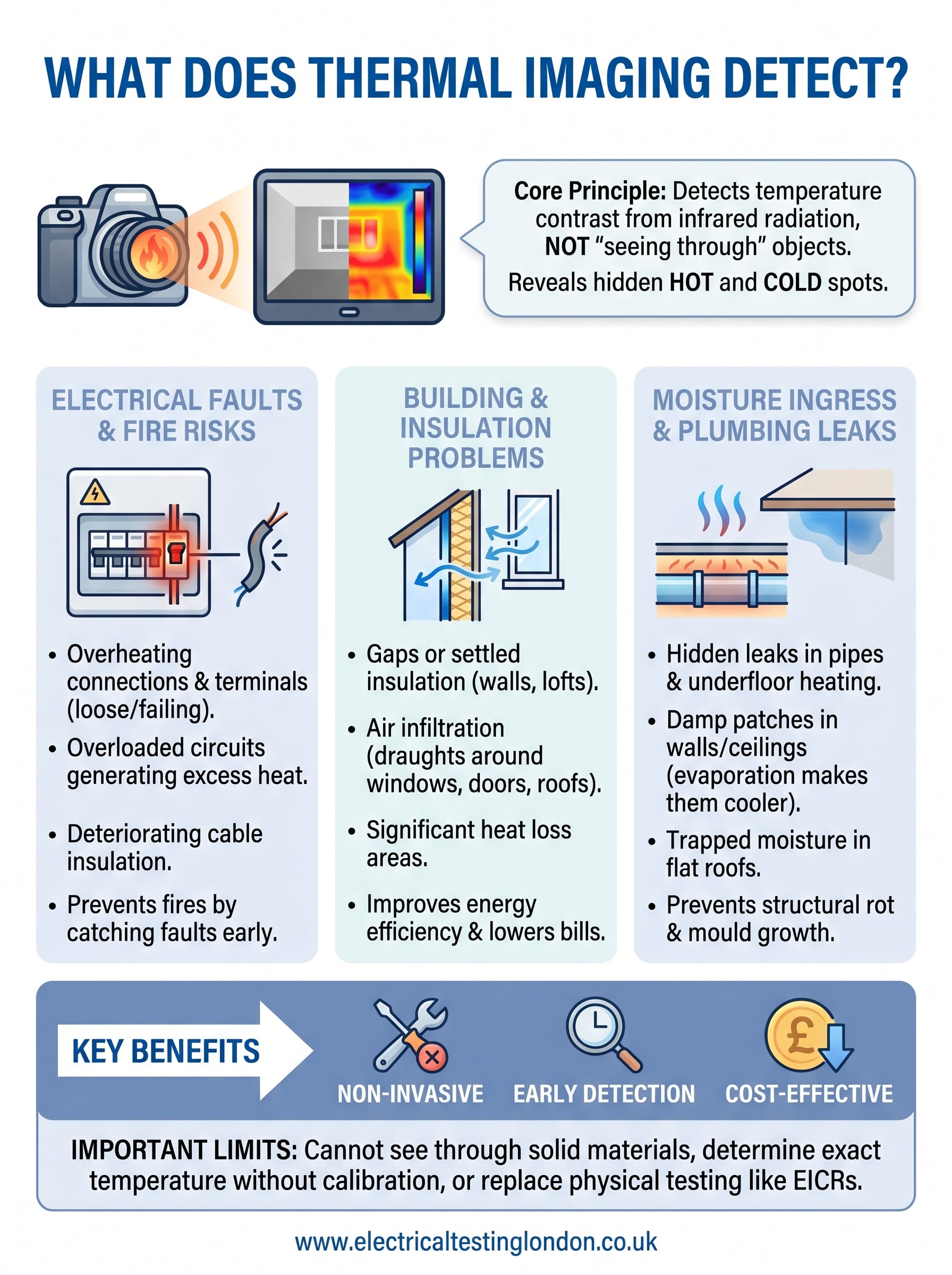

What thermal imaging detects in plain English
Every object above absolute zero emits infrared radiation, and a thermal camera captures that radiation and converts it into a colour-mapped image. Warmer areas appear in bright oranges, yellows, or reds, while cooler areas show up as blues and purples. The camera doesn't see through walls or floors, but it picks up surface temperature variations that point directly to what's happening underneath or behind them. That's what makes the technology so useful for property inspections, electrical surveys, and building diagnostics.
Heat and temperature differences
When you ask what does thermal imaging detect at its most fundamental level, the answer is temperature contrast. The camera identifies hot spots and cold spots across any surface, and the patterns those variations create tell an experienced engineer what's causing them. A radiator that's cooler at one end suggests a blockage. A cold patch on a ceiling could indicate missing insulation. A section of floor that's warmer than the rest might point to a leaking underfloor heating pipe. None of these issues are visible without cutting into the structure.
Temperature contrast is the core principle: if something is hotter or colder than it should be, thermal imaging will show it.
Here are the most common types of temperature anomaly a thermal camera can detect during a property inspection:
- Electrical hot spots in consumer units, distribution boards, and wiring connections
- Cold zones in walls and ceilings caused by gaps or damaged insulation
- Warm patches on floors from leaking underfloor heating pipes
- Moisture-affected areas that appear cooler or warmer than surrounding dry surfaces
- Air infiltration points around windows, doors, and roof junctions

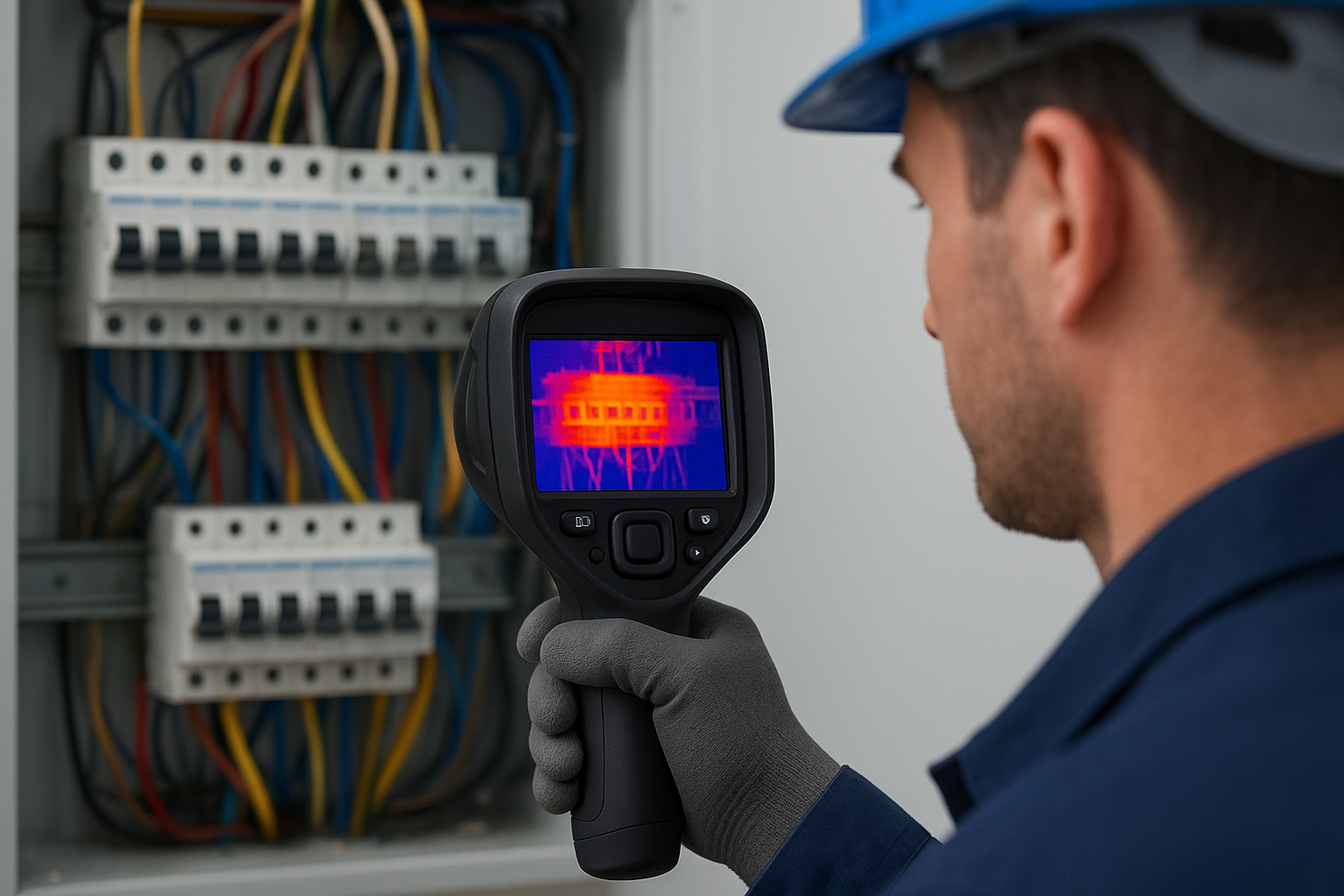

Electrical faults and overloaded components
Electrical faults generate heat long before they cause a visible problem or trip a breaker. A loose connection in a consumer unit creates resistance, and that resistance generates additional heat that radiates outward in a way a thermal camera captures clearly. An engineer scanning a distribution board can pinpoint exactly which terminal or circuit is running hotter than the rest, giving a precise location to investigate further.
Overloaded circuits, failing components in commercial equipment, and deteriorating cable insulation all produce distinct thermal signatures that stand out against healthy components. Catching these faults early reduces repair costs significantly and, more importantly, reduces the risk of fire. Thermal imaging is one of the few non-invasive methods that can find these problems before they escalate into emergencies.
Moisture, damp and insulation
Water affects how a surface retains and releases heat. Damp areas within a wall or ceiling often show up as cooler patches because evaporation draws heat away from the surface. In some cases, particularly after rain or when heating has been running for a while, trapped moisture can appear warmer than the surrounding dry areas due to its higher thermal mass. Either way, the contrast stands out clearly, and an experienced engineer can distinguish moisture from other causes of temperature variation.
Insulation gaps behave differently. A well-insulated wall holds heat relatively evenly when the building is warm inside and cold outside. Gaps or settled sections appear as cold streaks or irregular patches in the thermal image. Air leakage around window frames, door seals, or roof junctions creates distinctive cold zones where outside air enters the building envelope. Identifying these areas without thermal imaging means guesswork or destructive investigation, but with it, you get a clear picture of exactly where your property is losing energy.
Why thermal imaging matters for property safety
Property safety issues rarely announce themselves. Electrical faults, moisture ingress, and insulation failures develop silently over months or years, and by the time you notice a visible sign, the underlying problem is often already significant. Thermal imaging gives you a way to identify these problems at an early stage, when they're still straightforward to address and haven't caused secondary damage elsewhere in the property.
Electrical safety and fire risk
Most electrical fires in UK properties don't start because of a dramatic or sudden failure. They start because a loose terminal or an overloaded circuit generates heat continuously until insulation degrades or surrounding materials ignite. Electrical faults remain one of the leading causes of accidental house fires across the UK, and thermal imaging is one of the few tools that can detect these developing faults before they reach a dangerous temperature.
Catching an overheating connection during a routine thermal inspection is the difference between a simple repair and a serious fire.
Regular thermal surveys give landlords, property managers, and business owners documented evidence that their electrical installation has been checked beyond what a standard visual inspection covers. That documentation matters for insurance purposes and for demonstrating compliance with health and safety obligations, particularly in commercial premises where employer responsibilities are clearly defined.
Protecting your property from damp and heat loss
Water damage and poor insulation cause structural deterioration that becomes expensive once it takes hold. A damp patch that goes undetected for a full winter can lead to timber rot, mould growth, and damage to internal finishes that costs far more to remediate than the thermal survey itself. Identifying moisture ingress early means you can address the source directly before it spreads or causes a secondary problem like compromised air quality.
Heat loss is a closely connected concern. Properties that perform poorly thermally cost significantly more to heat, and landlords in the UK now face minimum energy efficiency requirements under current regulations. Thermal imaging helps you understand exactly where your property is losing heat, so any improvement work is targeted and cost-effective rather than speculative.
Understanding what does thermal imaging detect in a property context means recognising it as a preventative tool, not just a reactive diagnostic one. The information it provides allows you to act before issues become structural, costly, or genuinely dangerous to the people inside the building.
How thermal imaging works and what affects results
A thermal camera contains a specialist sensor called a microbolometer that detects infrared radiation emitted from surfaces rather than capturing visible light. The sensor samples temperature data from thousands of individual points across its field of view and converts that data into a colour-mapped image in real time. Warmer areas appear as yellows, oranges, and reds, while cooler areas show as blues and purples. The result is a clear visual map of surface heat distribution that a qualified engineer reads and interprets much like a doctor reads a diagnostic scan.
The physics behind the image
Every material emits infrared radiation at a rate determined by two factors: its temperature and its emissivity. Emissivity is a value that describes how efficiently a surface radiates heat compared to a theoretically perfect emitter. Most common building materials, including brick, plaster, timber, and concrete, have high emissivity values, which means the camera reads their temperatures accurately without any correction applied. Shiny metallic surfaces behave differently because they reflect surrounding radiation rather than emitting their own, which can produce misleading readings if an engineer fails to account for it before analysing the image.
Emissivity is the reason a qualified engineer interprets the results rather than simply reading the camera's output at face value.
This distinction matters in electrical surveys as well. Bare copper busbars or unpainted metal enclosures require experienced judgement to assess correctly, because their reflective properties can cause the camera to understate their actual surface temperature. A properly trained engineer will use reference points and adjust interpretation based on the material properties of whatever is being scanned.
Conditions that affect accuracy
Understanding what does thermal imaging detect also means understanding the conditions under which the technology delivers reliable data. Indoor surveys produce the most useful results when there is at least a ten-degree Celsius difference between the inside and outside of the building. That thermal gradient creates the contrast that makes insulation gaps, moisture, and air infiltration visible in the image rather than lost in the background noise.
Timing and weather play a direct role in result quality too. Direct sunlight striking an external wall before or during the survey raises surface temperatures artificially, which can mask genuine heat loss. Rain in the hours before a survey cools surfaces unevenly and distorts moisture-related readings. A qualified engineer will always assess conditions on arrival and will reschedule the inspection if the environment would reduce the reliability of the data you receive.
Common issues a thermal camera can reveal
Knowing what does thermal imaging detect in practical terms helps you understand what a survey report will contain. Most of the faults thermal cameras find would stay hidden without destructive investigation or visible damage appearing first. The technology applies across a broad range of building and electrical issues that qualified engineers encounter regularly across London properties.
Electrical faults in panels and connections
Loose terminals, failing breakers, and overloaded circuits all generate excess heat that a thermal camera captures clearly against the cooler background of healthy components. A qualified engineer scanning your consumer unit or distribution board can pinpoint exactly which circuit or terminal is running above its safe operating temperature, giving you a specific fault location rather than a vague area to investigate.
An overheating terminal that takes five minutes to identify with thermal imaging could take hours to locate through manual testing alone.
Deteriorating cable insulation and poorly made connections in socket circuits also produce characteristic hot spots. Finding these early gives you the opportunity to carry out a simple repair before the fault generates enough sustained heat to damage surrounding materials or trip a breaker at an inconvenient moment.

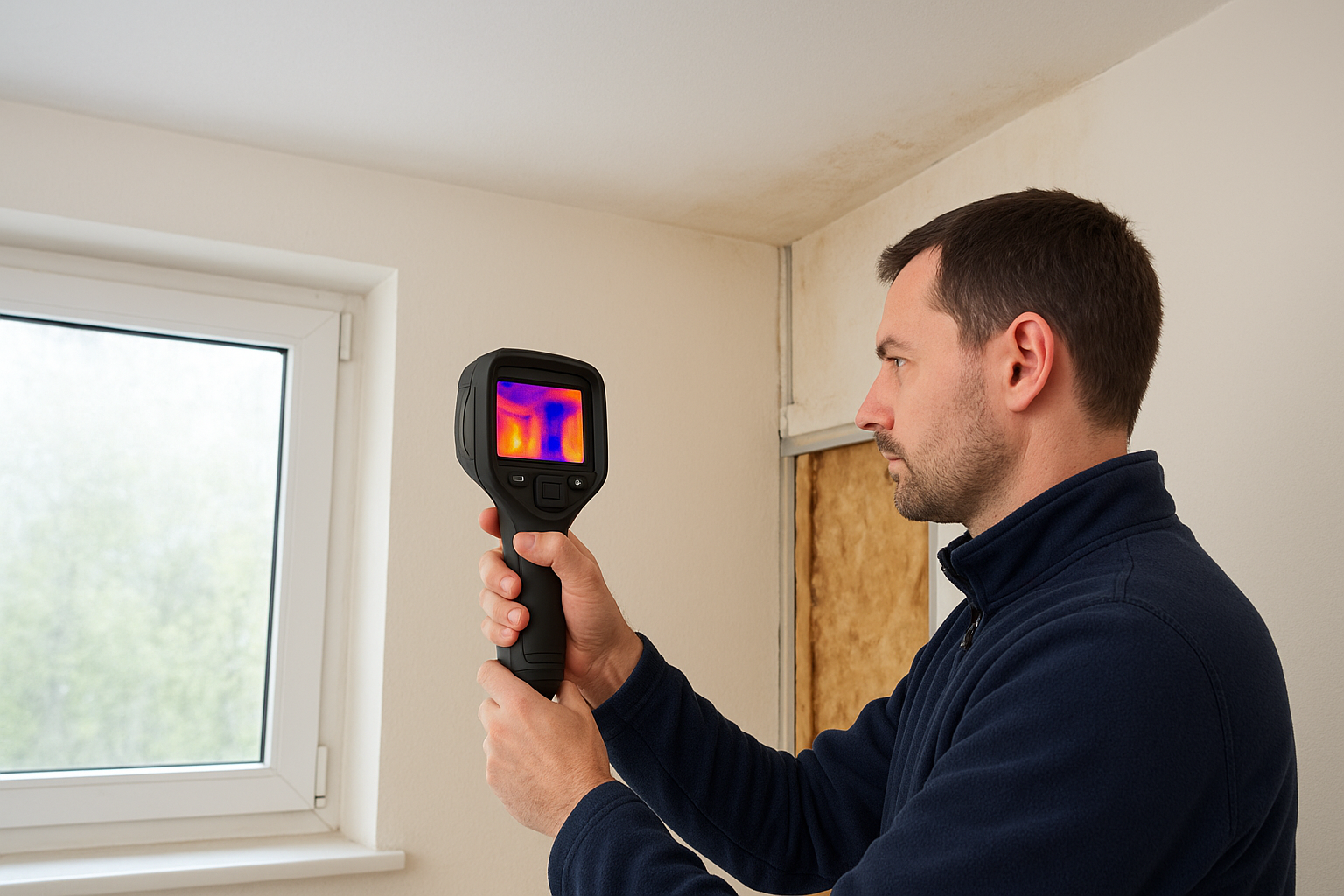

Building envelope and insulation problems
Gaps in wall and ceiling insulation show up as cold patches when the building is heated and the outside temperature is significantly lower. Air infiltration around window frames, door seals, and roof junctions creates distinctive cold zones that reveal exactly where your heating is escaping rather than leaving you guessing at which areas to address.
Poorly performing or settled loft insulation reduces thermal performance steadily over time. A thermal survey gives you clear evidence of which areas need attention before you commit money to improvement work, so any remediation you carry out hits the right spots rather than covering the problem only partially.
Plumbing leaks and underfloor heating faults
Leaking water pipes hidden inside floors or walls create localised warm or cool zones depending on pipe temperature and surrounding conditions. Underfloor heating systems are especially well-suited to thermal imaging because a blocked or failed section of pipe appears immediately as a cold strip against the warmer surrounding floor surface.
Flat roof surveys also benefit from thermal imaging. Trapped moisture beneath the roof membrane appears clearly after the surface cools following a warm day, revealing exactly how far any water ingress has spread before you instruct remedial work.
Limits, myths and when you need other tests
Thermal imaging is a powerful diagnostic tool, but understanding what does thermal imaging detect also means being clear about what it cannot do. The camera reads surface temperature differences and nothing more. It does not look inside walls, identify specific substances, or replace the laboratory analysis, load testing, and contact measurement that other diagnostic methods provide. Knowing these limits helps you interpret a survey report accurately and act on it effectively.
What thermal imaging cannot do
Thermal imaging cannot tell you the exact temperature of a component without accounting for material emissivity, and it cannot identify the root cause of a fault on its own. If the camera shows a hot spot on a distribution board, the report tells you where to investigate further, not what the specific defect is. A qualified engineer will always recommend follow-up investigation for any significant anomaly rather than treating the thermal image alone as a complete diagnosis.
Thermal imaging identifies where a problem exists, not the full story behind it, so treat it as the starting point for any repair, not the final word.
A common myth is that thermal cameras can detect hidden structural defects or voids inside solid materials. They cannot. The camera picks up the thermal effect of those issues at the surface, which means a cavity or gap in insulation only shows up when the conditions create enough temperature contrast to make the surface effect visible. In the wrong conditions, genuine faults can look normal, which is why survey timing and weather conditions matter so much.
When you need additional testing
Thermal imaging works alongside other tests rather than replacing them. Electrical Installation Condition Reports (EICRs) involve detailed physical testing of circuits, insulation resistance, and earthing continuity that no camera can replicate. If a thermal survey highlights an anomaly in your consumer unit, you need a qualified electrician to carry out targeted electrical testing at that location before any repair work begins.
Moisture surveys identified through thermal imaging often need pin probe or radio frequency moisture meters to confirm whether surface temperature variations are genuinely water-related or caused by other factors like cold bridging. Combining both methods gives you reliable, actionable results rather than a single data source that could be misread in isolation.
Wrap-up and what to do next
Thermal imaging gives you a reliable, non-invasive way to identify problems that standard visual checks miss entirely. What does thermal imaging detect in practice covers a wide range: overheating electrical connections, moisture ingress, insulation gaps, and plumbing faults that would otherwise stay hidden until they cause visible or costly secondary damage. The technology works best when conditions are right and when a qualified engineer interprets the results rather than simply reading the camera output at face value.
Acting on a thermal survey makes sense before problems develop into structural or electrical emergencies. If you manage a rental property, run a commercial premises, or simply want to understand your home's electrical and thermal condition, a targeted thermal imaging inspection gives you the specific evidence you need to act. Book yours through Electrical Testing London and get a clear report that tells you exactly where your property needs attention.
