What Is A Consumer Unit? Fuse Box Explained For UK Homes
If you've ever flipped a switch after a power trip or heard an electrician mention your "fuse box," you've already interacted with the most important safety device in your home. But what is a consumer unit exactly, and why does it matter so much? It's the hub that controls and protects every electrical circuit in your property, from your kitchen lights to your boiler.
Many homeowners across London and the South East still have outdated fuse boxes that no longer meet current regulations. Others aren't sure whether their unit needs replacing or simply inspecting. At Electrical Testing London, our engineers carry out electrical inspections and consumer unit replacements daily, so we see first-hand how much confusion surrounds this one piece of equipment. That's precisely why we've written this guide, to cut through the jargon and give you a straight answer.
Below, we'll explain how a consumer unit works, what's inside it, how it differs from older distribution boards, and when you might need to upgrade yours. Whether you're a homeowner, a landlord, or buying a property, this guide covers what you actually need to know, written by qualified engineers with over a decade of hands-on experience in UK electrical systems.
Why a consumer unit matters for safety and compliance
Your consumer unit is not just a box fixed to a wall. It is the single point of control for every electrical circuit in your home, and when it fails or falls below current standards, the consequences range from nuisance trips to house fires and electric shocks. Understanding what is a consumer unit and why it needs to meet current regulations is not optional knowledge for homeowners and landlords in England; it is a practical necessity backed by law. Getting it wrong can expose you to financial penalties, insurance problems, and real physical danger.
The legal requirements for landlords and property owners
In England, landlords with privately rented properties must comply with the Electrical Safety Standards in the Private Rented Sector (England) Regulations 2020. These regulations require that the electrical installation, including the consumer unit, is inspected at least every five years by a qualified electrician and that any C1 or C2 faults are remedied within 28 days of receiving the inspection report. Failure to comply can result in fines of up to £30,000 imposed by local authorities, and councils have the power to arrange remedial work themselves and recover the cost directly from you.
If your property still has an older fuse board with rewirable fuses or a unit without RCD protection, it is very likely to fall short of the standards set out in BS 7671, the current UK wiring regulations.
Even if you are not a landlord, your mortgage provider or insurer may require evidence of a compliant consumer unit before offering cover or lending. Many insurers will not pay out on a claim if the electrical installation is found to be non-compliant at the time of the incident, which puts both your finances and your personal safety at risk. Checking your policy wording now costs nothing; finding out after a claim is far more damaging.
What a non-compliant consumer unit can cost you
An outdated or damaged consumer unit creates real electrical hazards that develop quietly over time. Wiring that overheats without tripping, circuits that lack RCD protection, and enclosures that do not contain an arc or fault correctly all raise the risk of a fire starting inside your walls. According to data published by the National Fire Chiefs Council, electrical faults remain one of the leading causes of accidental house fires in the UK each year, and many of those fires trace back to aging or unsuitable consumer units.
Beyond the fire risk, a non-compliant unit affects how quickly you can sell or let a property. Buyers and letting agents increasingly request EICR certificates as part of routine checks, and a failed report caused by an inadequate consumer unit will stall a sale or block a tenancy agreement until remedial work is complete. Reacting under a deadline is almost always more expensive and more stressful than acting ahead of time on your own terms.
Your best starting point, if you are unsure whether your current unit meets the 18th Edition of the Wiring Regulations (BS 7671), is a professional electrical inspection carried out by a qualified engineer. That gives you a clear, documented picture of exactly where your installation stands before any problem has the chance to escalate.

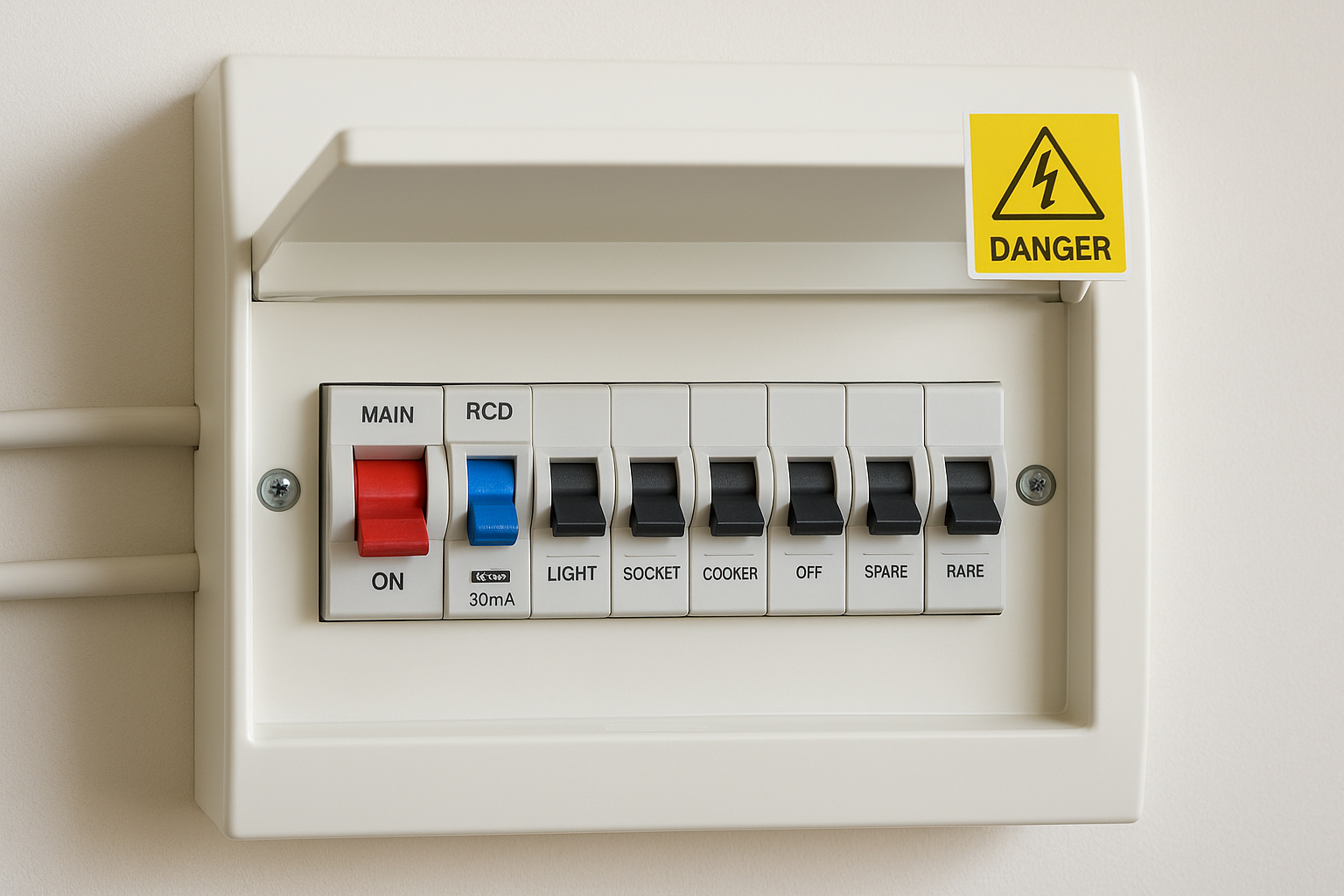

How a consumer unit works in a UK home
When mains electricity enters your property, it arrives through the service head supplied by your energy provider before passing through your electricity meter. From there, it flows directly into your consumer unit, which is the point where your home's entire electrical supply is divided into individual circuits and protected from faults. Every light, socket, and fixed appliance in your property draws its power through one of those circuits.
How electricity is divided into circuits
Inside the unit, a main switch controls the total incoming supply and allows a qualified electrician to isolate your entire installation safely. From the main switch, power flows to a series of individual circuit breakers, each one dedicated to a specific part of your property, such as upstairs lighting, ring main sockets, or a cooker circuit. This separation means that a fault on one circuit does not automatically affect every other circuit in your home.
Each circuit is sized according to the load it carries. A lighting circuit typically runs at 6 amps, while a ring main for sockets usually operates at 32 amps, and a dedicated cooker circuit may need 40 or 45 amps. Matching the correct breaker rating to each circuit is critical; the wrong rating means a circuit could carry far more current than its wiring can handle before anything trips.
How the protection devices respond to a fault
When something goes wrong, such as a faulty appliance or a wiring defect, the protection devices inside your consumer unit act within milliseconds. A miniature circuit breaker (MCB) detects an overload or short circuit and trips the relevant circuit automatically. If the fault involves a residual current, such as electricity leaking to earth through a person or a damaged cable, the residual current device (RCD) cuts the supply far faster than any fuse could.
RCDs can respond to a dangerous fault in as little as 30 milliseconds, which is fast enough to prevent a fatal electric shock in most circumstances.
Understanding what is a consumer unit becomes much clearer once you see it as an active protection system rather than a passive junction box. That distinction matters when you start looking at what is physically inside the unit.

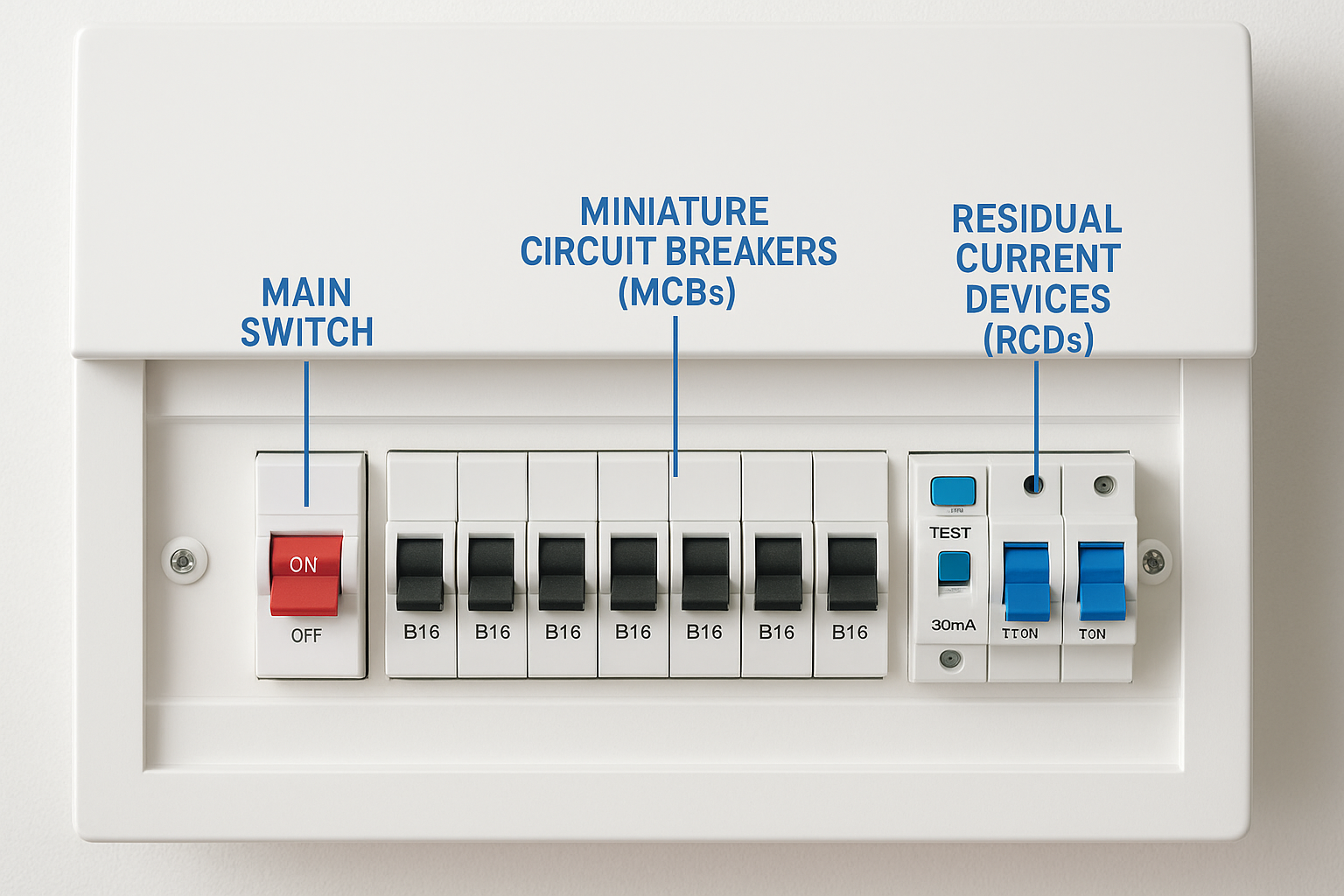

Key parts inside a modern consumer unit
A modern consumer unit contains three core components that work together to control and protect your electrical installation. Knowing what each part does helps you understand what is a consumer unit beyond just its outer casing, and gives you a clearer picture of what to look for when an engineer assesses or replaces yours.
The main switch
The main switch sits at the far left of your consumer unit and controls the entire incoming electricity supply to your home. Turning it off isolates all the circuits simultaneously, which is what an electrician does before carrying out any work on your installation. Some properties have a single main switch, while others have two, one for each RCD bank, which gives you more flexibility when tracing a fault without cutting power to the whole property.
Miniature circuit breakers (MCBs)
Miniature circuit breakers, or MCBs, are the individual switches lined up across the inside of your unit. Each one protects a single dedicated circuit, such as your upstairs lighting, your ground-floor sockets, or your immersion heater. When a circuit draws more current than it is rated for, the MCB trips automatically and cuts the supply to that circuit alone, leaving the rest of your home unaffected.
Unlike the old rewirable fuses they replaced, MCBs reset with a simple switch, which makes fault-finding faster and eliminates the risk of someone fitting incorrect fuse wire that bypasses the protection entirely.
Residual current devices (RCDs)
An RCD monitors the balance of current flowing through the live and neutral conductors of every circuit it covers. If it detects even a small imbalance caused by electricity leaking to earth, it trips within milliseconds to cut the supply before serious harm occurs.
The Health and Safety Executive recommends RCD protection for all socket outlets used with portable equipment, as it significantly reduces the risk of fatal electric shock.
Modern consumer units must include RCD protection under the 18th Edition of BS 7671, and most achieve this through a dual RCD layout or a more advanced RCBO arrangement where each circuit carries its own combined protection device.
Types of consumer units and which suits your property
Not every property needs the same setup, and understanding what is a consumer unit also means understanding that they come in different configurations depending on the size of your home and the protection level you need. The three types you will most commonly encounter in UK properties are the dual RCD unit, the high integrity RCBO unit, and the split load unit, each with different practical advantages depending on your situation.
Dual RCD consumer units
A dual RCD unit is the most widely fitted type in standard domestic properties across London and the South East. It divides your circuits into two groups, each covered by its own RCD. If one RCD trips, only half your circuits lose power, making it easier to identify a faulty appliance without cutting off everything at once. This layout suits most two or three-bedroom homes and meets the requirements of BS 7671 at a lower cost than more advanced configurations.
The main limitation of a dual RCD board is that a single faulty appliance can still knock out several circuits at once, which becomes disruptive in a larger or busier household.
High integrity consumer units
High integrity units, often called RCBO boards, give each individual circuit its own combined MCB and RCD device. A fault on one circuit affects only that circuit, so the rest of your property stays fully powered while you locate and fix the problem. This makes RCBO boards particularly well suited to larger homes, HMOs, and commercial premises where minimising disruption is a practical priority rather than a preference.
A secondary benefit is simpler fault diagnosis. Because each RCBO is independent, a tripped device points you directly to the problem circuit without any guesswork about which bank of circuits is affected.
Which type suits your property
Your decision depends on the number of circuits your property requires, your budget, and how much disruption you can tolerate if a fault develops. Smaller homes generally do well with a dual RCD unit, while larger properties or any property with commercial or HMO use will benefit from the resilience of a fully RCBO-protected board. A qualified engineer can assess your current installation and tell you exactly which specification applies to your circumstances.
When to upgrade or replace a consumer unit
Knowing what is a consumer unit is only half the picture. The other half is recognising when yours has reached the point where it needs replacing rather than simply inspecting. Age, configuration, and visible condition all influence that decision, and acting on the right signals early keeps costs lower and your property safer.
Signs your current unit needs attention
Several indicators point clearly to a consumer unit that is no longer fit for purpose. Rewirable fuses instead of MCBs are the most obvious red flag. If you open your unit and see ceramic or porcelain fuse holders rather than individual switches, your installation predates modern protection standards by decades. Similarly, a board that trips frequently, runs warm to the touch, or shows scorch marks or discolouration needs immediate professional attention, as these are signs of a fault developing inside the enclosure.
If your consumer unit is made from older bakelite material or housed in a wooden enclosure, replace it immediately, as these materials do not meet the fire containment requirements set out in BS 7671.
Other situations that typically trigger a replacement include adding a new circuit such as an EV charger or electric shower when there are no spare ways left in the board, or undertaking a significant home extension that increases the number of circuits your installation needs to support.
When a routine inspection triggers a replacement
An Electrical Installation Condition Report (EICR) carried out by a qualified engineer will identify any consumer unit deficiencies directly. A C1 or C2 code on your report means the issue poses a danger or potential danger, and you are legally required to remedy it within 28 days if you are a landlord. For homeowners, the same codes indicate that remedial work is urgent regardless of any legal obligation.
Replacement is not always a large-scale job. In many London properties, a qualified engineer can swap an outdated board for a modern RCBO unit within a single day, leaving you with a fully compliant installation and clear documentation to show your insurer, mortgage provider, or local authority.
Next steps for your consumer unit
Now that you understand what is a consumer unit and the role it plays in protecting your home, the next step is straightforward: find out whether yours meets current standards. If your board is old, lacks RCD protection, or has never been inspected, a professional assessment gives you a clear, documented answer without any guesswork. Do not wait for a fault to develop or a property transaction to expose a problem you could have resolved ahead of time.
Whether you need an inspection, a replacement, or simply a professional opinion on your current setup, Electrical Testing London's qualified engineers are ready to help across London, Greater London, and the South East. Our team carries out consumer unit replacements and full electrical inspections every day, so you get accurate advice and compliant work delivered efficiently. Request a quote for your consumer unit and we will get back to you promptly.
