What Is A Dual RCD Consumer Unit? How It Works In UK Homes

If you've ever looked inside your fuse box, or been told it needs replacing, you've probably come across the term dual RCD consumer unit. It's the most common type of consumer unit fitted in UK homes today, and for good reason. It provides a level of electrical safety that older fuse boxes simply can't match, splitting your circuits into two protected banks so that a fault on one circuit doesn't kill power to your entire property.

At Electrical Testing London, our engineers inspect and replace consumer units across London and the South East every week. A significant number of the properties we assess still rely on outdated boards with no RCD protection at all, a setup that fails current regulations and, more importantly, puts people at risk. Understanding how a dual RCD board works helps you make informed decisions about your home's electrical safety.

This article breaks down exactly what a dual RCD consumer unit is, how it protects your circuits, where it sits within UK wiring regulations, and when it might be time to upgrade. We'll also cover its limitations, because while it's a solid choice, it isn't the only option worth considering.

Why dual RCD consumer units exist

Electricity causes fires and fatal shocks when faults go undetected. Older fuse boards, the kind still found in many pre-2000 properties, offered very little protection against the two most dangerous scenarios: electric shock and sustained overcurrents that cause wiring to overheat. A rewirable fuse, or even an early MCB-only board, would interrupt a circuit when current exceeded a safe threshold, but it provided no protection against earth faults or current leaking through a person.

The limits of older fuse boards

The core problem with a traditional board is that it treats every fault the same way: wait until enough current flows to blow a fuse or trip a breaker. That approach works reasonably well for overloads caused by too many appliances on one circuit. It does almost nothing to protect you when current leaks to earth through a faulty appliance or damaged cable. In that scenario, the fault current can be small enough to avoid tripping a standard breaker, yet large enough to cause cardiac arrest or ignite surrounding materials.

A leakage current of just 30 milliamps can be lethal, which is exactly the threshold that RCD protection is designed to detect and interrupt within milliseconds.

How UK wiring regulations responded

The 17th Edition of BS 7671, introduced in 2008, made RCD protection mandatory for most new circuits in domestic properties, and the 18th Edition published in 2018 tightened those rules further. Understanding what is a dual RCD consumer unit became directly relevant for most homeowners at that point, because the dual RCD layout offered a practical and cost-effective way to meet the requirements without fitting a separate RCBO on every single circuit.

Splitting your circuits into two groups, each protected by its own RCD, means a tripping fault only cuts power to half the property, not all of it. That keeps critical circuits like your fridge or freezer running while you identify and resolve the problem.

How a dual RCD consumer unit works

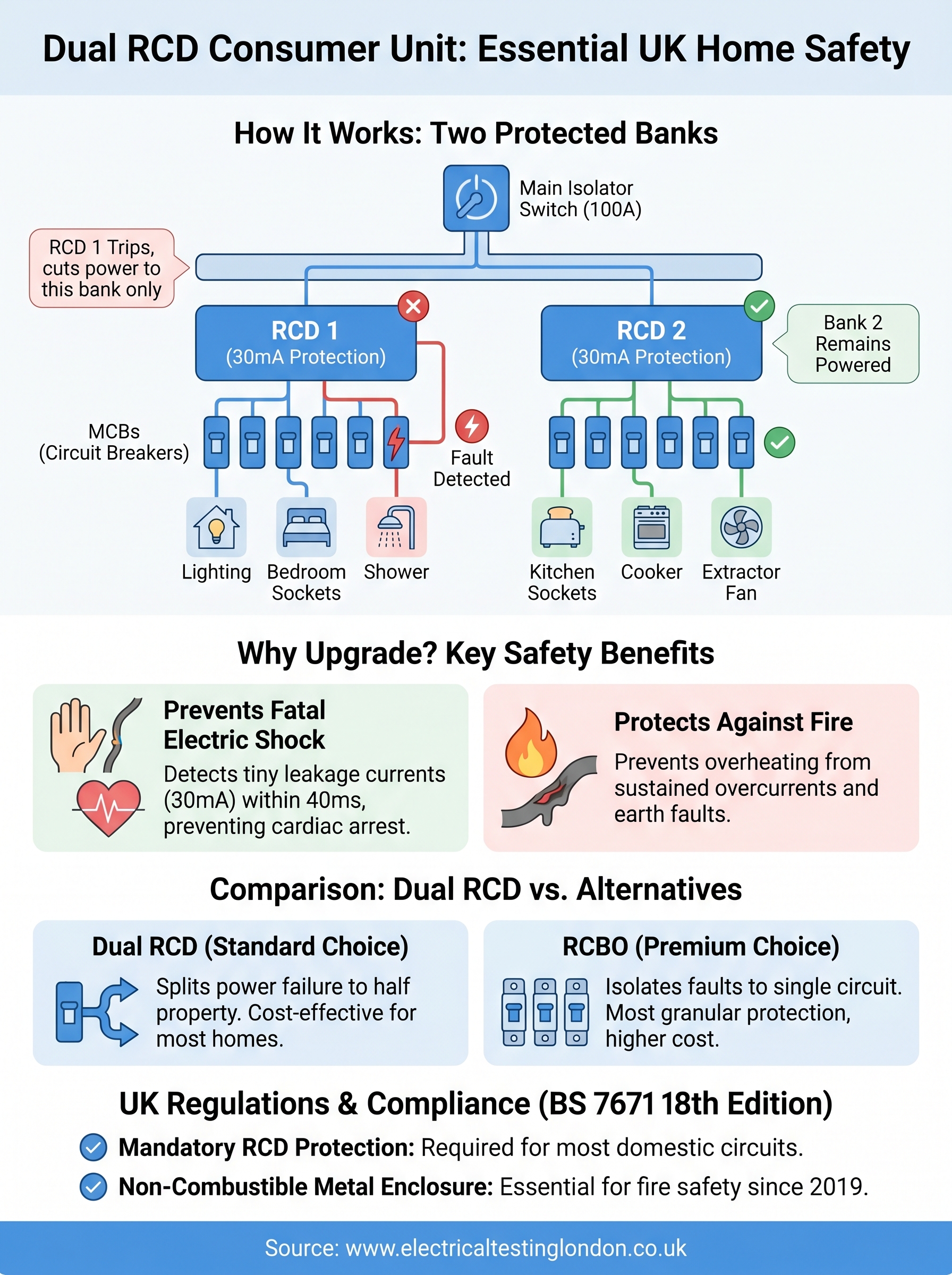

A dual RCD consumer unit contains one main isolator switch at the top, followed by two residual current devices that each protect a separate group of circuits. Every circuit in your property, whether it serves your kitchen sockets, lighting, or shower, connects to a miniature circuit breaker (MCB) that sits under one of those two RCDs.

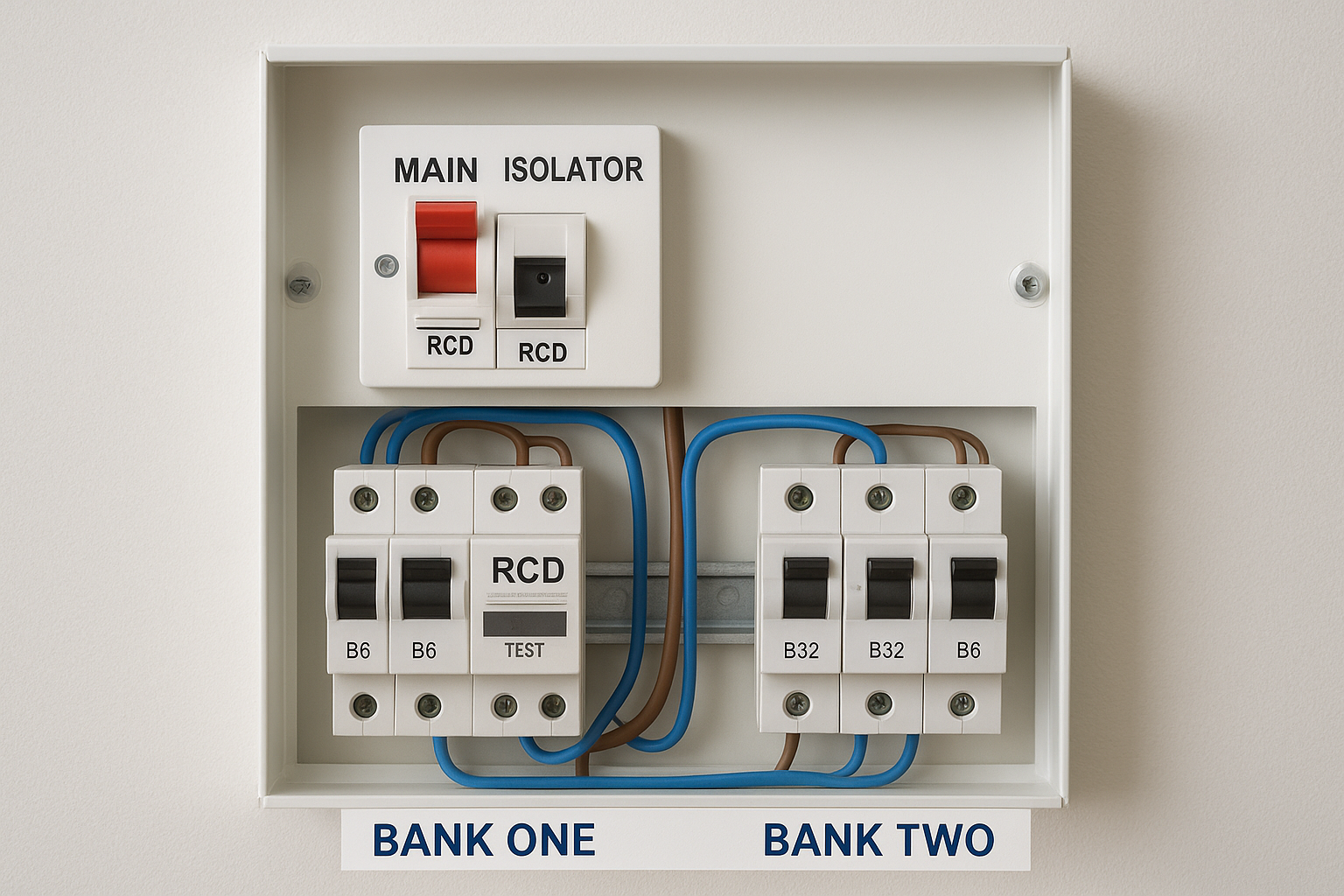

The two banks explained

Your circuits split across the two banks as evenly as possible during installation. Bank one might cover the upstairs lighting and bedroom sockets, while bank two handles the kitchen ring main, cooker, and bathroom. Each RCD monitors the current flowing in and out of its bank continuously, and if it detects a leakage of 30 milliamps or more, it disconnects that entire bank within 40 milliseconds.

That 40-millisecond response time is fast enough to prevent a fatal electric shock in most circumstances, which is why BS 7671 mandates RCD protection for the majority of domestic circuits.

What happens when the RCD trips

If a fault develops on a circuit in bank one, only bank one loses power. Your appliances connected to bank two keep running normally. This is the core design advantage if you want to understand what is a dual RCD consumer unit compared to older boards. You reset the affected RCD once you've identified and resolved the fault, and power to that half of your property returns immediately.

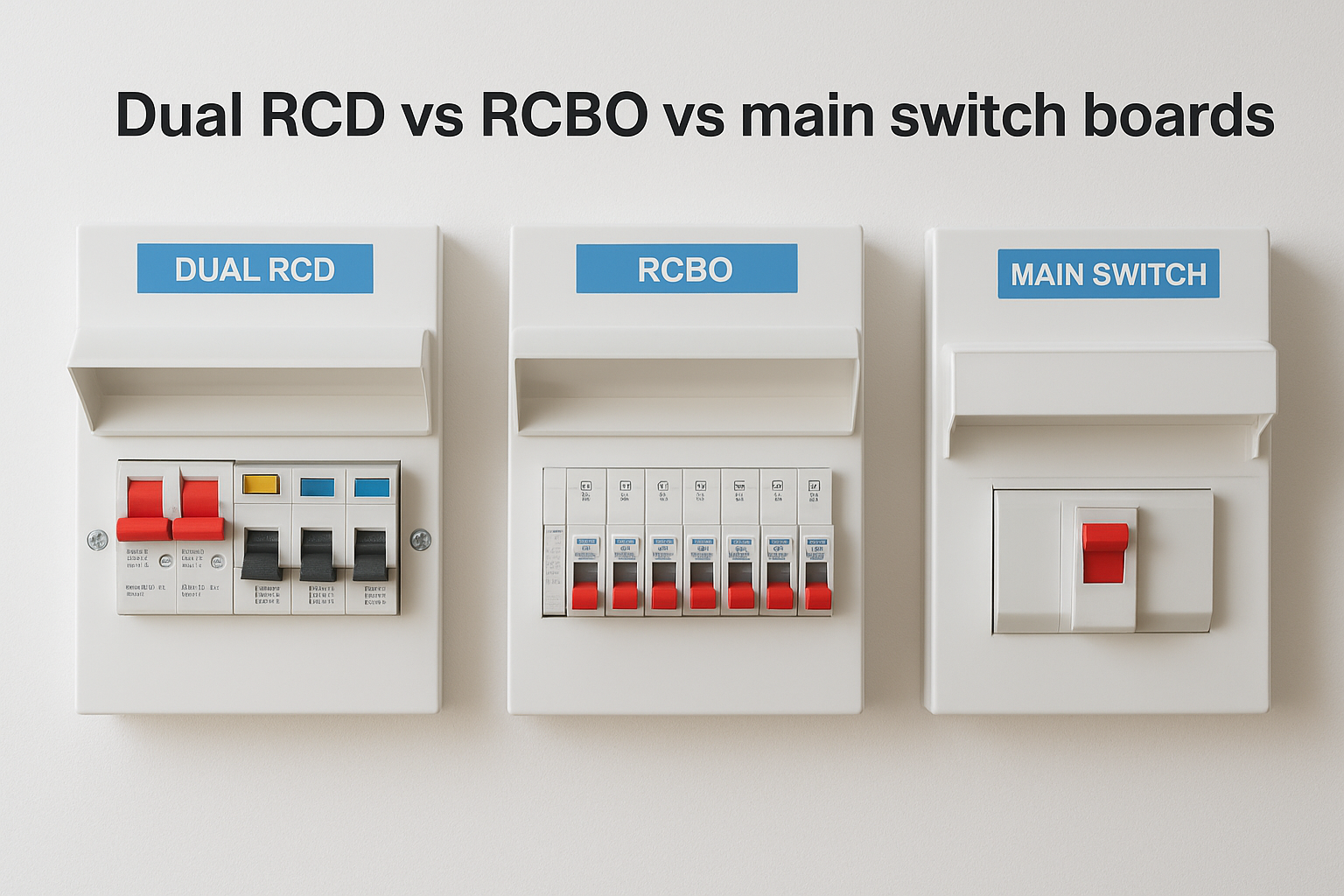

Dual RCD vs RCBO vs main switch boards

Once you understand what is a dual RCD consumer unit, the next logical question is how it compares to the alternatives. Three board types appear most often in UK residential installations: dual RCD boards, RCBO boards, and older main switch boards. Each has a different approach to circuit protection, and the right choice depends on your property's needs and budget.

RCBO consumer units

An RCBO board replaces each MCB and RCD pairing with a single combined device called a residual current breaker with overcurrent protection. Every circuit gets its own independent RCBO, which means a fault on your kitchen ring main trips only that circuit, leaving every other circuit in the property completely unaffected.

RCBO boards offer the most granular protection available, but they typically cost more to install than a dual RCD unit because each breaker is a more complex component.

Main switch boards

A main switch board contains a single isolator switch and individual MCBs with no RCD protection at all. These boards were standard before the 2008 wiring regulations update, and many older properties still have them. If your home has one, it fails to meet the requirements of BS 7671 for new or rewired circuits, and you should consider an upgrade. A main switch board offers no defence against electric shock caused by earth leakage faults, which puts anyone in your property at unnecessary risk.

When a dual RCD unit makes sense in UK homes

A dual RCD consumer unit suits the majority of standard residential properties in London and across the UK. If you're replacing an outdated main switch board or rewiring a straightforward home, the dual RCD layout provides solid RCD protection at a lower installation cost than a full RCBO board.

Properties being upgraded from older boards

If your home still runs on a fuse wire board or an MCB-only consumer unit, a dual RCD replacement is typically the right starting point. Knowing what is a dual RCD consumer unit helps here because it clarifies exactly what you gain: automatic earth fault protection on every circuit, something an older board cannot provide.

The upgrade becomes especially important if your current board has circuits with no RCD protection at all, since BS 7671 requires it for most domestic wiring.

Homes with straightforward circuit layouts and no specialist requirements are ideal candidates. If your circuits split evenly across two banks without any single-point critical needs, the dual RCD design handles everything your property requires.

Rental properties and landlord compliance

Landlords have a legal obligation to hold a valid EICR for every tenanted property. Many older rentals fail their inspection because the board provides no RCD protection. Fitting a dual RCD unit brings the installation in line with current wiring regulations and removes one of the most common reasons an EICR returns an unsatisfactory result.

For most single-household rental properties, the dual RCD board delivers full compliance without the added expense of a full RCBO installation.

Key specs and UK rules to check

Before any installation or replacement, you need to confirm that your consumer unit meets current British Standards and wiring regulations. Understanding what is a dual RCD consumer unit is only useful if the unit itself carries the correct ratings for your property's demand. Most domestic installations require a 100-amp main isolator switch, but higher-demand properties with electric heating or EV charging may need a larger incoming supply assessed first.

BS 7671 and the 18th Edition

The 18th Edition of BS 7671 is the wiring regulation standard your electrician must follow in the UK. Since 2019, it has required that consumer units in domestic properties use non-combustible metal enclosures, replacing older plastic designs that presented a fire risk. Any unit you fit must carry confirmation of compliance with this standard.

The non-combustible enclosure requirement is mandatory, not optional, so reject any quote that specifies a plastic consumer unit for a domestic installation.

RCD ratings and circuit count

Your RCD devices must operate at 30mA sensitivity for standard domestic circuit protection. Each RCD in the unit also carries a rated current, typically 63A or 80A, which must suit the total load of the circuits it protects.

Check these specs before confirming any unit:

• MCB slot count: enough ways for your existing circuits plus at least two spare for future additions
• Rated current per RCD: matched to the combined load across each bank
• RCBO compatibility: some dual RCD enclosures allow hybrid configurations if specific circuits need individual protection

Next steps

Now you know what is a dual RCD consumer unit, how it protects your circuits, and where it sits alongside RCBO boards and older main switch options. The key takeaway is straightforward: if your property still runs on a board with no RCD protection, it fails current regulations and puts everyone inside at unnecessary risk.

Your next step depends on where you are right now. If you haven't had an EICR carried out recently, that's the logical starting point, because it tells you exactly what your current board can and can't do. If your inspection has already flagged the board as unsatisfactory, a consumer unit replacement resolves the issue and brings your installation in line with BS 7671.
