What Is A Split Load Consumer Unit? Pros, Cons & Options

If you've ever opened your fuse board and noticed one side of the circuits has RCD protection while the other doesn't, you're probably looking at a split load consumer unit. It's one of the most common board types found in UK homes, especially those wired or rewired between the mid-2000s and early 2010s, and it was considered a solid step forward in electrical safety at the time.

But regulations have moved on. The current edition of BS 7671 now expects a higher level of protection across all circuits, which raises real questions about whether a split load board still meets the standard your property needs. Whether you're a landlord preparing for an EICR, a homeowner planning upgrades, or simply curious about what's behind your fuse board door, understanding how this board works matters.

At Electrical Testing London, we inspect and test these boards daily across homes and commercial premises throughout London and the South East. This article breaks down exactly how a split load consumer unit is wired, where its limitations sit compared to modern alternatives like dual RCD and RCBO boards, and what your options are if yours needs replacing.

Why split load consumer units matter

Understanding what is a split load consumer unit goes beyond the name on the board. These boards were installed across millions of UK properties during the 2000s and early 2010s, so there's a strong chance the property you own, rent out, or manage contains one right now. That makes them directly relevant to landlords, homeowners, and commercial property managers across London and the South East.

The role they played in improving safety

Before split load boards became the norm, many older properties relied on rewirable fuse boards or cartridge fuse units with no RCD protection whatsoever. An RCD (Residual Current Device) detects an imbalance in electrical current and disconnects the circuit within milliseconds, protecting people from electric shock and reducing fire risk. Split load consumer units introduced RCD coverage to a portion of circuits for the first time in many homes, and that represented a genuine safety improvement.

Adding RCD protection to even half of your circuits significantly reduced the risk of fatal electric shock compared to having no RCD protection at all.

Why they still show up in EICR reports

A large proportion of UK properties still have split load boards in place. If you're a landlord, your next EICR inspection will flag which circuits carry RCD protection and which don't. If you're buying or selling a property, a homebuyers electrical report will include the board type as part of its findings. Knowing how your board is structured helps you understand what an electrician is telling you and whether any remedial recommendations are urgent or advisory.

The compliance picture has shifted

The 18th Edition of BS 7671, the wiring regulations that govern electrical installations in the UK, raised expectations for protection across all circuits. The 2022 Amendment 2 tightened requirements around RCD protection and Arc Fault Detection Devices (AFDDs) for new installations and substantial remedial work. A split load board, by design, leaves some circuits without RCD coverage, which is now considered a shortcoming rather than an acceptable configuration for new work.

This matters practically because an EICR on your property may return a C2 (potentially dangerous) or C3 (improvement recommended) code against a split load board, depending on its age, condition, and specific circuit configuration. Understanding that context puts you in a better position when an electrician recommends an upgrade.

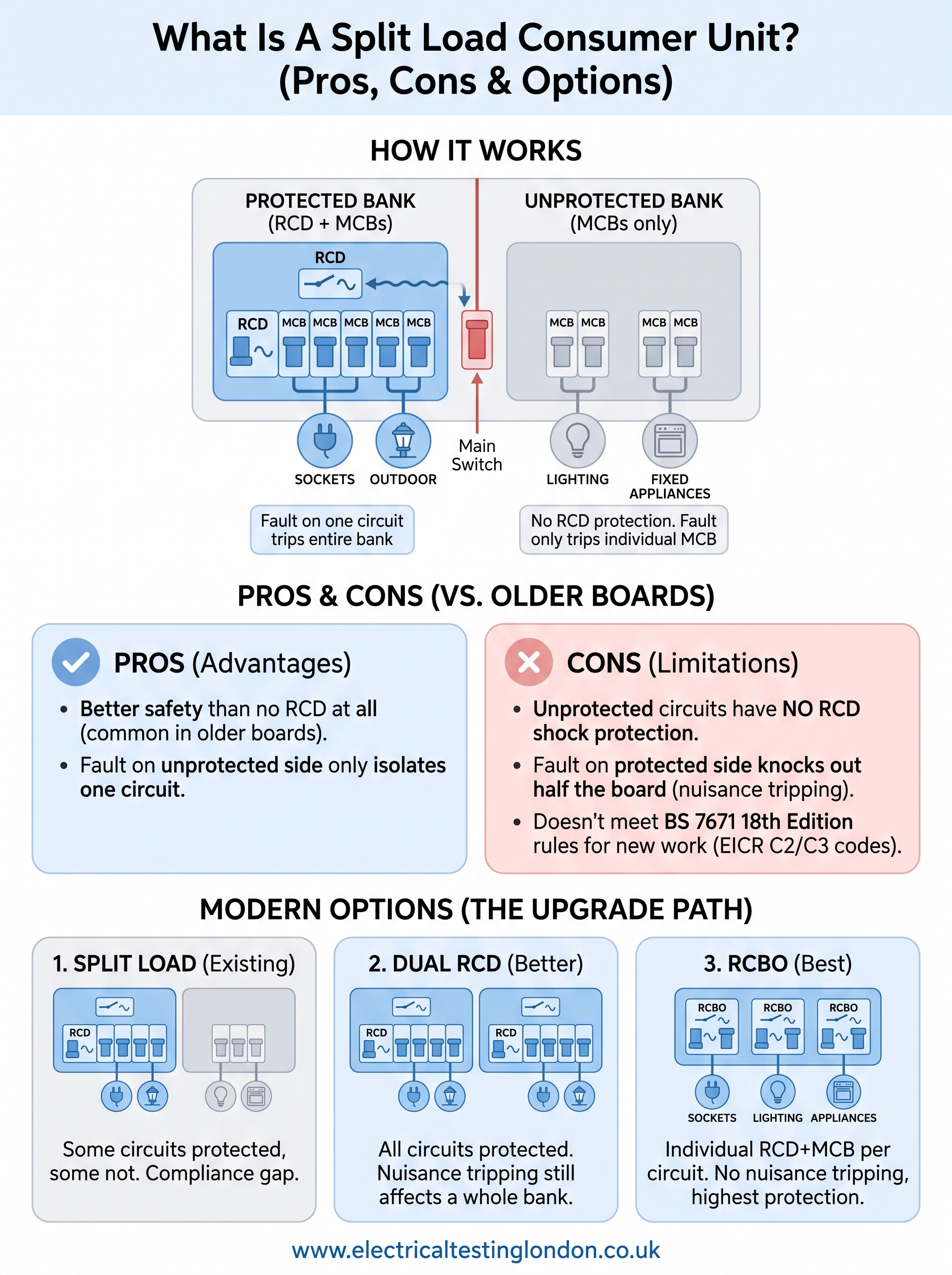

How a split load consumer unit works

A split load consumer unit divides its circuits into two separate banks, and that physical division is the defining feature of the board. One bank sits under the protection of a single Residual Current Device (RCD), while the other bank connects directly to the main switch with no RCD in the circuit path. Every circuit breaker (MCB) in the board controls an individual circuit, but only those on the protected side benefit from RCD coverage.

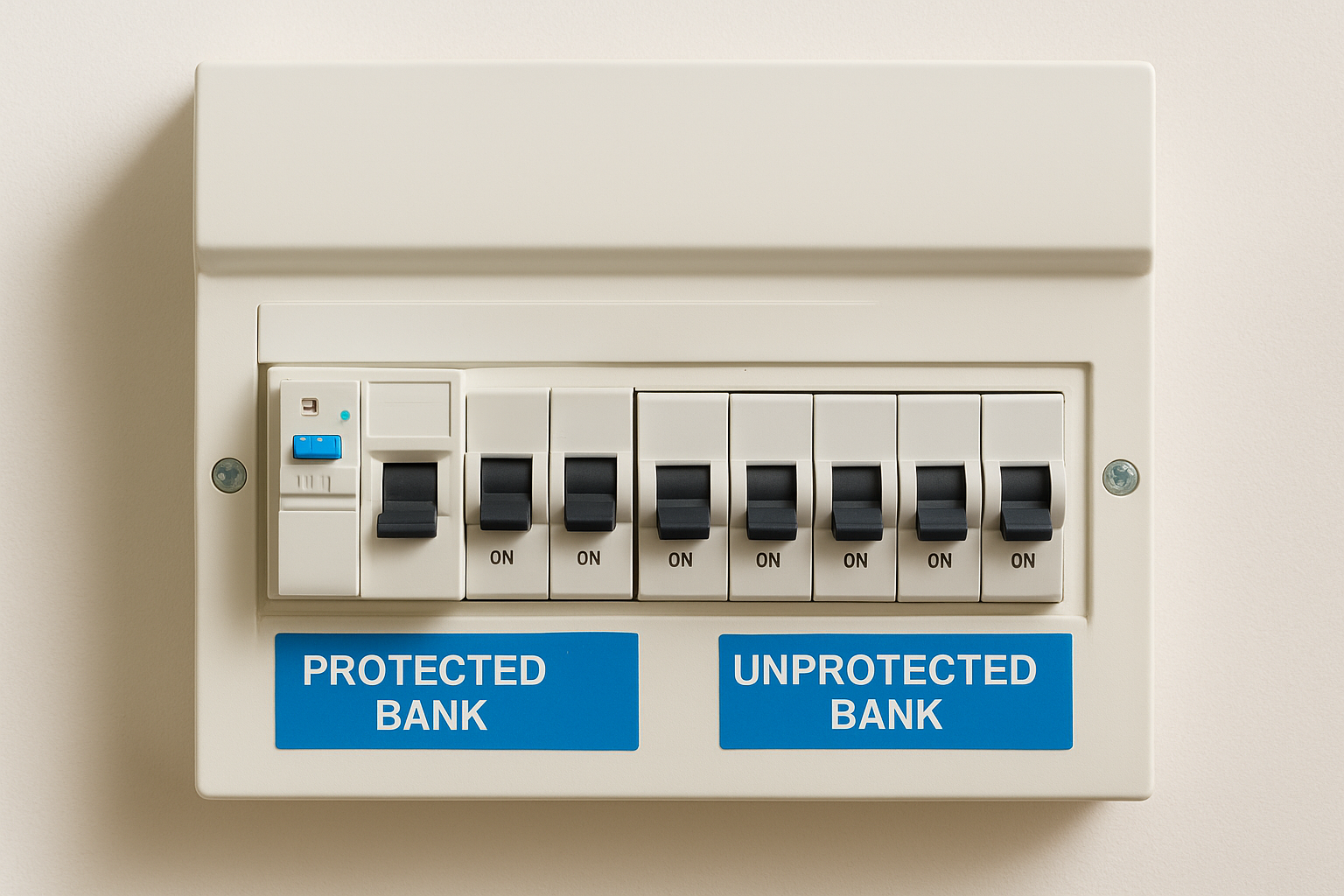

The two banks explained

The protected bank typically covers circuits where contact with live parts is more likely, such as socket outlets and outdoor circuits, because these carry the highest risk of electric shock to occupants. The unprotected bank usually carries lighting circuits and sometimes fixed appliances like a cooker or shower, based on the assumption that these circuits pose a lower risk of direct human contact. That logic made sense under older editions of the wiring regulations, but it is a significant weakness by today's standards.

If a fault develops on any circuit in the unprotected bank, the RCD cannot intervene, leaving only the MCB to respond.

How tripping and isolation work

When a fault occurs on a protected circuit, the RCD detects the current imbalance and trips within 40 milliseconds, cutting power to that entire bank. This is one of the practical downsides you will notice if your property has one of these boards: a single fault on one circuit knocks out every other circuit in that protected bank simultaneously. On the unprotected side, only the individual MCB for the faulty circuit trips, leaving all other unprotected circuits live regardless of the fault type.

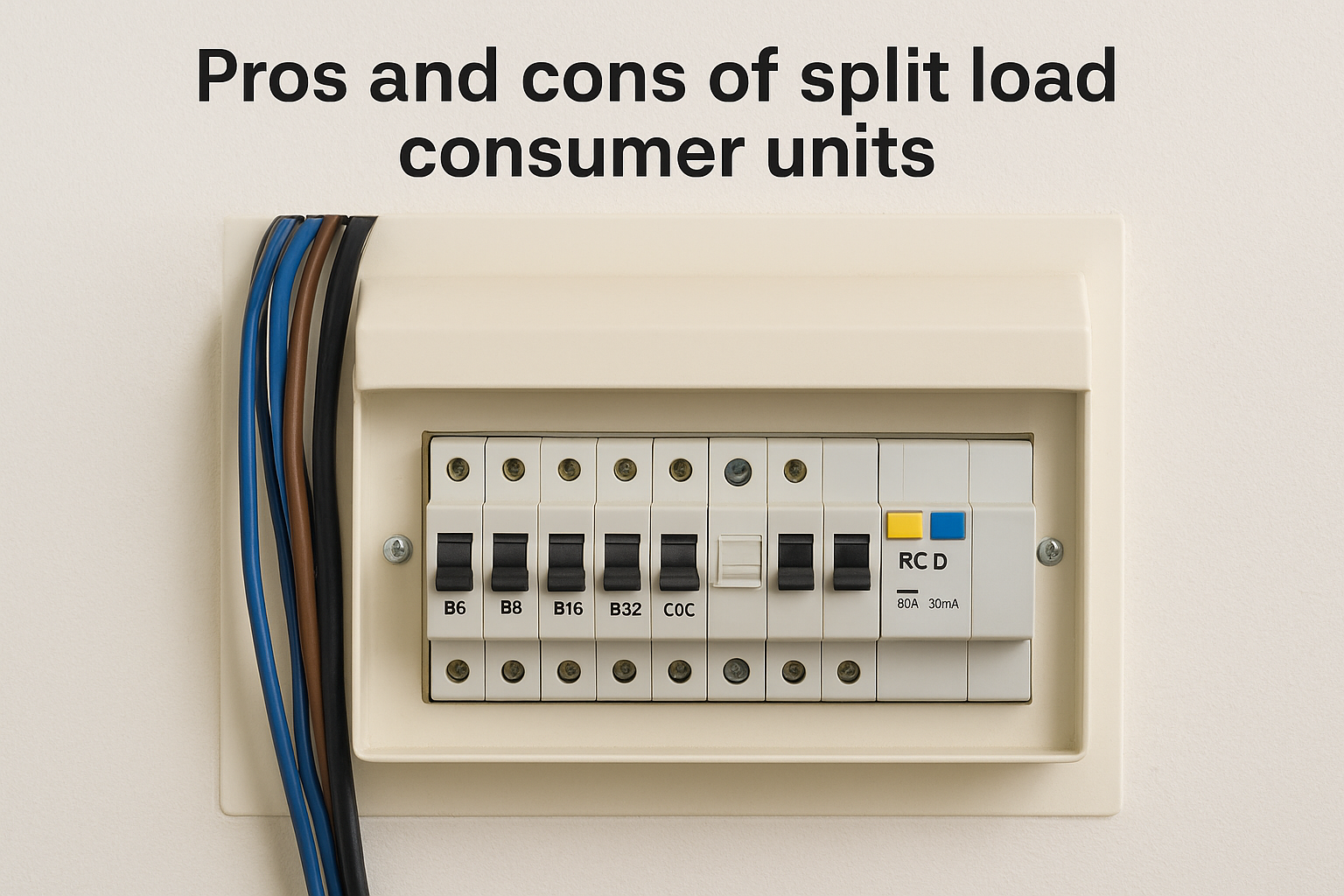

Pros and cons of split load consumer units

If you are trying to decide whether to keep or replace your current board, understanding what a split load consumer unit offers, and where it falls short, gives you a practical foundation for that decision. These boards are not inherently dangerous, but their design reflects electrical standards from a different era, and that gap matters when you are assessing risk or planning compliance work.

The advantages worth knowing

Split load consumer units offered genuine safety improvements over the rewirable fuse boards they replaced. The protected bank added meaningful RCD coverage to the highest-risk circuits, such as sockets, while the unprotected bank provided independent circuit isolation, meaning a fault on one unprotected circuit would not kill power to the rest of the property.

A split load board still provides better protection than a board with no RCD coverage at all, which remains a relevant point when comparing it against the very oldest installations.

The separate banks also meant nuisance tripping affected fewer circuits, since a fault on the unprotected side would only trip the individual MCB rather than taking out half the property at once.

Where the limitations become a problem

Your main concern is straightforward: circuits on the unprotected bank carry no RCD coverage. If a fault develops on a lighting circuit or fixed appliance circuit in that bank, there is no device to detect the current imbalance and disconnect within milliseconds. That gap in protection is why modern wiring regulations now expect full RCD or RCBO coverage across every circuit in a new or substantially upgraded installation.

You also face a nuisance tripping issue on the protected side, where a single fault knocks out every circuit in that bank simultaneously, which is disruptive in any occupied property and particularly problematic in commercial premises.

Is a split load board still compliant in 2026

The short answer is: it depends on the context. A split load consumer unit installed correctly under the regulations in force at the time is not automatically illegal in 2026, but it will not meet the requirements for a new installation or substantial upgrade today. The 18th Edition of BS 7671, particularly Amendment 2 published in 2022, now requires RCD protection on all circuits in new domestic installations, which a split load board cannot provide by design.

What BS 7671 says about existing boards

BS 7671 does not require you to immediately replace every split load board in an existing property purely because the regulations have moved on. The principle in the regulations is that an installation is assessed against the edition current at the time it was installed, provided no significant changes have been made since. That gives existing split load boards a degree of continued acceptance, but it does not mean they are without risk.

If your installation requires substantial remedial work or circuit additions, the electrician carrying out that work must bring affected parts of the installation up to the current standard, which means RCD protection across those circuits.

When an EICR flags your board

During an Electrical Installation Condition Report inspection, the assessor evaluates your board against current safety expectations, not just the regulations in force when it was installed. A split load consumer unit with circuits carrying no RCD protection will typically receive a C2 or C3 code depending on the age of the installation, the specific circuits involved, and any deterioration found. Understanding what is a split load consumer unit helps you interpret those codes accurately rather than treating every observation as an emergency, while still taking genuine compliance gaps seriously.

Split load vs dual RCD vs RCBO options

Once you understand what is a split load consumer unit, comparing it against the two main alternatives helps you make a clear decision about what your property actually needs. Each board type handles RCD protection differently, and those differences have direct consequences for safety, convenience, and compliance.

Dual RCD boards

A dual RCD consumer unit splits all circuits into two equally protected banks, each controlled by its own RCD. Every circuit in the board carries RCD protection, which removes the compliance gap that a split load board carries. The limitation is that a fault on one circuit still trips the entire bank it belongs to, knocking out several circuits simultaneously rather than just the one affected.

A dual RCD board is a meaningful upgrade over a split load unit, but it still carries the nuisance tripping problem that affects occupied properties.

This matters most in rental properties or commercial premises where losing multiple circuits at once causes disruption and potential safety concerns for occupants.

RCBO consumer units

An RCBO (Residual Current Breaker with Overcurrent protection) board gives every individual circuit its own combined RCD and MCB in a single device. When a fault develops, only the circuit directly affected trips, leaving every other circuit in the board completely unaffected and live. This is the setup the 18th Edition of BS 7671 points toward for new domestic installations, and it represents the highest level of circuit-by-circuit protection currently available.

The practical benefit for landlords and property managers is straightforward: a fault on one circuit does not cut power to your tenant's kitchen, hallway, or security lighting simultaneously. RCBO boards cost more to install than dual RCD units, but the reduction in nuisance tripping and the improved compliance position makes them the right long-term choice for most properties.

What to do next in your property

Now that you understand what is a split load consumer unit and how it compares to modern alternatives, the practical step is to find out exactly what board you have and what condition it is in. If you do not already have a recent Electrical Installation Condition Report for your property, that is the logical starting point. An EICR will tell you whether your board carries any observable defects, which circuits lack RCD protection, and whether any observations require action before your next inspection or tenancy.

If your report flags the board or you already know it needs replacing, choosing between a dual RCD and a full RCBO board depends on your budget, the age of the rest of your installation, and how much disruption nuisance tripping causes your occupants. Getting a clear quote from a qualified engineer removes the guesswork. Request a quote for your electrical inspection or consumer unit upgrade and we will assess your property and recommend the right option for your situation.
