What Is An RCD Consumer Unit? How It Works & Identifying It
If you've ever opened your fuse box and wondered what is an RCD consumer unit, you're not alone. It's one of the most common questions we hear from homeowners and landlords across London when they book an electrical inspection with us. The short answer: it's a type of consumer unit that uses Residual Current Devices (RCDs) to cut the power when they detect an earth fault, the kind of fault that can cause electric shocks or fires.
But there's more to it than a one-line definition. RCDs sit alongside MCBs and RCBOs inside your consumer unit, and knowing which components your board actually contains matters, especially when it comes to compliance and safety. At Electrical Testing London, our engineers assess consumer units daily during EICRs and remedial works, so we see firsthand how much confusion surrounds these terms.
This article breaks down exactly how an RCD consumer unit works, how to identify one in your home, and how it compares to other protective devices you might find on your board.

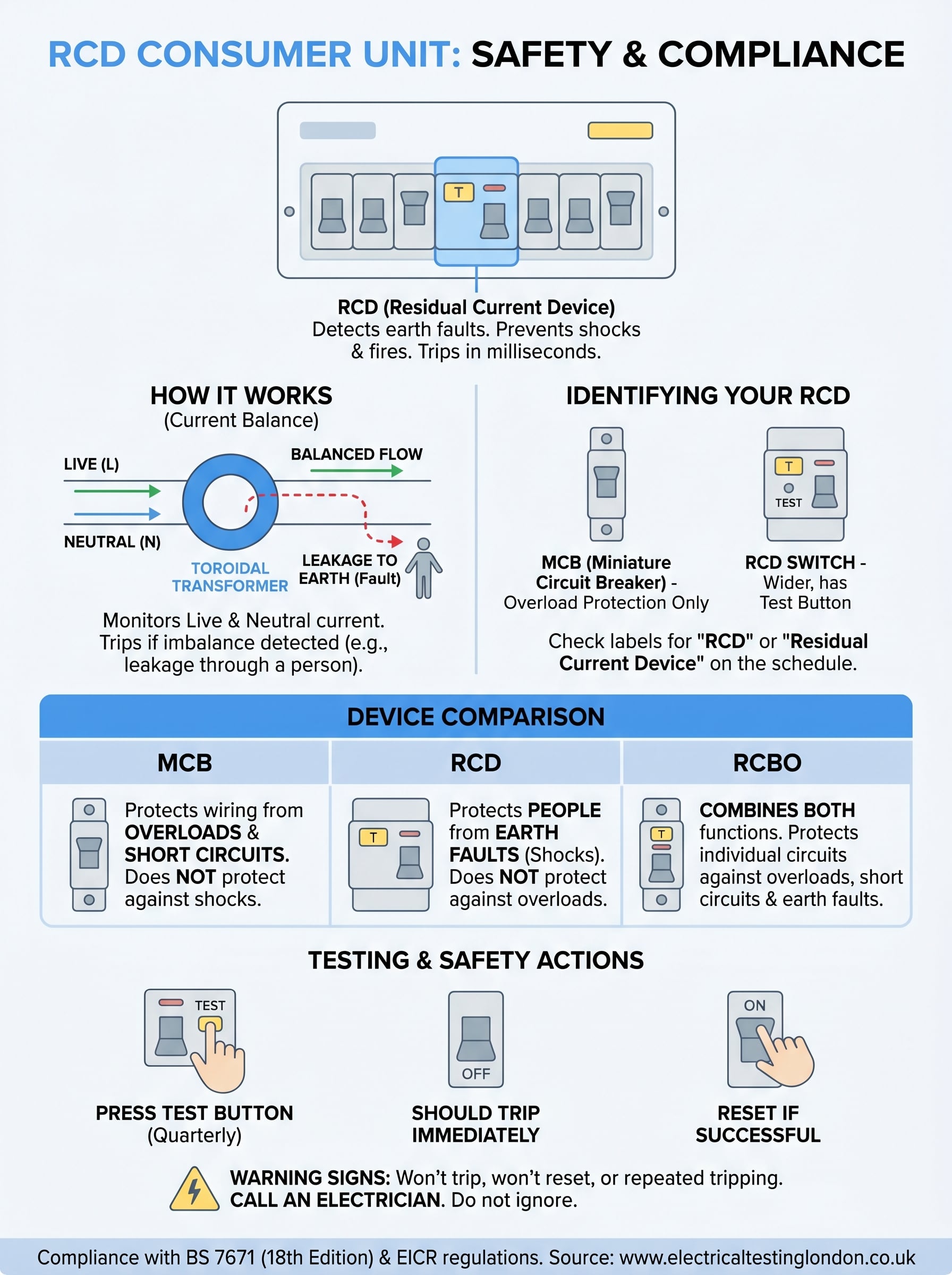

Why RCD consumer units matter for safety and compliance
Understanding what is an RCD consumer unit goes beyond knowing the name on the tin. Electrical faults in UK homes and commercial premises cause hundreds of serious injuries and deaths every year, and a significant number of those incidents involve either the absence of RCD protection or a protection device that hasn't been properly maintained. An RCD consumer unit is the first and most critical line of defence your electrical installation has against two of the most dangerous outcomes: electric shock and electrical fire.
The risk of electrical faults in UK homes
When electricity leaks from a circuit, it takes the path of least resistance, and that path is often through a person. A current as small as 30 milliamps can stop a human heart. Standard fuses and circuit breakers are designed to protect wiring from overloads, but they are not fast enough to protect you from a shock. An RCD, on the other hand, can detect a leakage current and disconnect the power in as little as 25 milliseconds, before a fatal dose reaches your body.
Without RCD protection, a faulty appliance, a damaged cable behind a wall, or even a DIY error can turn a live circuit into a life-threatening hazard with no warning at all.
Fire is the other major risk. Earth faults that don't trip a standard breaker can generate sustained heat inside walls or in consumer units themselves, igniting insulation and structural materials over time. Older properties in London are particularly vulnerable because their wiring may not have been updated to accommodate modern appliance loads.
Legal requirements for landlords and property owners
If you rent out a property in England, the Electrical Safety Standards in the Private Rented Sector (England) Regulations 2020 require you to have a valid EICR carried out every five years. These regulations specifically expect electrical installations to meet the 18th Edition of the Wiring Regulations (BS 7671), which recommends full RCD protection across all circuits. A consumer unit without adequate RCD coverage will almost certainly result in a C2 unsatisfactory code on your EICR, meaning remedial work is required before you can issue the certificate to your tenants.
For commercial premises, the Health and Safety at Work Act 1974 places a legal duty on employers and property owners to maintain safe electrical systems. Failing an inspection due to insufficient RCD protection can trigger enforcement action from the Health and Safety Executive.
How an RCD consumer unit works in plain English
To understand what is an RCD consumer unit, you need to grasp one core idea: electricity that leaves a circuit must return to it. In a healthy circuit, the current flowing out through the live wire exactly matches the current returning through the neutral wire. An RCD monitors this balance continuously, and the moment it detects a difference, it acts.

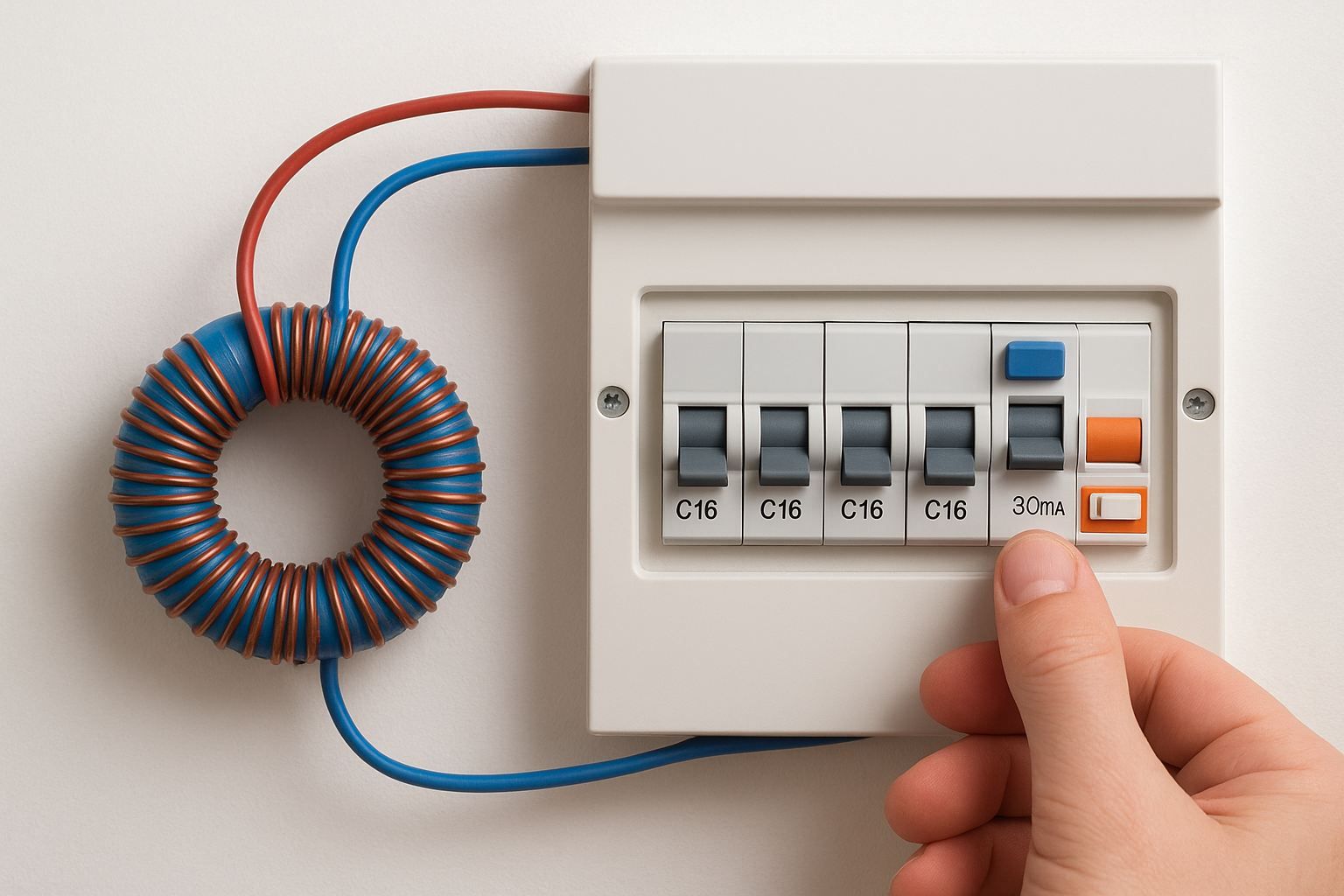

The role of current balance in RCD protection
Your RCD measures the difference between the outgoing and returning current using a toroidal transformer, a coil that wraps around both the live and neutral conductors. Under normal conditions, the magnetic fields generated by both conductors cancel each other out. When a fault develops, such as a person touching a live wire or a damaged cable leaking current into surrounding materials, some of that current escapes to earth instead of returning through the neutral. The toroidal transformer detects the imbalance and triggers the switch mechanism.
A standard domestic RCD trips when it detects a leakage current of just 30 milliamps, a level low enough to protect a person from cardiac arrest.
What happens when the RCD trips
When the imbalance threshold is crossed, the RCD's internal relay opens the switch contacts and cuts the power to that part of the circuit in around 25 to 40 milliseconds. You will notice the relevant RCD switch on your consumer unit flick to the off position. This is not a fault in the RCD itself; it means your device has done exactly what it was designed to do. Resetting the RCD without identifying the underlying fault is unsafe, and you should contact a qualified electrician before restoring power to that circuit.
How to identify an RCD consumer unit in your fuse box
Most people open their consumer unit and see a row of switches without knowing which ones are which. Understanding what is an RCD consumer unit starts with being able to recognise it on your board. RCD switches are wider than standard circuit breakers and typically feature a small test button labelled "T" or "Test" on the front face.
What the physical switches look like

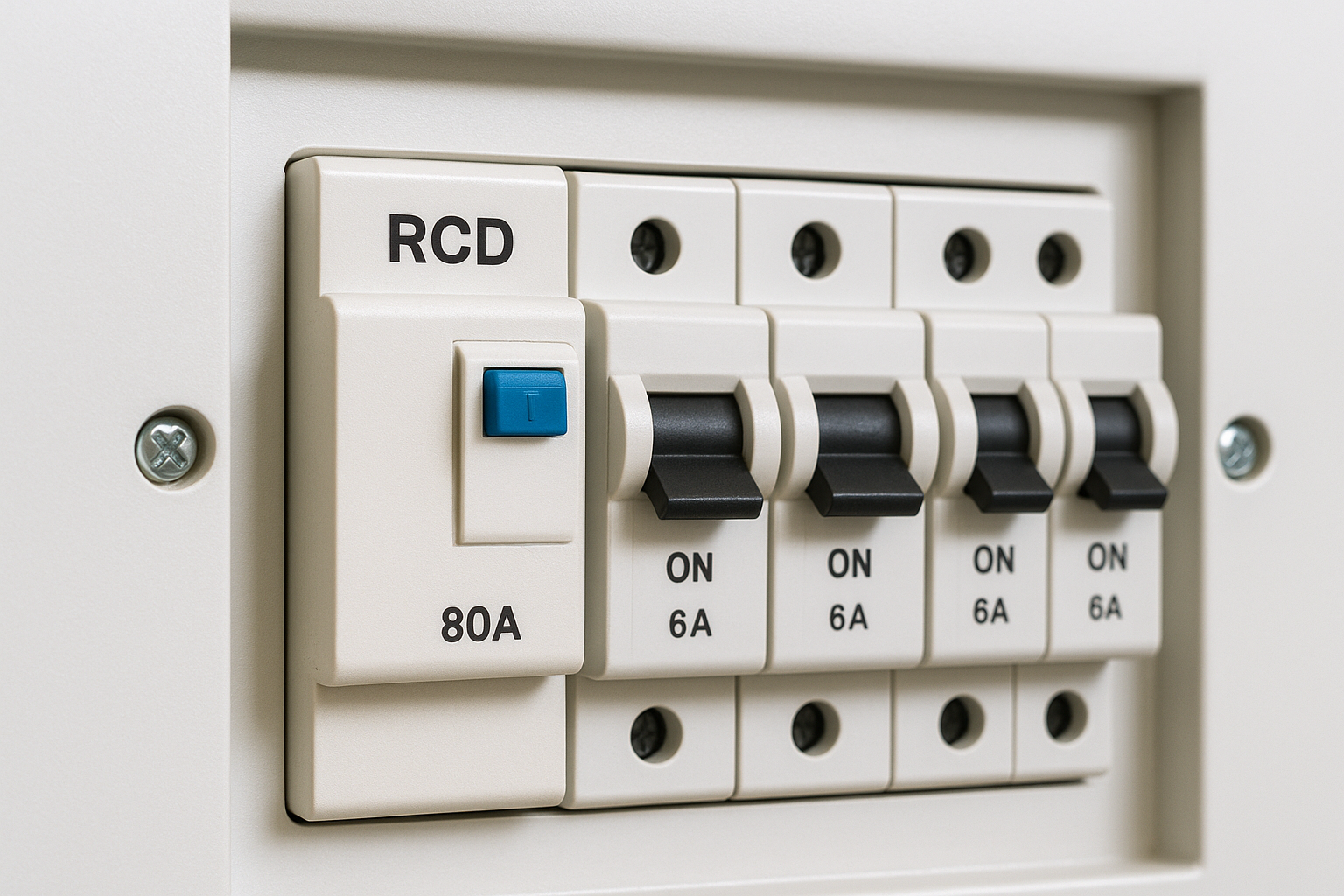

RCDs are noticeably bulkier than MCBs and usually span the width of two standard breaker slots. They are most commonly white or off-white in colour, though older units may be beige or cream. The test button is the clearest identifier: press it and the switch should immediately drop to the off position. If it does not trip, the RCD may have failed and needs professional attention.
An RCD that refuses to trip during a test is no longer providing protection, even if it looks perfectly normal from the outside.
Reading the labels on your consumer unit
Your consumer unit's cover or inner panel should carry a circuit schedule, a list that identifies each switch by circuit name and device type. Look for labels marked "RCD" alongside amperage ratings such as 63A or 80A.
If your board lacks any clear labelling, or if the schedule is missing entirely, contact a qualified electrician to carry out a full inspection. Unlabelled boards make fault-finding slower and considerably more dangerous in an emergency.
RCD vs RCBO vs MCB in a consumer unit
Once you understand what is an RCD consumer unit, the next step is knowing how an RCD differs from the other devices sharing space on your board. Miniature Circuit Breakers (MCBs) and Residual Current Breakers with Overcurrent protection (RCBOs) both look similar to an RCD at a glance, but they perform different jobs and offer different levels of protection to the circuits in your property.
What an MCB does differently
An MCB protects your wiring from overcurrent and short circuits, not from earth faults. If you run too many appliances on a single circuit or a direct short occurs, the MCB trips and disconnects the power to prevent the cable from overheating. What it cannot do is detect the small leakage currents that cause electric shocks. MCBs have no test button and do not respond to the kind of fault that puts a person at risk.
Where RCBOs fit in
RCBOs combine the functions of both an MCB and an RCD into a single compact device. Each RCBO protects one individual circuit against both overcurrent and earth fault leakage, which means a fault on that circuit trips only that one breaker rather than cutting power to an entire group of circuits. This matters practically because losing power to multiple rooms at once causes far more disruption than a single circuit going down.
A board fitted with RCBOs on every circuit gives you the most granular protection available, because each circuit operates completely independently.
The right combination of these devices for your property depends on your installation's age, load, and layout, which is exactly what an EICR will tell you.
Testing, tripping, and when to call an electrician
Knowing what is an RCD consumer unit is only useful if you also know how to check it is working. RCDs require regular manual testing to confirm the trip mechanism is still operational, because internal components can seize over time without any visible sign of deterioration. The recommended testing frequency is at least every three months for domestic installations.
How to test your RCD safely
Testing your RCD takes less than a minute. Press the test button on the face of the device firmly, and the switch should immediately drop to the off or tripped position. Once you have confirmed it has tripped, switch it back to the on position to restore power. That is the full test. If the RCD does not trip when you press the button, stop using the circuits it protects and contact a qualified electrician immediately.
An RCD that passes a button test is not the same as one that has been professionally tested with calibrated equipment, which measures exact trip times and leakage thresholds.
When nuisance tripping becomes a warning sign
Your RCD will sometimes trip without an obvious cause. A single unexplained trip can result from a brief fault in a connected appliance, which may no longer be present. However, if your RCD trips repeatedly on the same circuit, that pattern points to a persistent earth fault that needs investigation rather than repeated resetting.
Situations that require a qualified electrician
Call a professional if your RCD will not reset after tripping, if it trips the moment you plug in a specific appliance, or if your board has no RCD protection at all. These situations go beyond routine maintenance and require a formal EICR inspection to identify the underlying cause safely.
Next steps for a safer consumer unit
Now that you understand what is an RCD consumer unit and how it protects your home or property, the practical next step is confirming your board actually provides the coverage it should. Many consumer units across London, particularly in properties built or last rewired before 2008, carry partial or outdated RCD protection that no longer meets current BS 7671 standards. A board that looks fine from the outside can still leave circuits exposed.
The most reliable way to know where you stand is to book an Electrical Installation Condition Report (EICR) with a qualified engineer. Our team at Electrical Testing London carries out EICRs on domestic and commercial properties across London and the South East, identifying exactly which circuits have RCD protection, which do not, and what remedial work is needed to bring your installation up to standard. Request a quote for an EICR inspection and get a clear picture of your electrical safety today.
