What Is Earthing And Bonding? Key Differences Explained
Every electrical installation in your home or workplace relies on two protective measures that most people never think about until something goes wrong. What is earthing and bonding, exactly? They're the safety systems built into your wiring that prevent electric shocks and reduce the risk of electrical fires, and understanding them matters more than you might expect.
Both earthing and bonding serve distinct but complementary roles in keeping you safe. When one fails or is missing altogether, the consequences can be serious. Faulty earthing and absent bonding are among the most common defects we identify during Electrical Installation Condition Reports (EICRs) across London and the South East. At Electrical Testing London, our engineers encounter these issues regularly in older properties, DIY installations, and systems that simply haven't been inspected in years.
This article breaks down how earthing and bonding actually work, explains the key differences between them, and covers what the current UK regulations require. Whether you're a homeowner, a landlord preparing for a compliance check, or a commercial property manager responsible for electrical safety across multiple sites, you'll walk away with a clear, practical understanding of both systems.
Why earthing and bonding matter for safety
When you ask what is earthing and bonding, the answer always comes back to one core purpose: protecting people from electric shock. Electricity follows the path of least resistance to the ground. Without earthing and bonding in place, that path can run straight through a person who touches a faulty appliance or a metal surface that has accidentally become live. The UK's electrical wiring regulations, set out in BS 7671 (the IET Wiring Regulations), make both systems mandatory precisely because they work together to prevent this.
Without proper earthing and bonding, a fault anywhere in your electrical system can make metal surfaces in your property live, turning everyday objects into shock hazards.
What happens when earthing or bonding fails
Faults in electrical systems are not rare. Insulation degrades over time, wiring connections loosen, and water ingress can compromise components in ways that aren't visible from the surface. When earthing fails, a fault current has nowhere safe to go. Instead of flowing harmlessly to earth and tripping your protective device, it builds up and waits for a person to create a path. The result can be a fatal electric shock from something as ordinary as a metal tap, a radiator, or an appliance casing.
Bonding failures carry their own risks. If the metal pipework in your bathroom, kitchen, or utility room is not bonded to the same reference point, different metal surfaces can sit at different voltages. You complete the circuit simply by touching two of them at once. This is known as a touch voltage hazard, and it is far more common in properties where work has been carried out without proper supervision or in buildings where the original installation is decades old.
| Failure Type | Immediate Risk | Long-Term Consequence |
|---|---|---|
| Earthing fault | Electric shock from live equipment | Fire risk from uncleared faults |
| Bonding fault | Touch voltage between metal surfaces | Persistent shock risk to occupants |
What the UK regulations require
BS 7671:2018 (updated 2022) sets out the exact requirements for both earthing and bonding in all UK electrical installations. Landlords in England are also bound by the Electrical Safety Standards in the Private Rented Sector Regulations 2020, which require a valid EICR every five years. These regulations exist because absent or deteriorated earthing and bonding are among the most frequently cited defects found during property inspections, and the consequences of ignoring them are well documented in electrical safety data.
Your EICR will specifically test and record the condition of your earthing arrangement and your bonding conductors. If either is found to be absent, deteriorated, or non-compliant, the inspector will issue a C1 (danger present) or C2 (potentially dangerous) classification, which requires you to take action before the installation can be confirmed as satisfactory.
What earthing is and how it works
Earthing connects your electrical installation to the ground, giving fault current a safe, low-resistance path away from people and equipment. When you consider what is earthing and bonding as a combined system, earthing is the foundational layer: it ensures that if a live conductor touches a metal casing, the current flows to earth rather than through anyone who contacts that casing. Your consumer unit's protective devices, such as fuses or RCDs, detect this fault current and disconnect the supply in milliseconds.
Earthing works because it deliberately creates a better path to ground than a person's body ever provides.

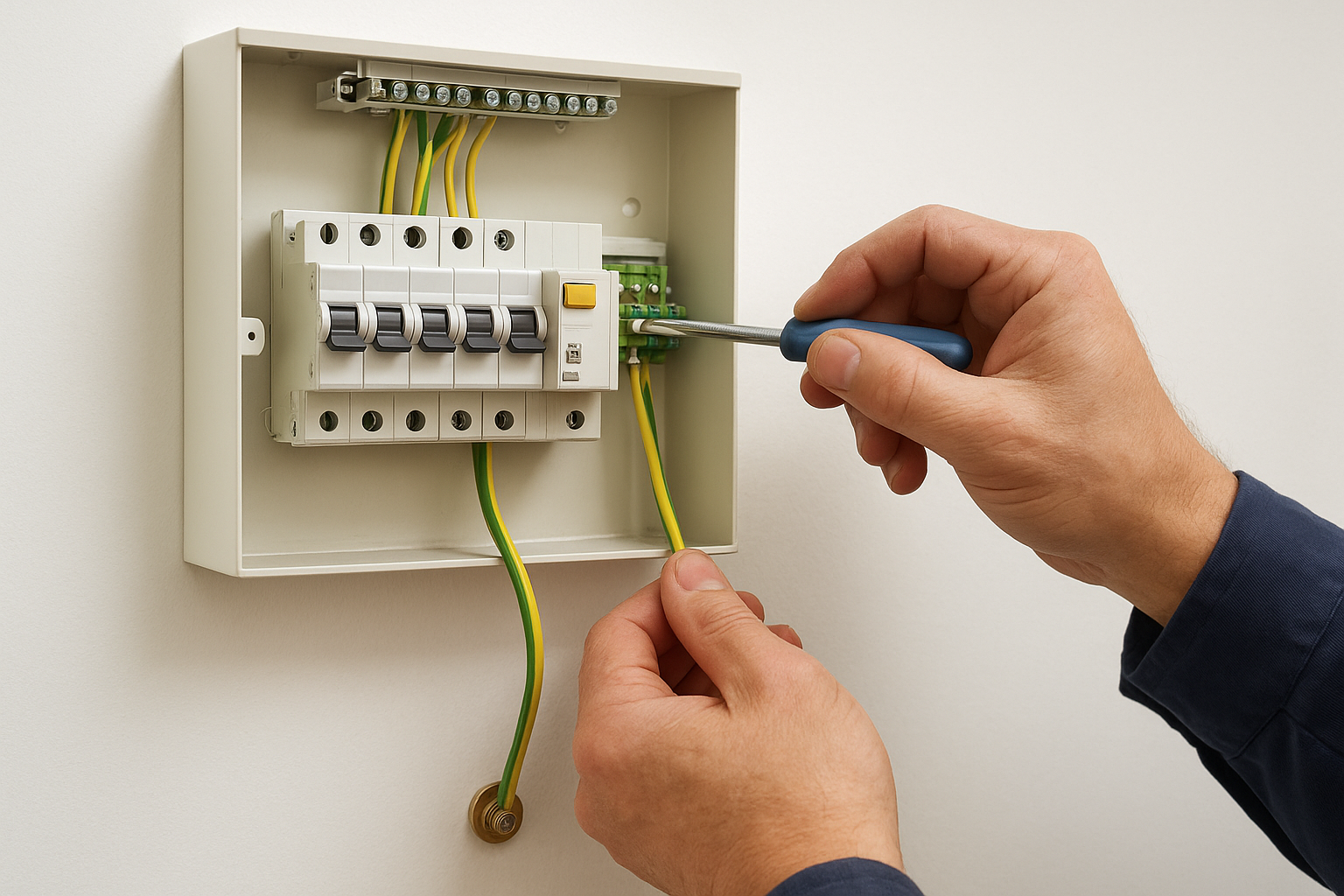

The earthing conductor and your consumer unit
Your installation's earthing system starts at the main earthing terminal inside your consumer unit. From there, an earthing conductor runs back to the incoming supply's earth point, which is provided by your distribution network operator (DNO). This connection determines your earthing system type, the most common in UK properties being TN-S, TN-C-S (also called PME), and TT.
Each system works differently, but all share the same goal: giving fault current an immediate, unimpeded return path. In a TT system, for instance, your property uses a local earth electrode driven into the ground rather than relying on the supplier's cable. This arrangement is typical in rural properties or older urban buildings where the supply infrastructure does not include an earth terminal. Your electrician identifies which system serves your property during an inspection, because the earthing arrangement directly affects which protective devices are appropriate and what impedance values are acceptable for your installation to be deemed compliant.
What bonding is and how it works
Bonding connects all exposed metalwork in your property to the same electrical reference point, ensuring no two metal surfaces hold different voltages. Where earthing deals with faults inside your electrical installation, bonding targets the metal services entering and running through your building, such as gas pipes, water pipes, and structural steelwork. Understanding both is central to grasping what is earthing and bonding as a unified safety strategy.
Bonding does not carry fault current away from your property; it ensures all metal surfaces around you sit at the same voltage, so touching them together cannot shock you.

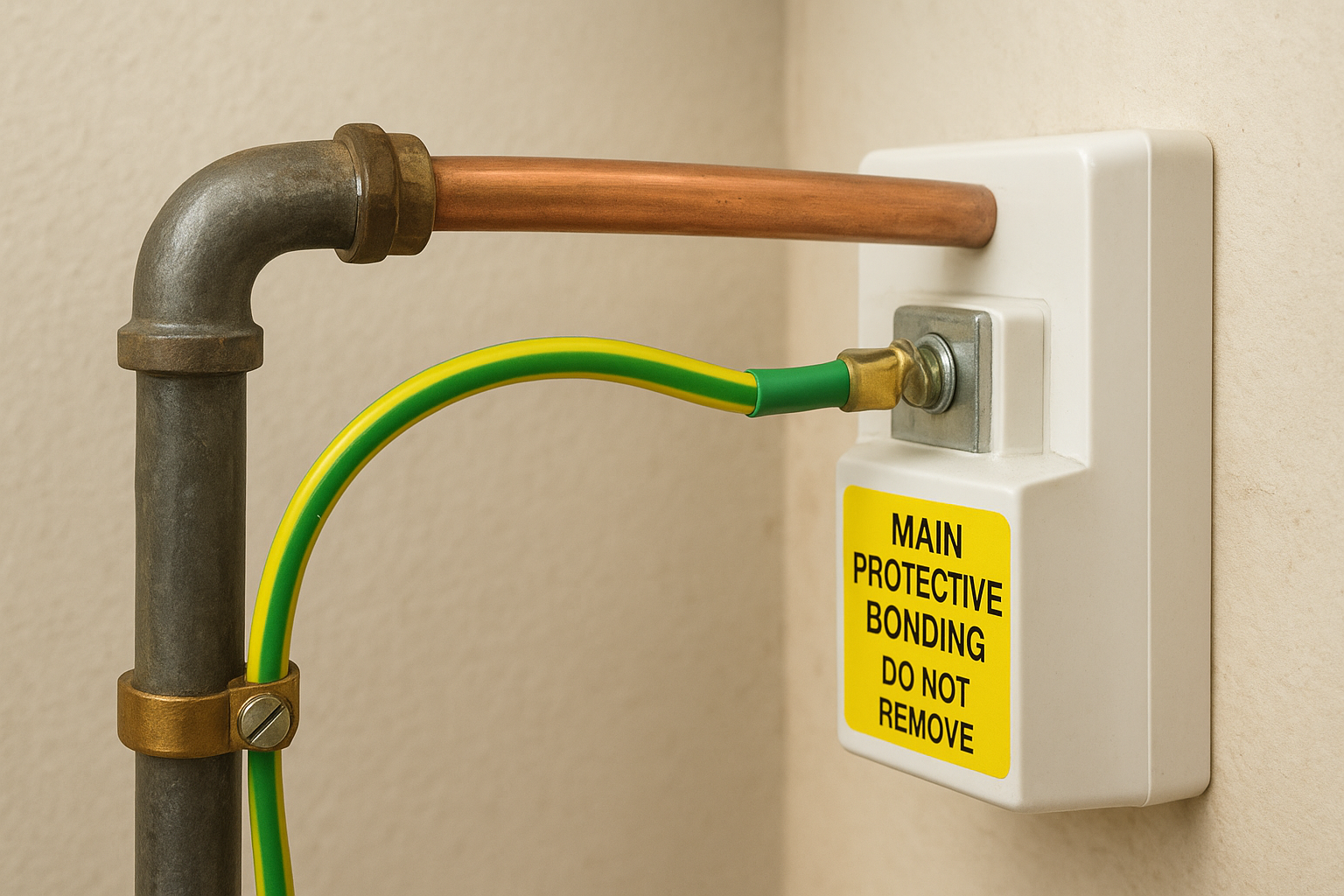

Main protective bonding
Main protective bonding connects incoming services to your main earthing terminal before they reach anywhere a person might contact them. Gas pipes, water supply pipes, and other metallic services entering your property must be bonded as close to the point of entry as practical. Bonding connections are identifiable by a green and yellow sleeve and a safety label warning against removal.
The required size of your bonding conductors depends on your earthing system type. Your electrician determines this during an inspection, because undersized conductors will not perform correctly under fault conditions and will result in a non-compliant installation.
Supplementary bonding in bathrooms and kitchens
In locations where water is present, supplementary bonding links metal parts within the room itself, including pipework, shower fittings, and baths, directly to each other. The 2022 amendments to BS 7671 allow supplementary bonding to be omitted where all circuits in that location are protected by RCDs, but a qualified electrician must verify this rather than assume it. Common locations requiring supplementary bonding include:
- Bathrooms and shower rooms
- Kitchens and utility rooms
- Swimming pools and spa areas
Earthing vs bonding: key differences and myths
Once you understand what is earthing and bonding individually, the distinction becomes straightforward: earthing handles fault current by giving it a controlled path back to the supply, while bonding equalises voltage across metal surfaces so no hazardous difference can develop between them. They operate at different points in your installation and protect against different risks, but both are mandatory under BS 7671 and cannot substitute for each other.
Removing either system from your installation does not reduce the risk by half; it eliminates two independent layers of protection that serve entirely different purposes.

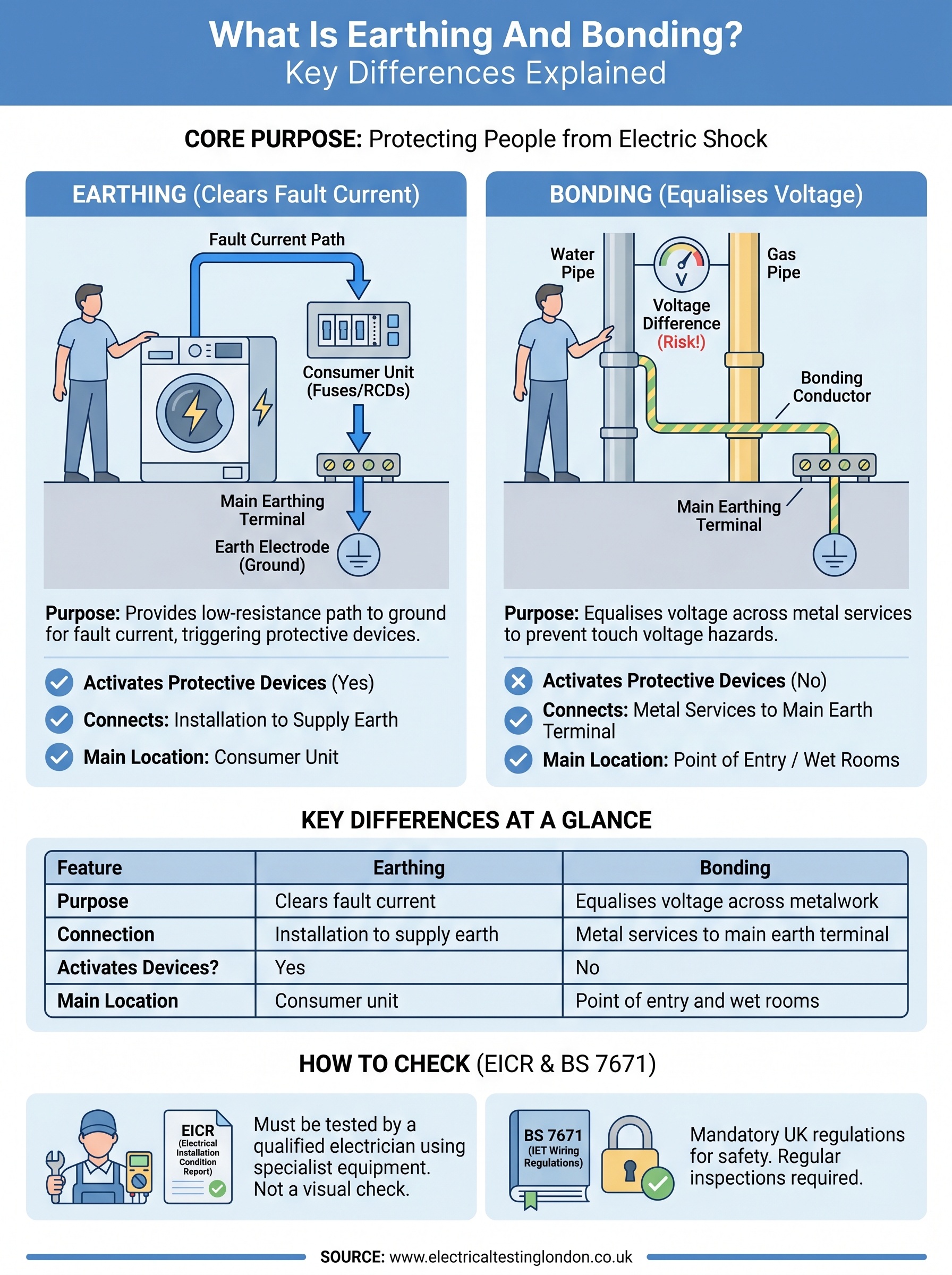

The core differences at a glance
People often assume earthing and bonding perform the same function because both use green and yellow conductors and both involve connecting metalwork. They do not. Earthing connects your installation back to the supply earth, triggering your protective devices when fault current flows. Bonding connects incoming metal services to your main earthing terminal, preventing touch voltage hazards that earthing alone cannot address. The table below separates the two clearly:
| Feature | Earthing | Bonding |
|---|---|---|
| Purpose | Clears fault current | Equalises voltage across metalwork |
| What it connects | Installation to supply earth | Metal services to main earth terminal |
| Activates protective devices | Yes | No |
| Main location | Consumer unit | Point of entry and wet rooms |
Common myths that lead to unsafe installations
The most persistent myth is that an RCD replaces the need for bonding. An RCD detects current imbalances and disconnects the supply, but it cannot eliminate touch voltage between unbonded metal surfaces before a fault event. Your RCD and your bonding conductors perform separate jobs, and one does not cover for the absence of the other. A second misunderstanding is that older properties are exempt from current bonding requirements. Any remedial work or formal inspection must still comply with BS 7671, and identified deficiencies require correction regardless of the property's age.
How to check earthing and bonding in your property
Understanding what is earthing and bonding at a conceptual level is useful, but knowing the condition of your own installation is what actually keeps you and your occupants safe. You cannot assess earthing and bonding effectively without specialist test equipment and training, so this is not a task for a visual inspection alone. A qualified electrician carries out formal testing using instruments that measure earth fault loop impedance and the continuity of bonding conductors against the limits set in BS 7671.
An EICR is the only reliable way to confirm that your earthing and bonding are present, correctly sized, and performing within the required limits.
What a qualified electrician tests
During an Electrical Installation Condition Report, the engineer will measure the earth fault loop impedance at your consumer unit and at multiple circuits throughout the installation. They will also verify that all main bonding conductors are connected, correctly sized for your earthing system type, and labelled appropriately. Any reading that falls outside the acceptable values in BS 7671 will result in a coded observation requiring remedial action. The key tests carried out include:
- Earth fault loop impedance measurements at the origin and final circuits
- Continuity of all protective and bonding conductors
- Verification of bonding conductor size and connection points
Signs that your earthing or bonding may be defective
You will not always see obvious warning signs, but certain indicators suggest your earthing or bonding needs professional attention. If your property has never had a [formal inspection](https://www.electricaltestinglondon.co.uk/blog/electrical-testing-and-commissioning-explained-for-the-uk), contains original wiring installed before 1980, or had electrical work carried out without a completion certificate, treat these as reasons to book an inspection without delay. Other indicators include:
- RCDs tripping repeatedly without an obvious cause
- A tingling sensation when touching metal fittings or appliances
- Visible corrosion or missing clamps on bonding conductors
Conclusion
Understanding what is earthing and bonding puts you in a far stronger position to protect your property and the people in it. Earthing gives fault current a safe return path and triggers your protective devices when something goes wrong. Bonding equalises voltage across the metal services in your building, removing the risk of touch voltage hazards that earthing alone cannot prevent. Both systems are mandatory under BS 7671, both degrade over time, and neither substitutes for the other.
If your property has not had a formal inspection recently, or if you recognise any of the warning signs covered in this article, do not wait for a fault to confirm your suspicions. A qualified engineer can test your earthing arrangement and bonding conductors properly, identify any deficiencies, and carry out the remedial work needed to bring your installation up to standard. Request a quote for an EICR or electrical safety inspection and get a clear picture of where your installation stands.
