What Is Thermal Imaging Inspection? Uses, Limits & Costs

Most electrical and building defects don't announce themselves until something goes wrong, a tripped circuit, a damp patch spreading across a ceiling, or an energy bill that keeps climbing. A thermal imaging inspection is one of the few methods that can detect these hidden issues before they escalate, using infrared technology to visualise temperature differences behind walls, inside distribution boards, and across building envelopes.

At Electrical Testing London, we carry out thermal imaging inspections across residential and commercial properties in London, Greater London, and the South East. Our engineers use this technology alongside our wider electrical testing services to give clients a clearer picture of what's happening inside their property, from overheating connections and insulation gaps to moisture ingress that isn't yet visible to the naked eye.

This article explains exactly how thermal imaging works, where it's most useful, what it can and can't reveal, and how much you should expect to pay. Whether you're a landlord checking a rental property, a homeowner investigating heat loss, or a business meeting compliance requirements, you'll find practical, straightforward answers to help you decide if a thermal imaging inspection is worth booking.

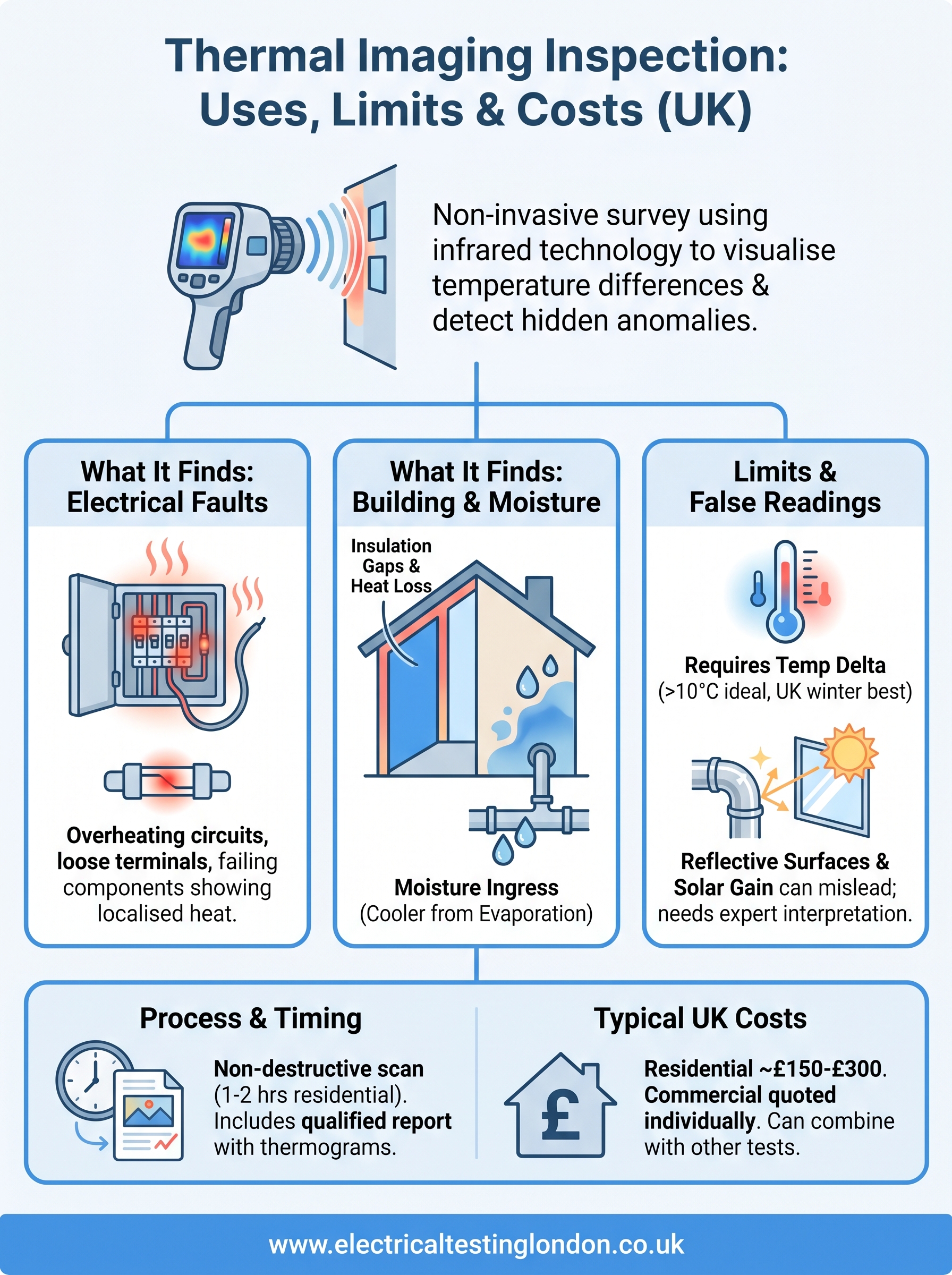

What thermal imaging inspection is

A thermal imaging inspection is a non-invasive survey that uses an infrared camera to measure and map surface temperatures across a building, electrical installation, or piece of equipment. Instead of relying on visible light, the camera detects infrared radiation emitted by every object, translating differences in heat into a colour-coded image called a thermogram. Cooler areas typically appear in blues and purples, while warmer areas shift through yellows, oranges, and reds, depending on the camera's colour palette.

How heat reveals hidden problems

When people ask what is thermal imaging inspection and why it matters, the core answer is this: temperature anomalies are symptoms. A failing electrical connection generates excess heat before it causes a fault. A gap in cavity wall insulation appears cooler than the surrounding area on a cold day. A water leak behind a partition wall shows up as an irregular cool patch as moisture evaporates and draws heat away from the surface.

The camera captures what the eye cannot: the heat fingerprint of faults that have not yet become visible damage.

These temperature signatures exist whether or not you can see the underlying problem directly. The thermal camera does not see through solid materials, but it reads the surface effect of what is happening behind them. That distinction matters because it explains both the power of the technology and its limits, which this article covers later.

What an inspection involves

You should expect a qualified engineer to arrive with a calibrated thermal imaging camera and, in most cases, a standard digital camera as well. The two images are compared side by side in the final report, so you can match each thermal anomaly to its exact physical location. Your engineer will scan relevant areas systematically, which may include the consumer unit, distribution boards, external walls, roof spaces, and any zones you've specifically flagged as concerns. The inspection is entirely non-destructive and requires no drilling, cutting, or moving of furniture.

Your written report includes annotated thermal images alongside a clear explanation of any anomalies found and their likely cause. Inspection length depends on the size and complexity of the property: a standard two-bedroom flat typically takes around 45 to 60 minutes, while a commercial unit or large residential property may require two to three hours to cover thoroughly.

How thermal cameras work in buildings

Thermal cameras do not use visible light. They detect infrared radiation, which every object emits continuously as a function of its temperature. The camera's sensor converts those emissions into electrical signals, which the onboard processor maps into a false-colour image where each colour corresponds to a specific temperature range. The result is a real-time visual display of surface temperature variation across whatever the camera is pointed at.

The physics behind infrared detection

Every material has a property called emissivity, which describes how efficiently it emits infrared radiation relative to a perfect theoretical emitter. Most building materials, including plaster, brick, timber, and insulation, have a high emissivity rating, which means they emit infrared radiation reliably and cameras read them accurately. Reflective surfaces such as bare metal or glass are trickier because they tend to reflect infrared from surrounding objects rather than emitting their own cleanly. A calibrated engineer accounts for this when interpreting results.

The camera reads emitted radiation, not reflected heat, which is why material type matters as much as temperature when producing an accurate thermogram.

Why building conditions affect accuracy

For the thermal difference to be measurable and meaningful, there needs to be a sufficient temperature delta between the inside and outside of the building. In practice, this means the best results come when the temperature difference is at least 10 degrees Celsius across the building envelope. In the UK, winter months provide ideal conditions for detecting insulation gaps and heat loss, while electrical faults generate enough localised heat to show up year-round regardless of external temperature.

What thermal imaging can find in homes and sites

When you research what is thermal imaging inspection, you're usually trying to understand what the technology actually reveals in practice. The answer covers a wide range of electrical, structural, and environmental issues, with the specific findings depending on the property type, the age of the installation, and how the survey is scoped.

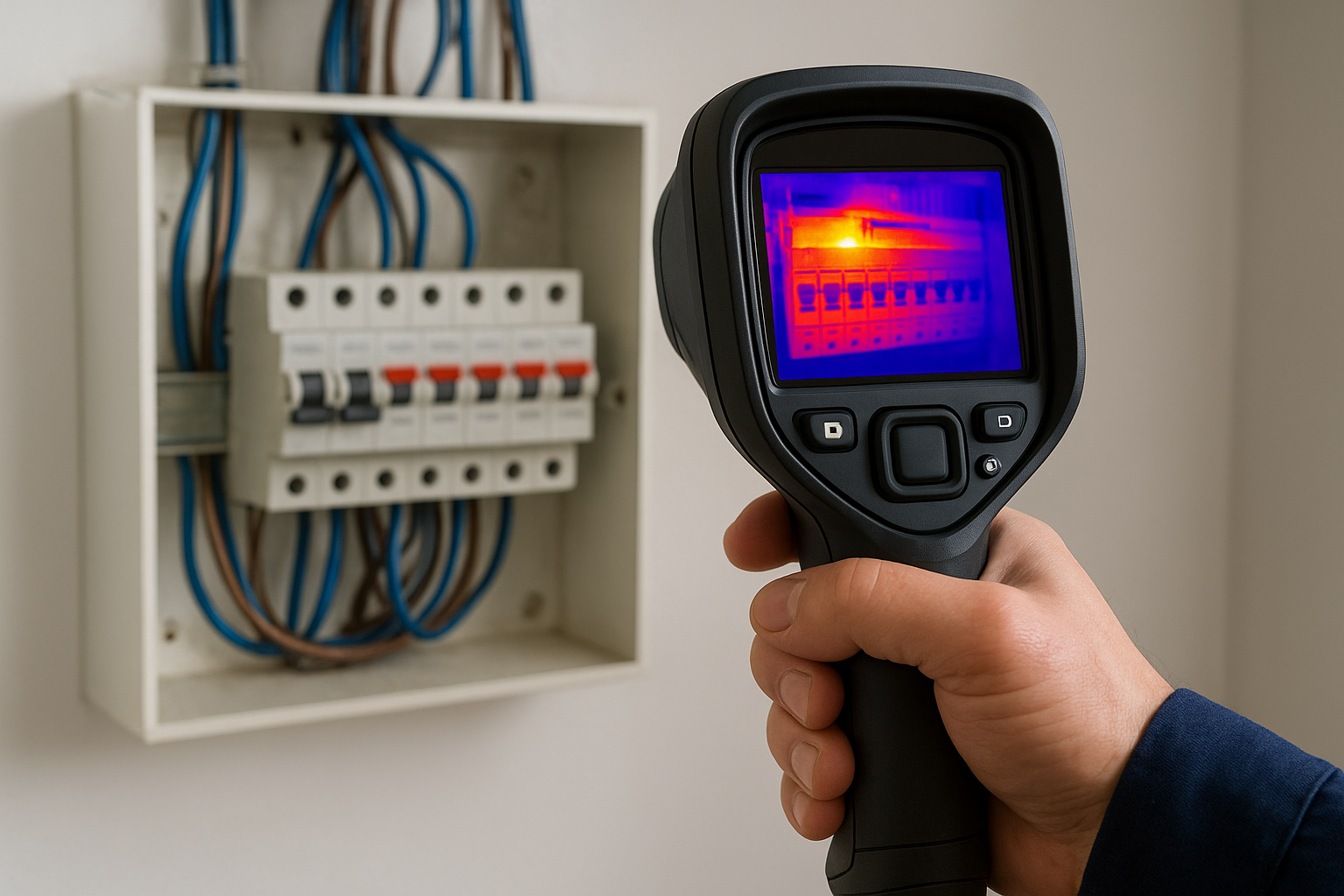

Electrical faults and overheating components

Thermal imaging is particularly effective at locating overloaded circuits, loose terminals, and failing components inside consumer units and distribution boards. These faults generate localised heat that registers clearly on a thermogram, often months before they trip a breaker or present a fire risk.

A hot connection inside a consumer unit can reach dangerous temperatures while looking completely normal from the outside.

Common electrical findings include:

• Loose or corroded terminals generating excess heat
• Overloaded individual circuits within a panel
• Failing MCBs or fuses showing temperature spikes
• Imbalanced loads across a three-phase commercial installation

Building fabric and moisture issues

For residential and commercial sites, thermal imaging picks up heat loss through insulation gaps and cold bridging at wall junctions, as well as moisture ingress from leaking pipes or roof defects. On a cold day, a poorly insulated section appears as a noticeably cooler patch against a warmer surrounding surface.

Water-damaged areas read cooler than dry sections because evaporation draws heat away from the surface. This makes the survey genuinely useful whether you're a homeowner dealing with rising energy costs, a landlord assessing older stock, or a facilities manager verifying that insulation was fitted correctly throughout a building.

Limits and common false readings

Understanding what is thermal imaging inspection, and where it stops being reliable, matters before you book a survey. The technology delivers surface temperature data, not a direct view inside a wall or conduit. Every finding requires interpretation by a qualified engineer who accounts for building physics, electrical load conditions, and the environmental factors present at the time of the scan.

When conditions undermine results

Thermal imaging depends on a meaningful temperature delta between inside and outside. In UK winters this works in your favour, but a mild summer day can flatten the contrast enough to make insulation gaps invisible on camera. Conditions that typically reduce accuracy include:

• Indoor and outdoor temperatures within 5 degrees of each other
• Buildings left unheated for several days before the survey
• Recent rainfall on external walls, which can mask underlying thermal patterns

Always confirm environmental conditions with your engineer before the survey date, so you know whether rescheduling would produce more reliable results.

Common sources of false readings

Reflective materials are a frequent cause of misleading thermograms. Bare metal pipework, polished fixings, and glass reflect infrared radiation from surrounding objects rather than emitting their own, making them appear warmer or cooler than they actually are.

Solar gain creates a similar problem. A south-facing wall that has absorbed direct sunlight for several hours retains residual heat that can look identical to a moisture issue or insulation defect on camera. Your engineer should note the time of day and sun exposure when capturing images in these areas, so the final report reflects the actual condition of the building rather than a temporary thermal effect.

Costs, timing and what to expect in the UK

If you're weighing up whether what is thermal imaging inspection is the right service for your property, pricing and logistics are usually the deciding factor. In the UK, thermal imaging surveys are priced based on property size and scope, with residential inspections typically sitting between £150 and £300, and commercial surveys starting higher depending on floor area and the number of systems being assessed.

What you'll typically pay

Residential properties such as flats and terraced houses tend to fall at the lower end of the pricing range, while larger detached homes or properties with more complex electrical installations attract higher fees. Commercial sites are generally quoted individually after a brief conversation about the size and nature of the premises.

Always confirm whether the quoted price includes a written report with annotated images, since some providers charge for the scan and the documentation separately.

Combined surveys, where thermal imaging is carried out alongside an EICR or PAT testing visit, often work out more cost-effective than booking each service separately.

When to book and how long it takes

Booking in autumn or winter gives you the best environmental conditions for detecting insulation defects and heat loss, because the temperature difference between inside and outside is most pronounced. Electrical fault finding works reliably throughout the year, since overheating connections generate their own localised heat regardless of external temperature.

For a standard two-bedroom flat, allow one to two hours on site. Larger commercial premises typically require a half-day visit, and your written report with annotated thermograms is usually delivered within two to three working days.

Key takeaways

What is thermal imaging inspection? It's a non-invasive survey that uses infrared cameras to detect surface temperature differences, revealing hidden electrical faults, insulation gaps, and moisture issues before they cause visible damage or costly repairs. The technology works because defects produce measurable heat signatures that a calibrated engineer can identify and document.

Results are only as reliable as the conditions allow. You'll get the most accurate findings on cold days with a strong temperature delta across the building envelope, and you should always confirm environmental conditions with your engineer before the survey date. Reflective materials and solar gain can produce false readings, which is why qualified interpretation matters as much as the camera itself.

For UK properties, residential surveys typically cost between £150 and £300, with commercial sites quoted individually. Combining thermal imaging with an EICR or PAT test on the same visit usually reduces the overall cost. Request a quote for your property to get accurate pricing for your specific site.
